RIEGLER Swivel safety coupling I.D. 11, ISO 6150 C, Steel, G 3/8 IT
Type number: 426.02-DREH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Swivel safety coupling NW 11, ISO 6150 C, steel, G 3/8 female thread, 2-stage, max. operating pressure 25 bar, temp. -20 °C to 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2100 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Galvanized steel, painted red |
| Threaded piece | Galvanized steel |
| Valve | Brass bright |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 38 mm |
| NW | 11 |
| Length | 80 mm |
| Connection | G 3/8 IG |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141777] RIEGLER Swivel safety coupling I.D. 11, ISO 6150 C, Steel, G 1/2 IT](/web/image/product.template/208375/image_128/%5B141777%5D%20RIEGLER%20Swivel%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Steel%2C%20G%201-2%20IT?unique=53d4042)
|
Type number: 426.03-DREH |
55.31 € | |

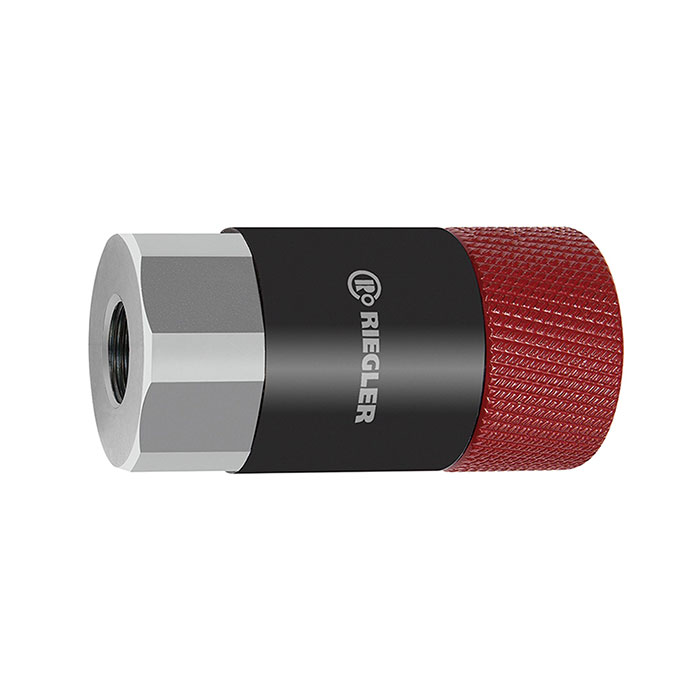

![[141778] RIEGLER Swivel safety coupling I.D. 11, ISO 6150 C, Steel, G 3/4 IT](/web/image/product.template/208376/image_128/%5B141778%5D%20RIEGLER%20Swivel%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Steel%2C%20G%203-4%20IT?unique=edb1b26)
|
