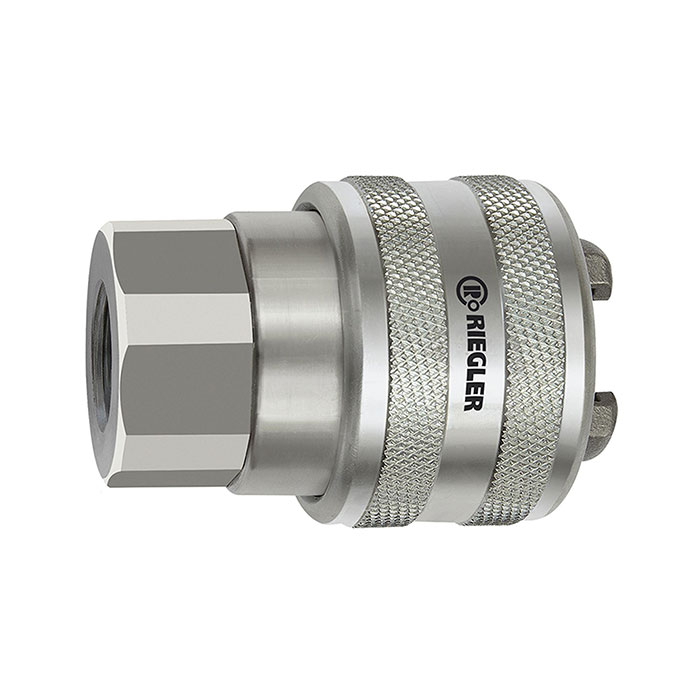

RIEGLER Swivel safety coupling I.D.11, heavy-duty series, Steel, G 3/8 IT
Type number: 426.02-DREH-S
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Swivel safety coupling I.D.11, heavy-duty series, Steel, G 3/8 IT, two-stage, Operating pressure max. 25 bar, Temp. -20°C to 100°C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2100 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Brass |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 36 mm |
| NW | 11 |
| Length | 75 mm |
| Connection | G 3/8 IG |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

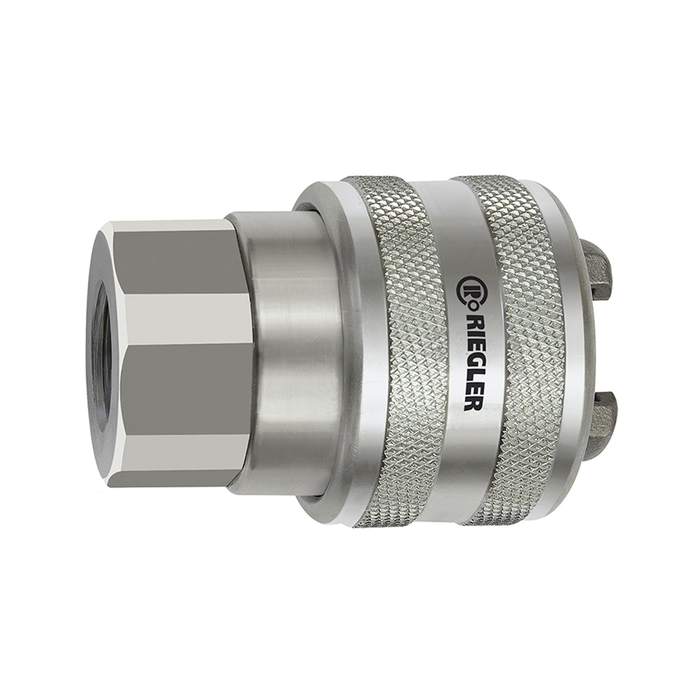

![[141799] RIEGLER Swivel safety coupling I.D.11, heavy-duty series, Steel, G 1/2 IT](/web/image/product.template/211206/image_128/%5B141799%5D%20RIEGLER%20Swivel%20safety%20coupling%20I.D.11%2C%20heavy-duty%20series%2C%20Steel%2C%20G%201-2%20IT?unique=b281f5e)
|
Type number: 426.03-DREH-S |
73.79 € | |
![[141800] RIEGLER Swivel safety coupling I.D.11, heavy-duty series, Steel, G 3/4 IT](/web/image/product.template/211207/image_128/%5B141800%5D%20RIEGLER%20Swivel%20safety%20coupling%20I.D.11%2C%20heavy-duty%20series%2C%20Steel%2C%20G%203-4%20IT?unique=165aeb7)
|
Type number: 426.04-DREH-S |
73.79 € | |
