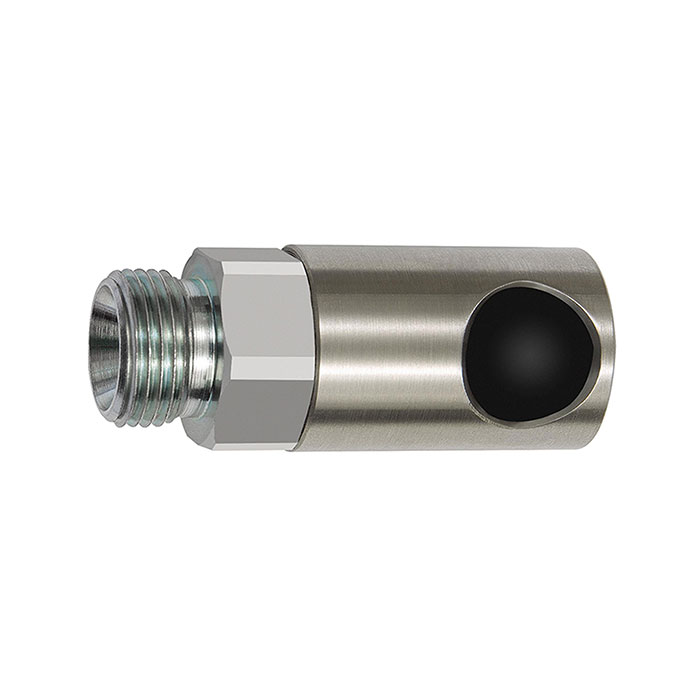

RIEGLER Pushbutton safety coupling I.D. 6, ISO 6150 C, G 3/8 ET
Type number: 406.13-ES
EAN: 4047322566841
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Push-button safety coupling NW 6, ISO 6150 C, stainless steel, G 3/8 AG, max. operating pressure 12 bar, temp. -20 °C to 200 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 12 bar |
| Flow rate | 1150 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Button | Stainless steel |
| SW | 20 mm |
| NW | 6 |
| Length | 54 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 AG |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
