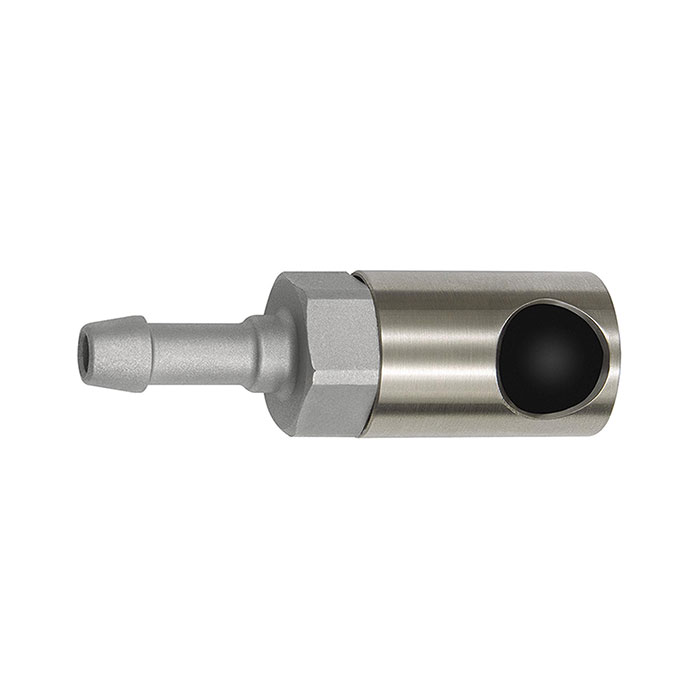

RIEGLER Pushbutton safety coupling I.D. 6, ISO 6150 C, Sleeve I.D. 13
Type number: 406.25-ES
EAN: 4047322566933
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Push-button safety coupling NW 6, ISO 6150 C, stainless steel, spout LW 13, max. operating pressure 12 bar, temp. -20 °C to 200 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 12 bar |
| Flow rate | 1150 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Button | Stainless steel |
| SW | 20 mm |
| NW | 6 |
| Length | 71 mm |
| Connection | LW 13 |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
