RIEGLER Pushbutton safety coupling I.D. 8, ISO 6150 C, Sleeve I.D. 9
Type number: 408.23-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel push-button safety coupling, for compressed air supply, max. 16 bar - Type 408.23-ES
The RIEGLER push-button safety coupling NW 8, ISO 6150 C, ES, grommet LW 9 disconnects the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of stainless steel with FKM seals. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 200 °C. Connection thread LW 9 - suitable for common industry standards. The flow rate is 2080 l/min (air) (at 6 bar and Δp = 1 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 16 bar |
| Flow rate | 2080 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Button | Stainless steel |
| SW | 25 mm |
| NW | 8 |
| Length | 86 mm |
| Connection | LW 9 |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141960] RIEGLER Pushbutton safety coupling I.D. 8, ISO 6150 C, Sleeve I.D. 10](/web/image/product.template/211333/image_128/%5B141960%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%2010?unique=d0b8c33)
|
Type number: 408.24-ES |
51.07 € | |
![[141961] RIEGLER Pushbutton safety coupling I.D. 8, ISO 6150 C, Sleeve I.D. 13](/web/image/product.template/211334/image_128/%5B141961%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%2013?unique=ee20841)
|
Type number: 408.25-ES |
51.07 € | |
![[141962] RIEGLER Pushbutton safety coupling I.D. 8, ISO 6150 C, Sleeve I.D. 16](/web/image/product.template/211335/image_128/%5B141962%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%2016?unique=e135dbf)
|
Type number: 408.26-ES |
51.07 € | |

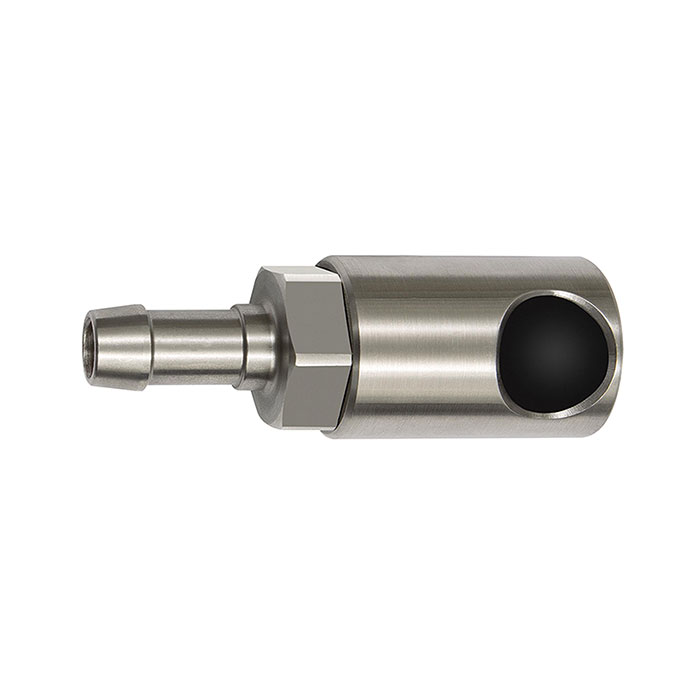

![[141958] RIEGLER Pushbutton safety coupling I.D. 8, ISO 6150 C, Sleeve I.D. 8](/web/image/product.template/211331/image_128/%5B141958%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%208?unique=0d12f4c)
|
