RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, G 1/2 ET
Type number: 411.13-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel push-button safety coupling, for compressed air supply, max. 16 bar - Type 411.13-ES
The RIEGLER push-button safety coupling NW 11, ISO 6150 C, ES, G 1/2 AG separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of stainless steel with FKM seals. Designed for a maximum operating pressure of 16 bar. The temperature range extends between -20 °C and 200 °C. Connection thread G 1/2 AG - suitable for common industry standards. The flow rate is 4500 l/min (air) (at 6 bar and Δp = 1 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 16 bar |
| Flow rate | 4500 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Button | Stainless steel |
| SW | 30 mm |
| NW | 11 |
| Length | 87 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 AG |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141982] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, G 3/4 ET](/web/image/product.template/211355/image_128/%5B141982%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20G%203-4%20ET?unique=2925a06)
|
Type number: 411.14-ES |
54.74 € | |

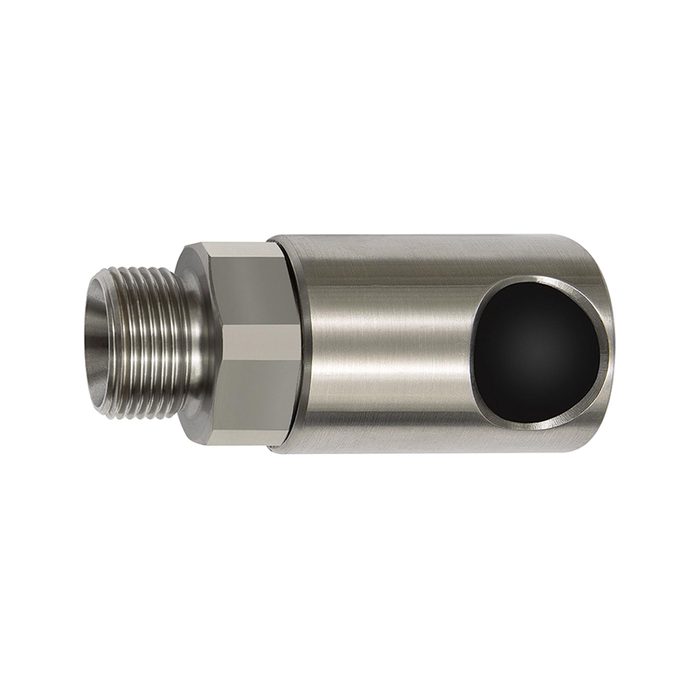

![[141980] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, G 3/8 ET](/web/image/product.template/211353/image_128/%5B141980%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20G%203-8%20ET?unique=b408f9b)
|
