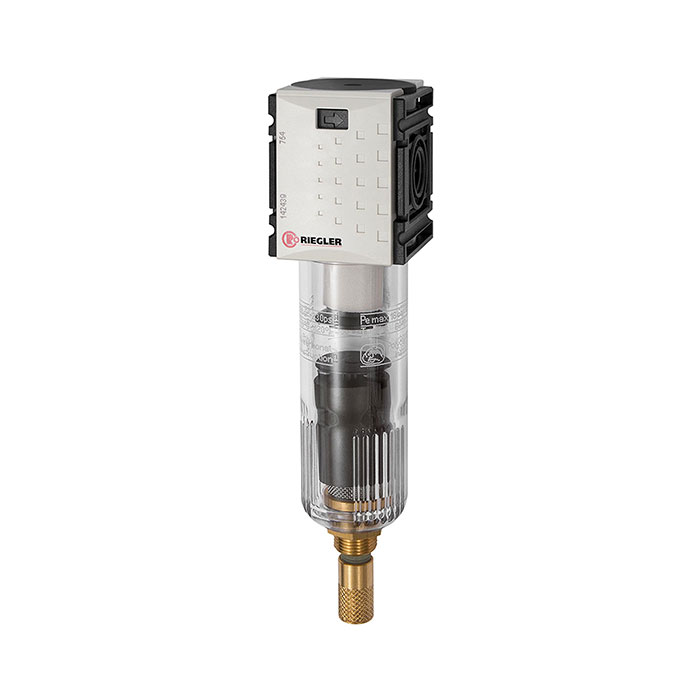

RIEGLER Filter »FUTURA-mini« PC container, Size 0, G 1/4, Fully-autom. NC
Type number: FUM 841-C
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER FUTURA-mini" filter with PC bowl made of PA66 GF60, for compressed air treatment, G 1/4 - type FUM 841-C
The RIEGLER "FUTURA-mini" filter with PC bowl, 5 µm, BG 0, G 1/4, VA-NC removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of PA66 GF60 with NBR seals. The maximum inlet pressure is 12 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 1000 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Container | Polycarbonate container |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1/4 |
| Flow rate | 1000 l/min |
| Condensate drain | fully automatic (pressureless closed) |
| BG | 0 |
| A | 43 mm |
| B | 170 mm |
| C | 27 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[142439] RIEGLER Filter »FUTURA-mini« PC container, Size 0, G 1/4, Fully-automatic](/web/image/product.template/210745/image_128/%5B142439%5D%20RIEGLER%20Filter%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C%20Fully-automatic?unique=fafc238)
|
Type number: FUM 841 |
53.79 € | |

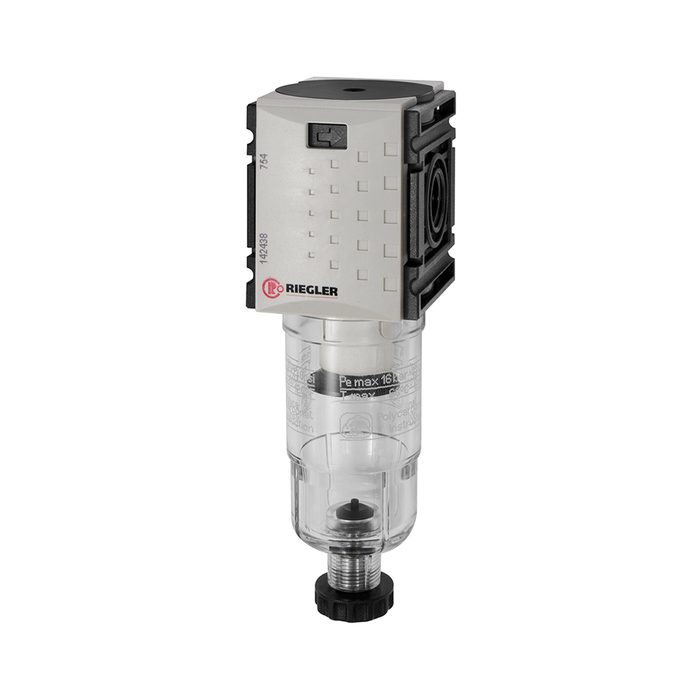

![[142438] RIEGLER Filter »FUTURA-mini« PC container, Size 0, G 1/4, Semi-automatic](/web/image/product.template/210744/image_128/%5B142438%5D%20RIEGLER%20Filter%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C%20Semi-automatic?unique=a31c3b1)
|
Type number: FUM 831 |
17.91 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100357] RIEGLER Polycarbonate container, incl. NBR O-ring 30x2](/web/image/product.template/139791/image_128/%5B100357%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=a319524)
|
Type number: 640/1-HA |
10.13 € | |
![[100359] RIEGLER Metal container, incl. NBR O-ring, with semi autom. bleeder valve](/web/image/product.template/139793/image_128/%5B100359%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2C%20with%20semi%20autom.%20bleeder%20valve?unique=ee0b0b4)
|
Type number: 641/11-HA |
21.74 € | |
![[100360] RIEGLER Metal container, incl. O-ring, with fully autom. bleeder valve](/web/image/product.template/139794/image_128/%5B100360%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20with%20fully%20autom.%20bleeder%20valve?unique=5e31c7a)
|
Type number: 640/11-A |
54.36 € | |
![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=32fab52)
|
Type number: KS 11 F-A |
43.65 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=51620c9)
|
Type number: 655.6.900 |
36.35 € | |
![[143010] RIEGLER Coupling package for wall mounting, incl. 2 screws, »FUTURA-mini«](/web/image/product.template/210835/image_128/%5B143010%5D%20RIEGLER%20Coupling%20package%20for%20wall%20mounting%2C%20incl.%202%20screws%2C%20%C2%BBFUTURA-mini%C2%AB?unique=7618fc5)
|
Type number: WKM 100 |
3.37 € | |
![[143022] RIEGLER Coupling package, incl. 2 screws and O-ring, »FUTURA-mini« Size 0](/web/image/product.template/210836/image_128/%5B143022%5D%20RIEGLER%20Coupling%20package%2C%20incl.%202%20screws%20and%20O-ring%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=4aad050)
|
Type number: KPM 100 |
2.05 € | |
![[143105] RIEGLER Mounting bracket incl. 2 screws, for »FUTURA-mini«, Size 0](/web/image/product.template/211156/image_128/%5B143105%5D%20RIEGLER%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=d2db095)
|
Type number: H 848 |
6.28 € | |
![[143144] RIEGLER Metal container, Fully-automatic (NC)](/web/image/product.template/210847/image_128/%5B143144%5D%20RIEGLER%20Metal%20container%2C%20Fully-automatic%20%28NC%29?unique=909aed0)
|
Type number: 640/11-A-NC |
63.36 € | |
![[152077] RIEGLER Wall console with connection thread G 1/4, »FUTURA-mini«, Size 0](/web/image/product.template/210966/image_128/%5B152077%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=4fa1239)
|
Typennummer: WK 100-14 |
29.45 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[152961] RIEGLER Automatic bleeder valve, usually closed (NC)](/web/image/product.template/212486/image_128/%5B152961%5D%20RIEGLER%20Automatic%20bleeder%20valve%2C%20usually%20closed%20%28NC%29?unique=b7ee739)
|
Typennummer: 655.6.901 |
64.69 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=2a6cf41)
|
Type number: 611.6.905 |
9.46 € | |
![[118137] RIEGLER O-ring for sealing containers, »FUTURA-mini«, Size 0, G 1/4](/web/image/product.template/202393/image_128/%5B118137%5D%20RIEGLER%20O-ring%20for%20sealing%20containers%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%2C%20G%201-4?unique=5d213ea)
|
Type number: 302.4.9 |
1.08 € | |
![[143142] RIEGLER Polycarbonate container, Fully-automatic (NC)](/web/image/product.template/210846/image_128/%5B143142%5D%20RIEGLER%20Polycarbonate%20container%2C%20Fully-automatic%20%28NC%29?unique=1855939)
|
Type number: KS 11 F-A-NC |
55.42 € | |
