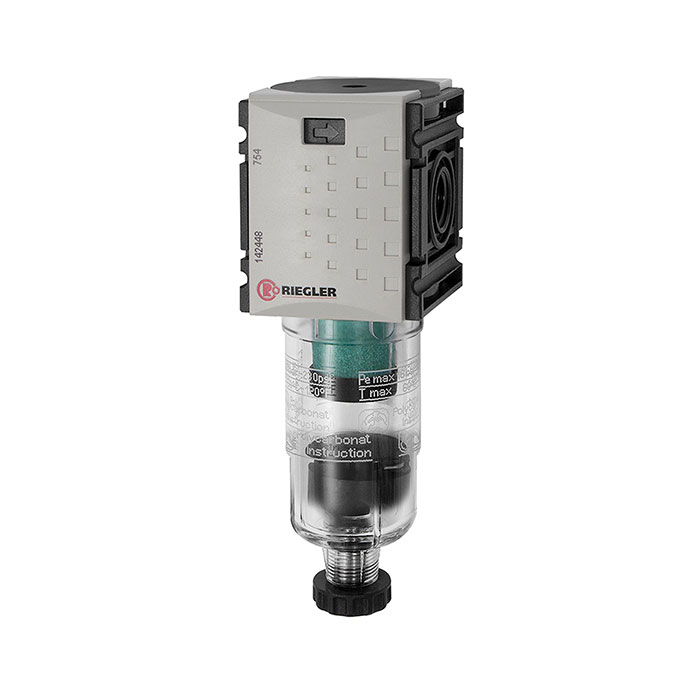

RIEGLER Microfilter »FUTURA-mini«, with PC container, Size 0, G 1/4
Type number: FUM 871
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter »FUTURA-mini«, PC container, 0.01 µm, Size 0, G 1/4, Input pressure 1.5 - 12 bar, Temp. -10°C to 50°C, Semi-automatic
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | FUTURA-mini |
| Container | Polycarbonate container |
| Filter element | Borosilicate glass fiber |
| Filter fineness | 0.01 µm |
| Dust separation | > 0.01 µm 99.999 % |
| Residual oil content | < 0.01 mg/m³ |
| Thread | G 1/4 |
| Flow rate | 190 l/min |
| Condensate drain | semi-automatic |
| BG | 0 |
| A | 43 mm |
| B | 132 mm |
| C | 27 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[142450] RIEGLER Microfilter »FUTURA-mini«, with PC container, Size 0, G 1/4](/web/image/product.template/210753/image_128/%5B142450%5D%20RIEGLER%20Microfilter%20%C2%BBFUTURA-mini%C2%AB%2C%20with%20PC%20container%2C%20Size%200%2C%20G%201-4?unique=2fd6b68)
|
Type number: FUM 881-C |
103.93 € | |

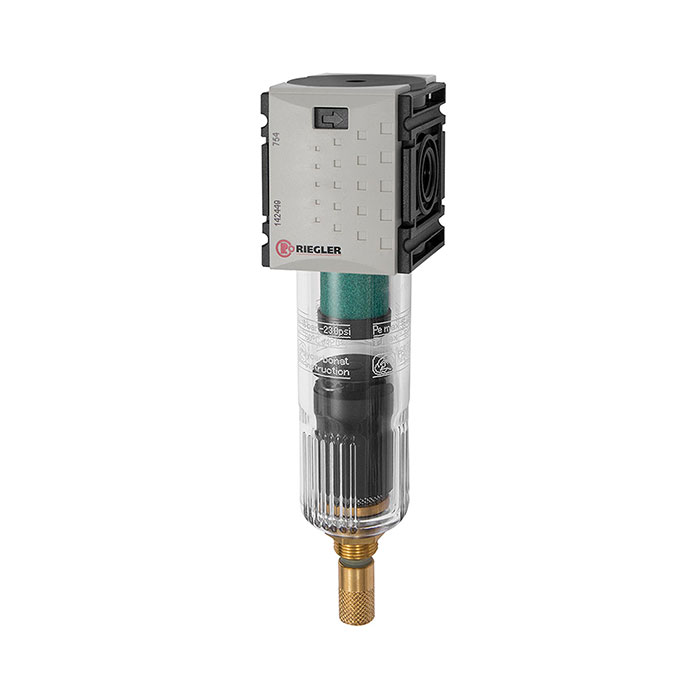

![[142449] RIEGLER Microfilter »FUTURA-mini«, with PC container, Size 0, G 1/4](/web/image/product.template/211396/image_128/%5B142449%5D%20RIEGLER%20Microfilter%20%C2%BBFUTURA-mini%C2%AB%2C%20with%20PC%20container%2C%20Size%200%2C%20G%201-4?unique=c9888b1)
|
Type number: FUM 881 |
93.02 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100359] RIEGLER Metal container, incl. NBR O-ring, with semi autom. bleeder valve](/web/image/product.template/139793/image_128/%5B100359%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2C%20with%20semi%20autom.%20bleeder%20valve?unique=c14e0db)
|
Type number: 641/11-HA |
21.96 € | |
![[100360] RIEGLER Metal container, incl. O-ring, with fully autom. bleeder valve](/web/image/product.template/139794/image_128/%5B100360%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20with%20fully%20autom.%20bleeder%20valve?unique=8e78ed1)
|
Type number: 640/11-A |
55.26 € | |
![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=d7f0770)
|
Type number: KS 11 F-A |
43.65 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=f5c1cf1)
|
Type number: 655.6.900 |
36.96 € | |
![[143010] RIEGLER Coupling package for wall mounting, incl. 2 screws, »FUTURA-mini«](/web/image/product.template/210835/image_128/%5B143010%5D%20RIEGLER%20Coupling%20package%20for%20wall%20mounting%2C%20incl.%202%20screws%2C%20%C2%BBFUTURA-mini%C2%AB?unique=70292aa)
|
Type number: WKM 100 |
3.42 € | |
![[143022] RIEGLER Coupling package, incl. 2 screws and O-ring, »FUTURA-mini« Size 0](/web/image/product.template/210836/image_128/%5B143022%5D%20RIEGLER%20Coupling%20package%2C%20incl.%202%20screws%20and%20O-ring%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=ae9a0b8)
|
Type number: KPM 100 |
2.07 € | |
![[143105] RIEGLER Mounting bracket incl. 2 screws, for »FUTURA-mini«, Size 0](/web/image/product.template/211156/image_128/%5B143105%5D%20RIEGLER%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=2480c31)
|
Type number: H 848 |
6.28 € | |
![[143142] RIEGLER Polycarbonate container, Fully-automatic (NC)](/web/image/product.template/210846/image_128/%5B143142%5D%20RIEGLER%20Polycarbonate%20container%2C%20Fully-automatic%20%28NC%29?unique=dfb5c0f)
|
Type number: KS 11 F-A-NC |
55.43 € | |
![[143144] RIEGLER Metal container, Fully-automatic (NC)](/web/image/product.template/210847/image_128/%5B143144%5D%20RIEGLER%20Metal%20container%2C%20Fully-automatic%20%28NC%29?unique=73fdd9e)
|
Type number: 640/11-A-NC |
64.41 € | |
![[152077] RIEGLER Wall console with connection thread G 1/4, »FUTURA-mini«, Size 0](/web/image/product.template/210966/image_128/%5B152077%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=f8ba2ac)
|
Typennummer: WK 100-14 |
29.45 € | |
![[152961] RIEGLER Automatic bleeder valve, usually closed (NC)](/web/image/product.template/212486/image_128/%5B152961%5D%20RIEGLER%20Automatic%20bleeder%20valve%2C%20usually%20closed%20%28NC%29?unique=e15fb31)
|
Typennummer: 655.6.901 |
64.69 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100381] RIEGLER Microfilter element 0.01 µm, Borosilicate-POM, for G 1/8](/web/image/product.template/139815/image_128/%5B100381%5D%20RIEGLER%20Microfilter%20element%200.01%20%C2%B5m%2C%20Borosilicate-POM%2C%20for%20G%201-8?unique=958b30b)
|
Type number: M 23/40 |
42.20 € | |
![[118137] RIEGLER O-ring for sealing containers, »FUTURA-mini«, Size 0, G 1/4](/web/image/product.template/202393/image_128/%5B118137%5D%20RIEGLER%20O-ring%20for%20sealing%20containers%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%2C%20G%201-4?unique=f80bb53)
|
Type number: 302.4.9 |
1.08 € | |
![[100357] RIEGLER Polycarbonate container, incl. NBR O-ring 30x2](/web/image/product.template/139791/image_128/%5B100357%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=eff8740)
|
Type number: 640/1-HA |
10.21 € | |
