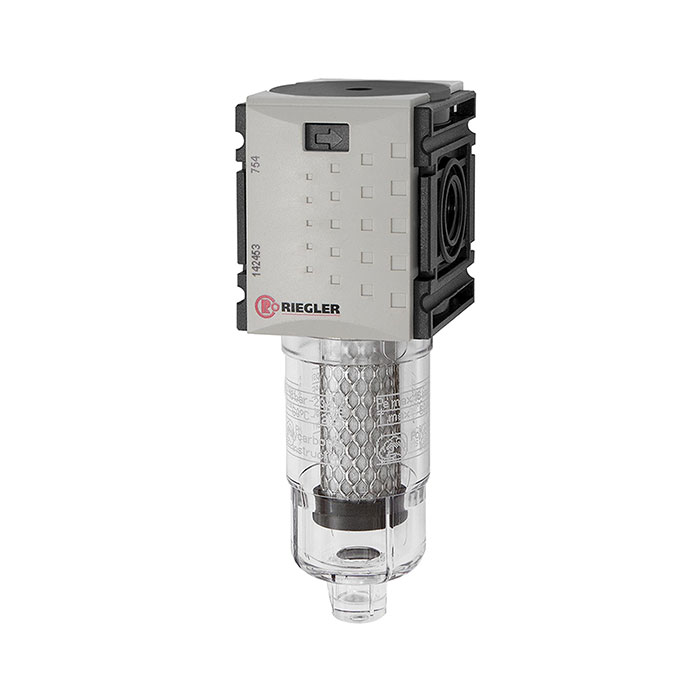

RIEGLER Active charcoal filter »FUTURA-mini« PC container, Size 0, G 1/4
Type number: FUM 891
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "FUTURA-mini" with PC container made of PA66 GF60, for compressed air treatment - type FUM 891
The RIEGLER activated carbon filter "FUTURA-mini" with PC container, BG 0, G 1/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of PA66 GF60 with NBR seals. The maximum inlet pressure is 12 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 470 l/min (at P2 = 6 bar and pressure drop Δp = 0.2 bar). Polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | FUTURA-mini |
| Container | Polycarbonate container |
| Filter element | Activated carbon |
| Residual oil content | 0.005 mg/m³ |
| Thread | G 1/4 |
| Flow rate | 470 l/min |
| BG | 0 |
| A | 43 mm |
| B | 125 mm |
| C | 27 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | MAX |
