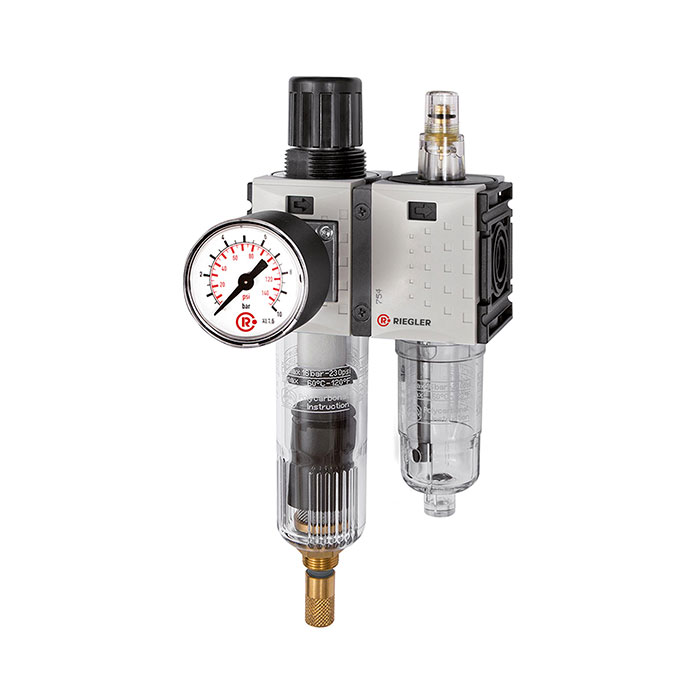

RIEGLER Service unit 2-part »FUTURA-mini« PC container, G 1/4, 0.5-10 bar
Type number: FUM 611-10-C
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER WE 2-piece "FUTURA-mini" made of PA66 GF60, for compressed air treatment, 0.5 bar - Type FUM 611-10-C
The RIEGLER WE 2-piece "FUTURA-mini", PC-treated, stand.mano, G1/4, 0.5-10, VA-NC combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 12 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 800 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, tank made of polycarbonate container. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Container | Polycarbonate container |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Dropper attachment | PC |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | fully automatic (pressureless closed) |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 0 |
| A | 86 mm |
| B | 206 mm |
| C | 63 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
