RIEGLER Filter "SYNTESI", BG1, G 1/8, 5µm, RMSA semiautom.
Type number: 5611F101
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SYNTESI" filter made of technopolymer, for compressed air treatment - type 5611F101
The RIEGLER filter "SYNTESI", BG1, G 1/8, 5µm, RMSA semi-automatic removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of technopolymer with NBR seals. The maximum inlet pressure is 15 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Filter fineness 5 µm, container made of technopolymer. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| BG | 1 |
| Input connection | G 1/8 |
| Output connection | G 1/8 |
| A | 42 mm |
| B | 148 mm |
| Flow 1 | 900 Nl/min |
| Flow 2 | 1300 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Air purity class at the outlet according to | 38171 |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Condensate drain | |
| F | 25.8 mm |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

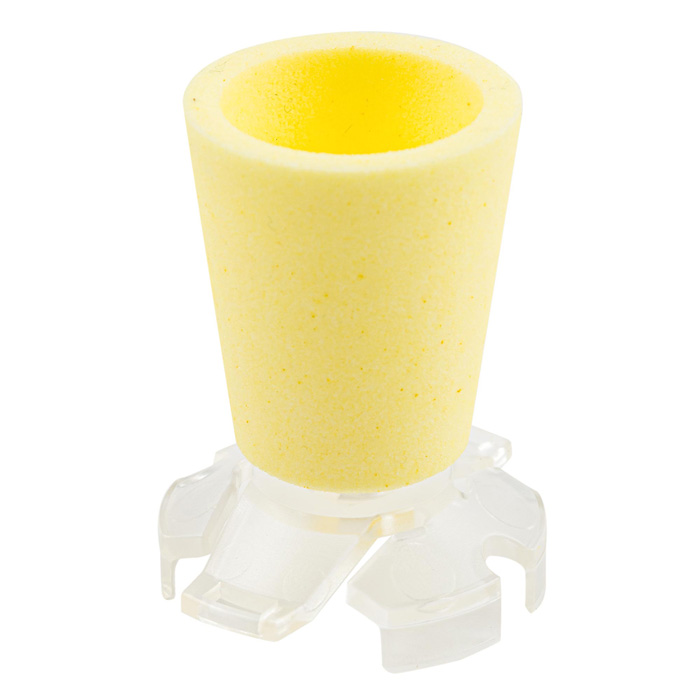

![[145619] RIEGLER Filter element "SYNTESI", BG 1, 5 µm](/web/image/product.template/279276/image_128/%5B145619%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=83cfd98)
|
Type number: 9210150 |
4.90 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=671c19e)
|
Type number: 233.02-N |
0.42 € | |
![[145611] RIEGLER SYNTESI" container, BG 1, RMSA semi-automatic](/web/image/product.template/279268/image_128/%5B145611%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RMSA%20semi-automatic?unique=628641c)
|
Type number: 9210100 |
6.94 € | |
![[144688] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/8, incl. 2 screws](/web/image/product.template/277870/image_128/%5B144688%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%20incl.%202%20screws?unique=720a27a)
|
Type number: 9210001 |
1.86 € | |
