RIEGLER Filter "SYNTESI", BG2, without sockets, 5µm, RMSA semiautom.
Type number: 5620F100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SYNTESI" filter made of technopolymer, for compressed air treatment - type 5620F100
The RIEGLER filter "SYNTESI", BG2, without bushings, 5µm, RMSA semi-automatic removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of technopolymer with NBR seals. The maximum inlet pressure is 13 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Filter fineness 5 µm, container made of technopolymer. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 178 mm |
| Flow 1 | 3800 Nl/min |
| Flow 2 | 5200 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Air purity class at the outlet according to | 38171 |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Condensate drain | |
| F | 38.2 mm |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

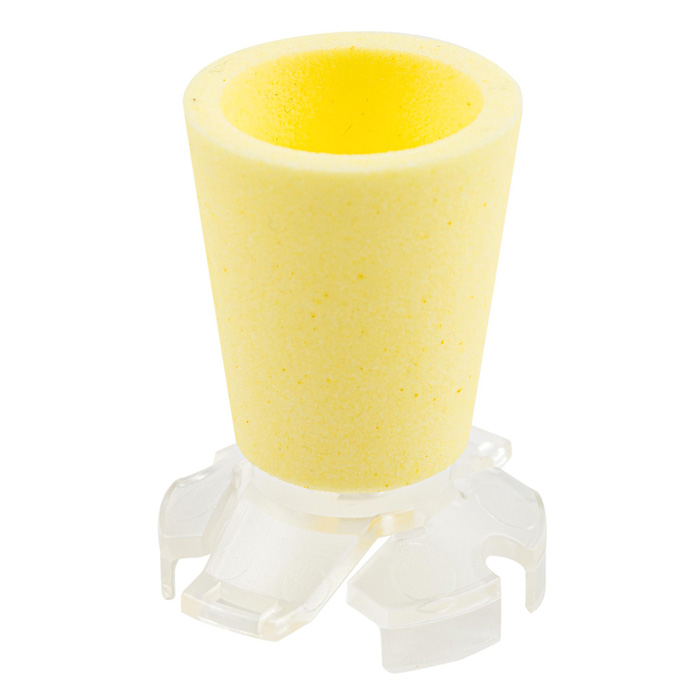

![[145622] RIEGLER Filter element "SYNTESI", BG 2, 5 µm](/web/image/product.template/279279/image_128/%5B145622%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=c502c8a)
|
Type number: 9210155 |
6.41 € | |
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=e365505)
|
Type number: 233.03-N |
0.62 € | |
![[145614] RIEGLER SYNTESI" container, BG 2, RMSA semi-automatic](/web/image/product.template/279271/image_128/%5B145614%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RMSA%20semi-automatic?unique=8204bb3)
|
Type number: 9210105 |
14.46 € | |
