RIEGLER Oil filter "SYNTESI", BG 1, G 3/8, 0.01 µm, RMSA semiautom.
Type number: 5613D103
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Depurator »SYNTESI«, size 1, G 3/8, 0.01 µm, p1 = max. 15 bar, RMSA semi-automatic, T = -10 … 50 °C
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 0.01 µm |
| BG | 1 |
| Input connection | G 3/8 |
| Output connection | |
| A | 42 mm |
| B | 148 mm |
| Recommended flow rate at 6.3 bar | 460 Nl/min |
| Class name | PLUS |
| Air purity class at the outlet according to | 37438 |
| A1 | 44.0 mm |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Condensate drain | |
| F | 25.8 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144646] RIEGLER Oil filter "SYNTESI", BG 1, G 1/4, 0.01 µm, RMSA semiautom.](/web/image/product.template/277845/image_128/%5B144646%5D%20RIEGLER%20Oil%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%200.01%20%C2%B5m%2C%20RMSA%20semiautom.?unique=6cd47ae)
|
Type number: 5612D102 |
79.65 € | |
![[144645] RIEGLER Oil filter "SYNTESI", BG 1, G 1/8, 0.01 µm, RMSA semiautom.](/web/image/product.template/277844/image_128/%5B144645%5D%20RIEGLER%20Oil%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%200.01%20%C2%B5m%2C%20RMSA%20semiautom.?unique=aae29c0)
|
Type number: 5611D101 |
79.65 € | |
![[144644] RIEGLER Oil filter "SYNTESI", BG 1, without bushings, 0.01 µm, RMSA semiautom.](/web/image/product.template/277843/image_128/%5B144644%5D%20RIEGLER%20Oil%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20without%20bushings%2C%200.01%20%C2%B5m%2C%20RMSA%20semiautom.?unique=d10e9a5)
|
Type number: 5610D100 |
76.34 € | |
![[144652] RIEGLER Oil filter "SYNTESI", BG 2, G 1, 0.01 µm, RMSA semiautom.](/web/image/product.template/277851/image_128/%5B144652%5D%20RIEGLER%20Oil%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%200.01%20%C2%B5m%2C%20RMSA%20semiautom.?unique=b06b3e3)
|
Type number: 5626D106 |
130.09 € | |
![[144650] RIEGLER Oil filter "SYNTESI", BG 2, G 1/2, 0.01 µm, RMSA semiautom.](/web/image/product.template/277849/image_128/%5B144650%5D%20RIEGLER%20Oil%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%200.01%20%C2%B5m%2C%20RMSA%20semiautom.?unique=ce8d720)
|
Type number: 5624D104 |
123.08 € | |
![[144651] RIEGLER Oil filter "SYNTESI", BG 2, G 3/4, 0.01 µm, RMSA semiautom.](/web/image/product.template/277850/image_128/%5B144651%5D%20RIEGLER%20Oil%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%200.01%20%C2%B5m%2C%20RMSA%20semiautom.?unique=9269ebc)
|
Type number: 5625D105 |
130.09 € | |
![[144649] RIEGLER Oil filter "SYNTESI", BG 2, G 3/8, 0.01 µm, RMSA semiautom.](/web/image/product.template/277848/image_128/%5B144649%5D%20RIEGLER%20Oil%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%200.01%20%C2%B5m%2C%20RMSA%20semiautom.?unique=7c60fb5)
|
Type number: 5623D103 |
123.08 € | |

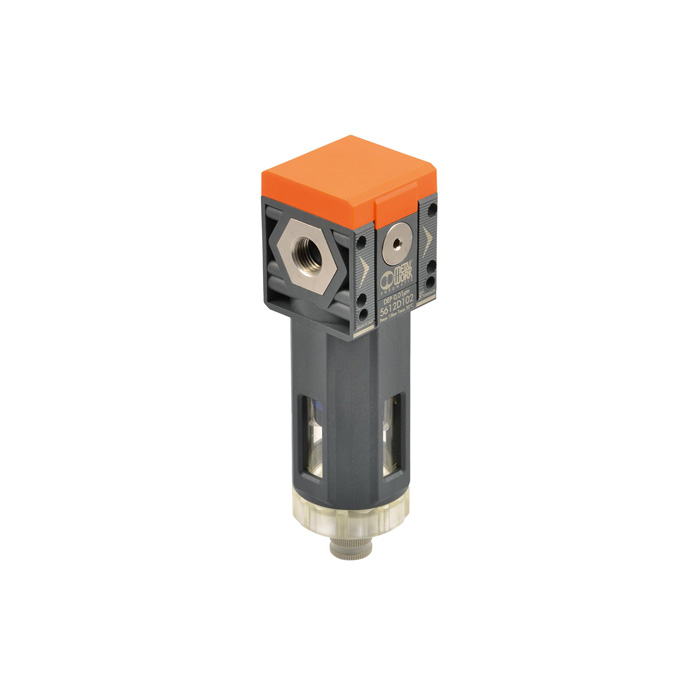

![[144648] RIEGLER Oil filter "SYNTESI", BG 2, without bushings, 0.01 µm, RMSA semiautomatic.](/web/image/product.template/277847/image_128/%5B144648%5D%20RIEGLER%20Oil%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20without%20bushings%2C%200.01%20%C2%B5m%2C%20RMSA%20semiautomatic.?unique=056fa2b)
|
Type number: 5620D100 |
111.75 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=ece161d)
|
Type number: 9210000 |
2.73 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=44c5c52)
|
Type number: 9210009 |
4.13 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=062fb2e)
|
Type number: 9210006 |
6.56 € | |
![[145505] RIEGLER Assembly wrench for "SYNTESI" BG 1, "bit" container](/web/image/product.template/279261/image_128/%5B145505%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20BG%201%2C%20%22bit%22%20container?unique=7d8f368)
|
Type number: 9170601 |
5.62 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=373acfd)
|
Type number: 9210030 |
0.26 € | |
![[145613] RIEGLER SYNTESI" container, BG 1, SAC fully automatic](/web/image/product.template/279270/image_128/%5B145613%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20SAC%20fully%20automatic?unique=60b7b87)
|
Type number: 9210102 |
17.84 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=e9d666b)
|
Type number: 9200716X |
13.64 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=0cf8781)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

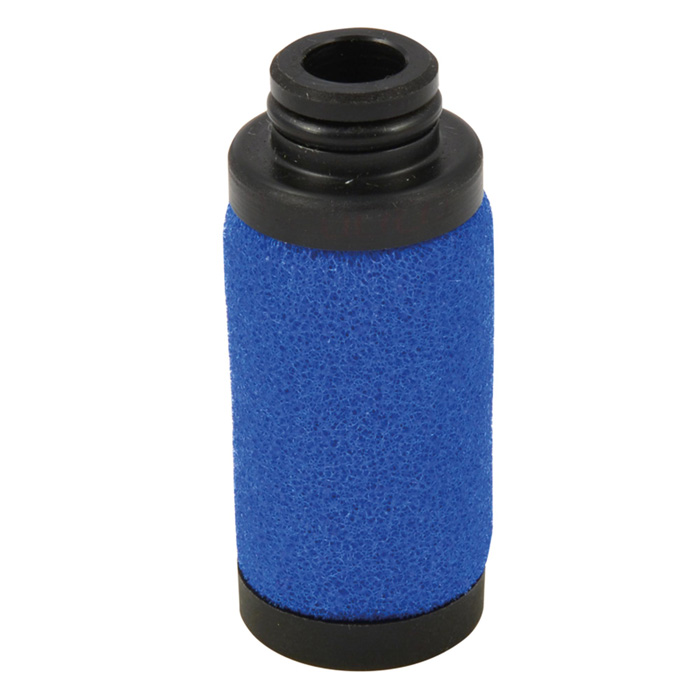

![[145625] RIEGLER Filter element "SYNTESI", BG 1, 0.01 µm](/web/image/product.template/279282/image_128/%5B145625%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%200.01%20%C2%B5m?unique=fa1f012)
|
Type number: 9210160 |
51.81 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=6527c29)
|
Type number: 233.02-N |
0.42 € | |
![[145611] RIEGLER SYNTESI" container, BG 1, RMSA semi-automatic](/web/image/product.template/279268/image_128/%5B145611%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RMSA%20semi-automatic?unique=7353a49)
|
Type number: 9210100 |
7.03 € | |
