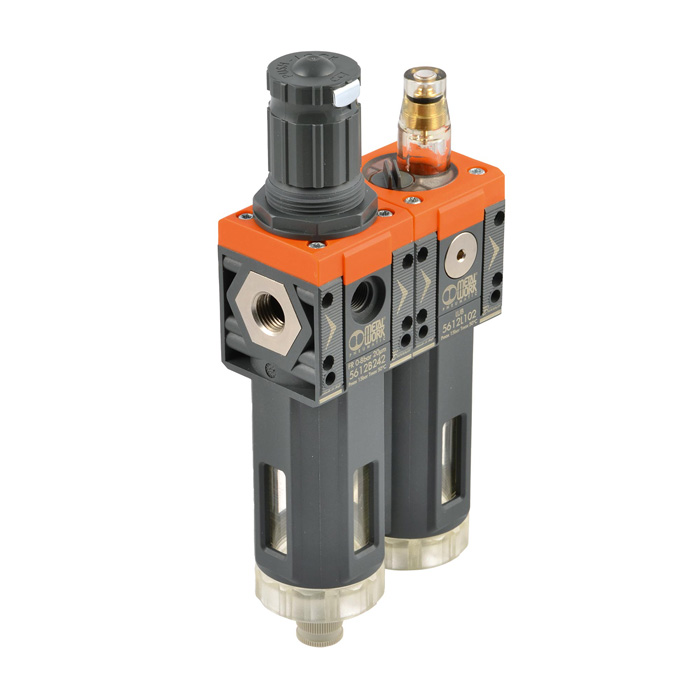

RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 20 µm, 0...12 bar, RMSA
Type number: 5613B26L103
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 20 µm, p1 max. = 15 bar, p2 = 0 ? 12 bar, RMSA semi-automatic, T = -10 ? 50 °C, without mano.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 20 µm |
| Control range min. | 0 bar |
| Control range max. | 12 bar |
| BG | 1 |
| Input connection | G 3/8 |
| Output connection | |
| A | 84 mm |
| B | 198 mm |
| Flow_1 | 350 Nl/min |
| Flow_2 | 1400 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 122.2 mm |
| Air purity class at the outlet according to | 4.7.- |
| A1 | 86.0 mm |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Spring cover | Technopolymer |
| Condensate drain |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144728] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, 0...12 bar, RMSA](/web/image/product.template/279880/image_128/%5B144728%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=f7a92d5)
|
Type number: 5612B26L102 |
80.21 € | |
![[144725] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, 0...2 bar, RMSA](/web/image/product.template/279877/image_128/%5B144725%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=17aadca)
|
Type number: 5612B20L102 |
80.21 € | |
![[144726] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, 0...4 bar, RMSA](/web/image/product.template/279878/image_128/%5B144726%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=cc823ab)
|
Type number: 5612B22L102 |
80.21 € | |
![[144727] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, 0...8 bar, RMSA](/web/image/product.template/279879/image_128/%5B144727%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=606f0bf)
|
Type number: 5612B24L102 |
80.21 € | |
![[144724] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, 0...12 bar, RMSA](/web/image/product.template/279876/image_128/%5B144724%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=e570b39)
|
Type number: 5612B16L102 |
80.21 € | |
![[144721] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, 0...2 bar, RMSA](/web/image/product.template/279873/image_128/%5B144721%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=17fd976)
|
Type number: 5612B10L102 |
80.21 € | |
![[144722] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, 0...4 bar, RMSA](/web/image/product.template/279874/image_128/%5B144722%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=027d0c3)
|
Type number: 5612B12L102 |
80.21 € | |
![[144723] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, 0...8 bar, RMSA](/web/image/product.template/279875/image_128/%5B144723%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=aa166d3)
|
Type number: 5612B14L102 |
80.21 € | |
![[144720] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, 0...12 bar, RMSA](/web/image/product.template/279872/image_128/%5B144720%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=d9efb12)
|
Type number: 5611B26L101 |
80.21 € | |
![[144717] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, 0...2 bar, RMSA](/web/image/product.template/279869/image_128/%5B144717%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=fdd3428)
|
Type number: 5611B20L101 |
80.21 € | |
![[144718] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, 0...4 bar, RMSA](/web/image/product.template/279870/image_128/%5B144718%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=45fe7a2)
|
Type number: 5611B22L101 |
80.21 € | |
![[144719] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, 0...8 bar, RMSA](/web/image/product.template/279871/image_128/%5B144719%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=3c8681a)
|
Type number: 5611B24L101 |
80.21 € | |
![[144716] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, 0...12 bar, RMSA](/web/image/product.template/279868/image_128/%5B144716%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=3122ea1)
|
Type number: 5611B16L101 |
80.21 € | |
![[144713] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, 0...2 bar, RMSA](/web/image/product.template/279865/image_128/%5B144713%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=cf3ec73)
|
Type number: 5611B10L101 |
80.21 € | |
![[144714] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, 0...4 bar, RMSA](/web/image/product.template/279866/image_128/%5B144714%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=caf8fc2)
|
Type number: 5611B12L101 |
80.21 € | |
![[144715] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, 0...8 bar, RMSA](/web/image/product.template/279867/image_128/%5B144715%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=9a7d774)
|
Type number: 5611B14L101 |
80.21 € | |
![[144733] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 20 µm, 0...2 bar, RMSA](/web/image/product.template/279885/image_128/%5B144733%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=3f596a4)
|
Type number: 5613B20L103 |
80.21 € | |
![[144734] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 20 µm, 0...4 bar, RMSA](/web/image/product.template/279886/image_128/%5B144734%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=a6fe5c0)
|
Type number: 5613B22L103 |
80.21 € | |
![[144735] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 20 µm, 0...8 bar, RMSA](/web/image/product.template/279887/image_128/%5B144735%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=47ccfaf)
|
Type number: 5613B24L103 |
80.21 € | |
![[144732] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 5 µm, 0...12 bar, RMSA](/web/image/product.template/279884/image_128/%5B144732%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=ebfb83c)
|
Type number: 5613B16L103 |
80.21 € | |
![[144729] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 5 µm, 0...2 bar, RMSA](/web/image/product.template/279881/image_128/%5B144729%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=07253a3)
|
Type number: 5613B10L103 |
80.21 € | |
![[144730] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 5 µm, 0...4 bar, RMSA](/web/image/product.template/279882/image_128/%5B144730%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=4bbfd10)
|
Type number: 5613B12L103 |
80.21 € | |
![[144731] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 5 µm, 0...8 bar, RMSA](/web/image/product.template/279883/image_128/%5B144731%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=668d0fe)
|
Type number: 5613B14L103 |
80.21 € | |
![[144768] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 20 µm, 0...12 bar, RMSA](/web/image/product.template/279920/image_128/%5B144768%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%2020%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=9bac700)
|
Type number: 5626B26L106 |
147.76 € | |
![[144765] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 20 µm, 0...2 bar, RMSA](/web/image/product.template/279917/image_128/%5B144765%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=fa11243)
|
Type number: 5626B20L106 |
147.76 € | |
![[144766] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 20 µm, 0...4 bar, RMSA](/web/image/product.template/279918/image_128/%5B144766%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=8b7cf0e)
|
Type number: 5626B22L106 |
147.76 € | |
![[144767] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 20 µm, 0...8 bar, RMSA](/web/image/product.template/279919/image_128/%5B144767%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=6398d82)
|
Type number: 5626B24L106 |
147.76 € | |
![[144752] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, 0...12 bar, RMSA](/web/image/product.template/279904/image_128/%5B144752%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%2020%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=178d18d)
|
Type number: 5624B26L104 |
128.33 € | |
![[144749] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, 0...2 bar, RMSA](/web/image/product.template/279901/image_128/%5B144749%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=8ca94a8)
|
Type number: 5624B20L104 |
128.33 € | |
![[144750] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, 0...4 bar, RMSA](/web/image/product.template/279902/image_128/%5B144750%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=61fb83b)
|
Type number: 5624B22L104 |
128.33 € | |
![[144751] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, 0...8 bar, RMSA](/web/image/product.template/279903/image_128/%5B144751%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=f29f67b)
|
Type number: 5624B24L104 |
128.33 € | |
![[144748] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 5 µm, 0...12 bar, RMSA](/web/image/product.template/279900/image_128/%5B144748%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%205%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=aac4545)
|
Type number: 5624B16L104 |
128.33 € | |
![[144745] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 5 µm, 0...2 bar, RMSA](/web/image/product.template/279897/image_128/%5B144745%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=bb3e59e)
|
Type number: 5624B10L104 |
128.33 € | |
![[144746] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 5 µm, 0...4 bar, RMSA](/web/image/product.template/279898/image_128/%5B144746%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=2956534)
|
Type number: 5624B12L104 |
128.33 € | |
![[144747] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 5 µm, 0...8 bar, RMSA](/web/image/product.template/279899/image_128/%5B144747%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=901673a)
|
Type number: 5624B14L104 |
128.33 € | |
![[144764] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 5 µm, 0...12 bar, RMSA](/web/image/product.template/279916/image_128/%5B144764%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=829d9ae)
|
Type number: 5626B16L106 |
147.76 € | |
![[144761] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 5 µm, 0...2 bar, RMSA](/web/image/product.template/279913/image_128/%5B144761%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=e8d6996)
|
Type number: 5626B10L106 |
147.76 € | |
![[144762] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 5 µm, 0...4 bar, RMSA](/web/image/product.template/279914/image_128/%5B144762%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=a02a179)
|
Type number: 5626B12L106 |
147.76 € | |
![[144763] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 5 µm, 0...8 bar, RMSA](/web/image/product.template/279915/image_128/%5B144763%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=6863642)
|
Type number: 5626B14L106 |
147.76 € | |
![[144760] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 20 µm, 0...12 bar, RMSA](/web/image/product.template/279912/image_128/%5B144760%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%2020%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=87a89e6)
|
Type number: 5625B26L105 |
147.76 € | |
![[144757] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 20 µm, 0...2 bar, RMSA](/web/image/product.template/279909/image_128/%5B144757%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=f710a8a)
|
Type number: 5625B20L105 |
147.76 € | |
![[144758] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 20 µm, 0...4 bar, RMSA](/web/image/product.template/279910/image_128/%5B144758%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=b7300c6)
|
Type number: 5625B22L105 |
147.76 € | |
![[144759] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 20 µm, 0...8 bar, RMSA](/web/image/product.template/279911/image_128/%5B144759%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=55f387a)
|
Type number: 5625B24L105 |
147.76 € | |
![[144753] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 5 µm, 0...2 bar, RMSA](/web/image/product.template/279905/image_128/%5B144753%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=695b579)
|
Type number: 5625B10L105 |
147.76 € | |
![[144754] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 5 µm, 0...4 bar, RMSA](/web/image/product.template/279906/image_128/%5B144754%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=5452c01)
|
Type number: 5625B12L105 |
147.76 € | |
![[144755] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 5 µm, 0...8 bar, RMSA](/web/image/product.template/279907/image_128/%5B144755%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=25e6009)
|
Type number: 5625B14L105 |
147.76 € | |
![[144744] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 20 µm, 0...12 bar, RMSA](/web/image/product.template/279896/image_128/%5B144744%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=120b5b3)
|
Type number: 5623B26L103 |
128.33 € | |
![[144741] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 20 µm, 0...2 bar, RMSA](/web/image/product.template/279893/image_128/%5B144741%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=563f1f6)
|
Type number: 5623B20L103 |
128.33 € | |
![[144742] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 20 µm, 0...4 bar, RMSA](/web/image/product.template/279894/image_128/%5B144742%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=c4c1410)
|
Type number: 5623B22L103 |
128.33 € | |
![[144743] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 20 µm, 0...8 bar, RMSA](/web/image/product.template/279895/image_128/%5B144743%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=3a76c82)
|
Type number: 5623B24L103 |
128.33 € | |
![[144740] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, 0...12 bar, RMSA](/web/image/product.template/279892/image_128/%5B144740%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=648c92d)
|
Type number: 5623B16L103 |
128.33 € | |
![[144737] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, 0...2 bar, RMSA](/web/image/product.template/279889/image_128/%5B144737%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=01079f8)
|
Type number: 5623B10L103 |
128.33 € | |
![[144738] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, 0...4 bar, RMSA](/web/image/product.template/279890/image_128/%5B144738%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=179845a)
|
Type number: 5623B12L103 |
128.33 € | |
![[144739] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, 0...8 bar, RMSA](/web/image/product.template/279891/image_128/%5B144739%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=8714066)
|
Type number: 5623B14L103 |
128.33 € | |
![[144756] RIEGLER Filter regulator + oiler "SYNTESI", BG 2, G 3/4, 5 µm, 0...12 bar, RMSA](/web/image/product.template/279908/image_128/%5B144756%5D%20RIEGLER%20Filter%20regulator%20%2B%20oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=1f27c4a)
|
Type number: 5625B16L105 |
147.76 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=04b7896)
|
Type number: 32 |
34.57 € | |
![[101534] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 16 bar/230 psi](/web/image/product.template/169508/image_128/%5B101534%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2016%20bar-230%20psi?unique=d92fee4)
|
Type number: 110.47-KD |
6.15 € | |
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=8a5ac05)
|
Type number: 9210000 |
2.73 € | |
![[145470] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-12 bar, Ø40](/web/image/product.template/279226/image_128/%5B145470%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-12%20bar%2C%20%C3%9840?unique=27dee3b)
|
Type number: 9700101 |
9.69 € | |
![[145472] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-12 bar, Ø50](/web/image/product.template/279228/image_128/%5B145472%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-12%20bar%2C%20%C3%9850?unique=377d9f9)
|
Type number: 9800101 |
9.69 € | |
![[145476] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-12 bar, 40x40](/web/image/product.template/279232/image_128/%5B145476%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-12%20bar%2C%2040x40?unique=08872bd)
|
Type number: 9700110 |
9.38 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=527321a)
|
Type number: 9210009 |
4.13 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=760151b)
|
Type number: 9210006 |
6.56 € | |
![[145505] RIEGLER Assembly wrench for "SYNTESI" BG 1, "bit" container](/web/image/product.template/279261/image_128/%5B145505%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20BG%201%2C%20%22bit%22%20container?unique=b6682c2)
|
Type number: 9170601 |
5.62 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=1384bbf)
|
Type number: 9210030 |
0.26 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=95e3395)
|
Type number: 9062401 |
12.10 € | |
![[145612] RIEGLER SYNTESI" container, BG 1, RA fully automatic](/web/image/product.template/279269/image_128/%5B145612%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RA%20fully%20automatic?unique=e2365d2)
|
Type number: 9210101 |
30.52 € | |
![[145613] RIEGLER SYNTESI" container, BG 1, SAC fully automatic](/web/image/product.template/279270/image_128/%5B145613%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20SAC%20fully%20automatic?unique=936226e)
|
Type number: 9210102 |
17.84 € | |
![[145619] RIEGLER Filter element "SYNTESI", BG 1, 5 µm](/web/image/product.template/279276/image_128/%5B145619%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=31c8fa3)
|
Type number: 9210150 |
4.97 € | |
![[145621] RIEGLER Filter element "SYNTESI", BG 1, 50 µm](/web/image/product.template/279278/image_128/%5B145621%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%2050%20%C2%B5m?unique=aa3deb1)
|
Type number: 9210152 |
4.97 € | |
![[145651] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 5 µm](/web/image/product.template/279308/image_128/%5B145651%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=bee87c9)
|
Type number: 9210211 |
6.78 € | |
![[145653] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 50 µm](/web/image/product.template/279310/image_128/%5B145653%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%2050%20%C2%B5m?unique=5a6a3c1)
|
Type number: 9210213 |
6.78 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=6e51bb9)
|
Type number: 9200716X |
13.64 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=e3c435e)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145617] RIEGLER Container for oiler "SYNTESI", BG 1](/web/image/product.template/279274/image_128/%5B145617%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%201?unique=66a7241)
|
Type number: 9210110 |
5.18 € | |
![[145620] RIEGLER Filter element "SYNTESI", BG 1, 20 µm](/web/image/product.template/279277/image_128/%5B145620%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%2020%20%C2%B5m?unique=ec6210d)
|
Type number: 9210151 |
4.97 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=4e4b5a3)
|
Type number: 233.02-N |
0.42 € | |
![[145629] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 1, with oil filler plug](/web/image/product.template/279286/image_128/%5B145629%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%201%2C%20with%20oil%20filler%20plug?unique=16a0053)
|
Type number: 9210180 |
5.43 € | |
![[145631] RIEGLER Oil filler plug "SYNTESI", BG 1](/web/image/product.template/279288/image_128/%5B145631%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%201?unique=0b1e8b9)
|
Type number: 9210181 |
1.98 € | |
![[145644] RIEGLER Regulator attachment (bell) "SYNTESI", BG 1, 0 - 12 bar](/web/image/product.template/279301/image_128/%5B145644%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%201%2C%200%20-%2012%20bar?unique=b60b296)
|
Type number: 9210203 |
12.86 € | |

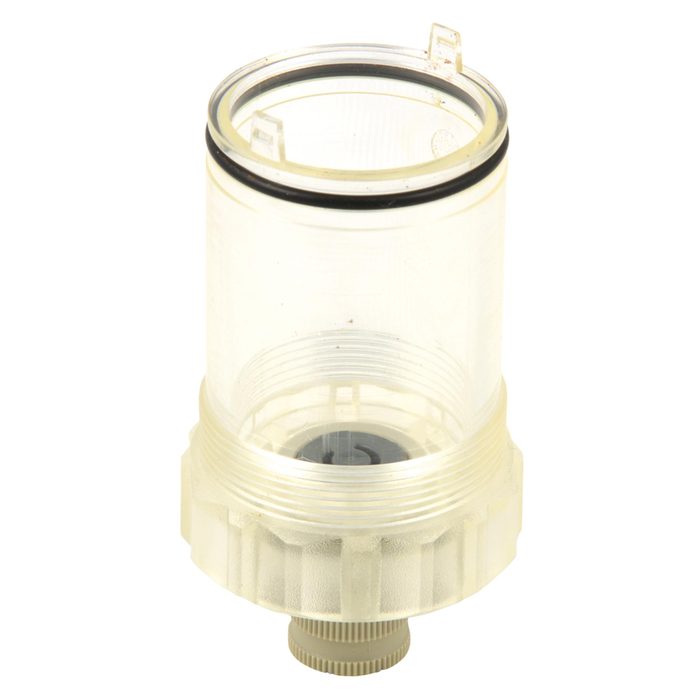

![[145611] RIEGLER SYNTESI" container, BG 1, RMSA semi-automatic](/web/image/product.template/279268/image_128/%5B145611%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RMSA%20semi-automatic?unique=3923a97)
|
