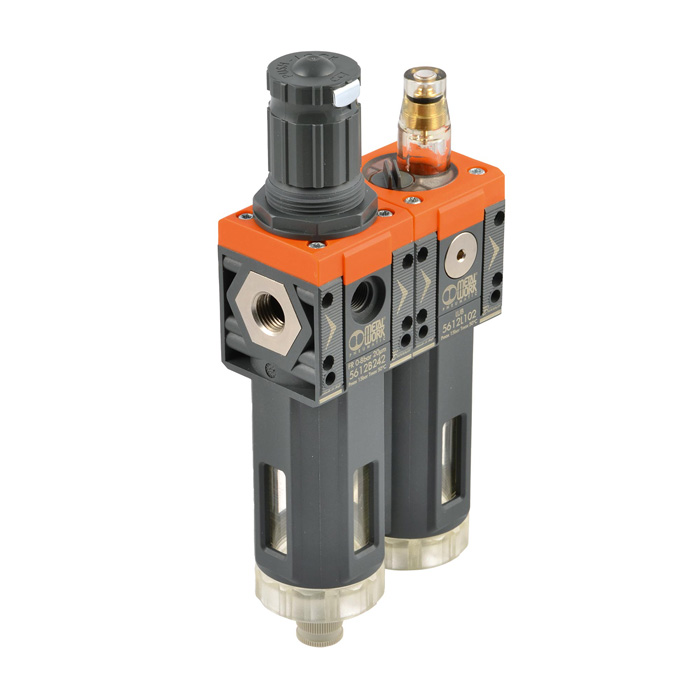

RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, 0...10 bar, RA
Type number: 5611B46L101
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filter regulator + oiler "SYNTESI", BG 1, G 1/8, 5 µm, p1 max. = 10 bar, p2 = 0 ? 10 bar, RA fully automatic, T = -10 ? 50 °C, o. Mano.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| Control range min. | 0 bar |
| Control range max. | 10 bar |
| BG | 1 |
| Input connection | G 1/8 |
| Output connection | G 1/8 |
| A | 84 mm |
| B | 202 mm |
| Flow 1 | 350 Nl/min |
| Flow 2 | 1400 Nl/min |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 126.2 mm |
| Air purity class at the outlet according to | 3.7.- |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Spring cover | Technopolymer |
| Condensate drain | RA fully automatic |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145609] RIEGLER Automatic drain valve "SYNTESI", RA](/web/image/product.template/279266/image_128/%5B145609%5D%20RIEGLER%20Automatic%20drain%20valve%20%22SYNTESI%22%2C%20RA?unique=93c155d)
|
Type number: 9000802 |
37.41 € | |
![[145617] RIEGLER Container for oiler "SYNTESI", BG 1](/web/image/product.template/279274/image_128/%5B145617%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%201?unique=75e58e1)
|
Type number: 9210110 |
5.18 € | |
![[145619] RIEGLER Filter element "SYNTESI", BG 1, 5 µm](/web/image/product.template/279276/image_128/%5B145619%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=a0fb1c3)
|
Type number: 9210150 |
4.90 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=63adaba)
|
Type number: 233.02-N |
0.42 € | |
![[145629] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 1, with oil filler plug](/web/image/product.template/279286/image_128/%5B145629%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%201%2C%20with%20oil%20filler%20plug?unique=c289dbb)
|
Type number: 9210180 |
5.43 € | |
![[145631] RIEGLER Oil filler plug "SYNTESI", BG 1](/web/image/product.template/279288/image_128/%5B145631%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%201?unique=6845231)
|
Type number: 9210181 |
1.96 € | |
![[145644] RIEGLER Regulator attachment (bell) "SYNTESI", BG 1, 0 - 12 bar](/web/image/product.template/279301/image_128/%5B145644%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%201%2C%200%20-%2012%20bar?unique=f4941a2)
|
Type number: 9210203 |
12.86 € | |
![[145612] RIEGLER SYNTESI" container, BG 1, RA fully automatic](/web/image/product.template/279269/image_128/%5B145612%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RA%20fully%20automatic?unique=579c5fb)
|
Type number: 9210101 |
30.12 € | |
![[145636] RIEGLER SYNTESI" spring, BG 1, 0 - 12 bar](/web/image/product.template/279293/image_128/%5B145636%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%201%2C%200%20-%2012%20bar?unique=841b3ad)
|
Type number: 9210193 |
2.42 € | |
![[144688] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/8, incl. 2 screws](/web/image/product.template/277870/image_128/%5B144688%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%20incl.%202%20screws?unique=46b3f4b)
|
Type number: 9210001 |
1.86 € | |
![[145651] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 5 µm](/web/image/product.template/279308/image_128/%5B145651%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=9ebb217)
|
Type number: 9210211 |
6.70 € | |
