RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 5 µm, 0...2 bar, RA
Type number: 5624B40L104
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator + oiler "SYNTESI", BG 2, G 1/2, 5 µm, p1 max. = 10 bar, p2 = 0 ? 2 bar, RA fully automatic, T = -10 ? 50 °C, o. Mano.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| Control range min. | 0 bar |
| Control range max. | 2 bar |
| BG | 2 |
| Input connection | G 1/2 |
| Output connection | G 1/2 |
| A | 121 mm |
| B | 250 mm |
| Flow_1 | 1200 Nl/min |
| Flow_2 | 4000 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 143.8 mm |
| Air purity class at the outlet according to | 3.7.- |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Spring cover | Technopolymer |
| Condensate drain | RA fully automatic |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144784] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, 0...10 bar, RA](/web/image/product.template/279936/image_128/%5B144784%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=3531812)
|
Type number: 5612B56L102 |
103.78 € | |
![[144781] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, 0...2 bar, RA](/web/image/product.template/279933/image_128/%5B144781%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=8d54025)
|
Type number: 5612B50L102 |
103.78 € | |
![[144782] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, 0...4 bar, RA](/web/image/product.template/279934/image_128/%5B144782%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=fcb5c5b)
|
Type number: 5612B52L102 |
103.78 € | |
![[144783] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, 0...8 bar, RA](/web/image/product.template/279935/image_128/%5B144783%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=6dacd3b)
|
Type number: 5612B54L102 |
103.78 € | |
![[144780] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, 0...10 bar, RA](/web/image/product.template/279932/image_128/%5B144780%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=33ab4ed)
|
Type number: 5612B46L102 |
103.78 € | |
![[144777] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, 0...2 bar, RA](/web/image/product.template/279929/image_128/%5B144777%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=6262069)
|
Type number: 5612B40L102 |
103.78 € | |
![[144778] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, 0...4 bar, RA](/web/image/product.template/279930/image_128/%5B144778%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=44edfac)
|
Type number: 5612B42L102 |
103.78 € | |
![[144779] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, 0...8 bar, RA](/web/image/product.template/279931/image_128/%5B144779%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=44909d8)
|
Type number: 5612B44L102 |
103.78 € | |
![[144776] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, 0...10 bar, RA](/web/image/product.template/279928/image_128/%5B144776%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=06849c0)
|
Type number: 5611B56L101 |
103.78 € | |
![[144773] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, 0...2 bar, RA](/web/image/product.template/279925/image_128/%5B144773%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=b2b243e)
|
Type number: 5611B50L101 |
103.78 € | |
![[144774] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, 0...4 bar, RA](/web/image/product.template/279926/image_128/%5B144774%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=65f794c)
|
Type number: 5611B52L101 |
103.78 € | |
![[144775] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, 0...8 bar, RA](/web/image/product.template/279927/image_128/%5B144775%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=73efef4)
|
Type number: 5611B54L101 |
103.78 € | |
![[144772] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, 0...10 bar, RA](/web/image/product.template/279924/image_128/%5B144772%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=9834dfe)
|
Type number: 5611B46L101 |
103.78 € | |
![[144769] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, 0...2 bar, RA](/web/image/product.template/279921/image_128/%5B144769%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=93c5acc)
|
Type number: 5611B40L101 |
103.78 € | |
![[144770] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, 0...4 bar, RA](/web/image/product.template/279922/image_128/%5B144770%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=689a3bb)
|
Type number: 5611B42L101 |
103.78 € | |
![[144771] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, 0...8 bar, RA](/web/image/product.template/279923/image_128/%5B144771%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=c553f2e)
|
Type number: 5611B44L101 |
103.78 € | |
![[144792] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 20 µm, 0...10 bar, RA](/web/image/product.template/279944/image_128/%5B144792%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=22d9549)
|
Type number: 5613B56L103 |
103.78 € | |
![[144789] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 20 µm, 0...2 bar, RA](/web/image/product.template/279941/image_128/%5B144789%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=4235e7c)
|
Type number: 5613B50L103 |
103.78 € | |
![[144790] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 20 µm, 0...4 bar, RA](/web/image/product.template/279942/image_128/%5B144790%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=64d4900)
|
Type number: 5613B52L103 |
103.78 € | |
![[144791] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 20 µm, 0...8 bar, RA](/web/image/product.template/279943/image_128/%5B144791%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=98d70df)
|
Type number: 5613B54L103 |
103.78 € | |
![[144788] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 5 µm, 0...10 bar, RA](/web/image/product.template/279940/image_128/%5B144788%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=d46eaf9)
|
Type number: 5613B46L103 |
103.78 € | |
![[144785] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 5 µm, 0...2 bar, RA](/web/image/product.template/279937/image_128/%5B144785%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=4e0e3f5)
|
Type number: 5613B40L103 |
103.78 € | |
![[144786] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 5 µm, 0...4 bar, RA](/web/image/product.template/279938/image_128/%5B144786%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=615f496)
|
Type number: 5613B42L103 |
103.78 € | |
![[144787] RIEGLER Filter regulator + lubricator "SYNTESI", BG 1, G 3/8, 5 µm, 0...8 bar, RA](/web/image/product.template/279939/image_128/%5B144787%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=98fa605)
|
Type number: 5613B44L103 |
103.78 € | |
![[144824] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 20 µm, 0...10 bar, RA](/web/image/product.template/279976/image_128/%5B144824%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%2020%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=1d0fbcb)
|
Type number: 5626B56L106 |
171.35 € | |
![[144821] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 20 µm, 0...2 bar, RA](/web/image/product.template/279973/image_128/%5B144821%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=440f146)
|
Type number: 5626B50L106 |
171.35 € | |
![[144822] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 20 µm, 0...4 bar, RA](/web/image/product.template/279974/image_128/%5B144822%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=7d68a10)
|
Type number: 5626B52L106 |
171.35 € | |
![[144823] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 20 µm, 0...8 bar, RA](/web/image/product.template/279975/image_128/%5B144823%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=20666b9)
|
Type number: 5626B54L106 |
171.35 € | |
![[144808] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, 0...10 bar, RA](/web/image/product.template/279960/image_128/%5B144808%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%2020%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=1eeadbc)
|
Type number: 5624B56L104 |
151.56 € | |

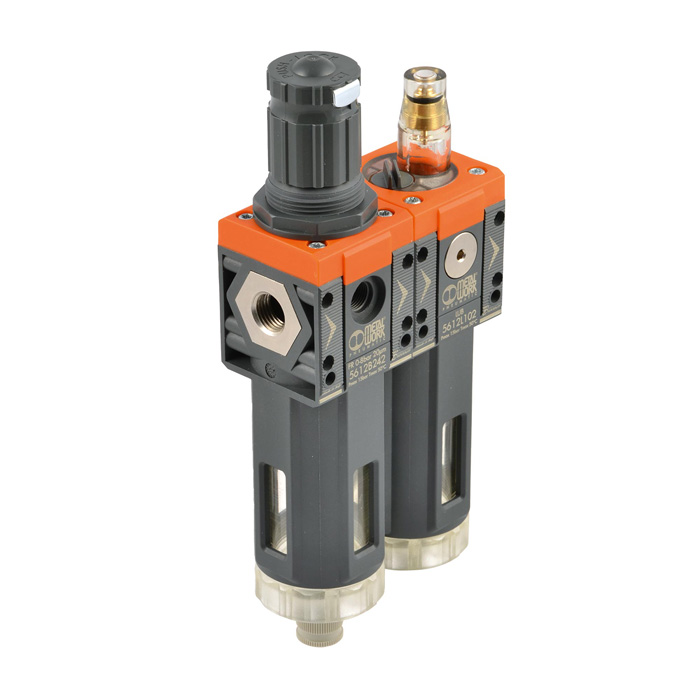

![[144805] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, 0...2 bar, RA](/web/image/product.template/279957/image_128/%5B144805%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=ce031b6)
|
Type number: 5624B50L104 |
151.56 € | |
![[144806] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, 0...4 bar, RA](/web/image/product.template/279958/image_128/%5B144806%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=8cb8944)
|
Type number: 5624B52L104 |
151.56 € | |
![[144807] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, 0...8 bar, RA](/web/image/product.template/279959/image_128/%5B144807%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=e419caa)
|
Type number: 5624B54L104 |
151.56 € | |
![[144804] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 5 µm, 0...10 bar, RA](/web/image/product.template/279956/image_128/%5B144804%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%205%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=85e4c3b)
|
Type number: 5624B46L104 |
151.56 € | |
![[144802] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 5 µm, 0...4 bar, RA](/web/image/product.template/279954/image_128/%5B144802%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=d4af48d)
|
Type number: 5624B42L104 |
151.56 € | |
![[144803] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1/2, 5 µm, 0...8 bar, RA](/web/image/product.template/279955/image_128/%5B144803%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=44c5464)
|
Type number: 5624B44L104 |
151.56 € | |
![[144820] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 5 µm, 0...10 bar, RA](/web/image/product.template/279972/image_128/%5B144820%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=68a356a)
|
Type number: 5626B46L106 |
171.35 € | |
![[144817] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 5 µm, 0...2 bar, RA](/web/image/product.template/279969/image_128/%5B144817%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=d0c8814)
|
Type number: 5626B40L106 |
171.35 € | |
![[144818] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 5 µm, 0...4 bar, RA](/web/image/product.template/279970/image_128/%5B144818%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=065e3a8)
|
Type number: 5626B42L106 |
171.35 € | |
![[144819] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 1, 5 µm, 0...8 bar, RA](/web/image/product.template/279971/image_128/%5B144819%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=0fbf34a)
|
Type number: 5626B44L106 |
171.35 € | |
![[144813] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 20 µm, 0...2 bar, RA](/web/image/product.template/279965/image_128/%5B144813%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=eb211a5)
|
Type number: 5625B50L105 |
171.35 € | |
![[144814] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 20 µm, 0...4 bar, RA](/web/image/product.template/279966/image_128/%5B144814%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=e48b818)
|
Type number: 5625B52L105 |
171.35 € | |
![[144815] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 20 µm, 0...8 bar, RA](/web/image/product.template/279967/image_128/%5B144815%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=f3b4280)
|
Type number: 5625B54L105 |
171.35 € | |
![[144809] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 5 µm, 0...2 bar, RA](/web/image/product.template/279961/image_128/%5B144809%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=da63939)
|
Type number: 5625B40L105 |
171.35 € | |
![[144810] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 5 µm, 0...4 bar, RA](/web/image/product.template/279962/image_128/%5B144810%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=2729da4)
|
Type number: 5625B42L105 |
171.35 € | |
![[144811] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/4, 5 µm, 0...8 bar, RA](/web/image/product.template/279963/image_128/%5B144811%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=f8c5f9b)
|
Type number: 5625B44L105 |
171.35 € | |
![[144800] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 20 µm, 0...10 bar, RA](/web/image/product.template/279952/image_128/%5B144800%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=db4e801)
|
Type number: 5623B56L103 |
151.56 € | |
![[144797] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 20 µm, 0...2 bar, RA](/web/image/product.template/279949/image_128/%5B144797%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=3618223)
|
Type number: 5623B50L103 |
151.56 € | |
![[144798] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 20 µm, 0...4 bar, RA](/web/image/product.template/279950/image_128/%5B144798%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=0d2b75d)
|
Type number: 5623B52L103 |
151.56 € | |
![[144799] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 20 µm, 0...8 bar, RA](/web/image/product.template/279951/image_128/%5B144799%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%2020%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=832c634)
|
Type number: 5623B54L103 |
151.56 € | |
![[144796] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, 0...10 bar, RA](/web/image/product.template/279948/image_128/%5B144796%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=c16f22d)
|
Type number: 5623B46L103 |
151.56 € | |
![[144793] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, 0...2 bar, RA](/web/image/product.template/279945/image_128/%5B144793%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.2%20bar%2C%20RA?unique=f0dce38)
|
Type number: 5623B40L103 |
151.56 € | |
![[144794] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, 0...4 bar, RA](/web/image/product.template/279946/image_128/%5B144794%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.4%20bar%2C%20RA?unique=89318bc)
|
Type number: 5623B42L103 |
151.56 € | |
![[144795] RIEGLER Filter regulator + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, 0...8 bar, RA](/web/image/product.template/279947/image_128/%5B144795%5D%20RIEGLER%20Filter%20regulator%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%2C%200--.8%20bar%2C%20RA?unique=8c43c31)
|
Type number: 5623B44L103 |
151.56 € | |
![[144816] RIEGLER Filter regulator + oiler "SYNTESI", BG 2, G 3/4, 20 µm, 0...10 bar, RA](/web/image/product.template/279968/image_128/%5B144816%5D%20RIEGLER%20Filter%20regulator%20%2B%20oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%2020%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=cbe5b66)
|
Type number: 5625B56L105 |
171.35 € | |
![[144812] RIEGLER Filter regulator + oiler "SYNTESI", BG 2, G 3/4, 5 µm, 0...10 bar, RA](/web/image/product.template/279964/image_128/%5B144812%5D%20RIEGLER%20Filter%20regulator%20%2B%20oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%2C%200--.10%20bar%2C%20RA?unique=cf7ef5a)
|
Type number: 5625B46L105 |
171.35 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=04b7896)
|
Type number: 32 |
34.57 € | |
![[101222] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 2.5 bar/36 psi](/web/image/product.template/140658/image_128/%5B101222%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%202.5%20bar-36%20psi?unique=108b1a2)
|
Type number: 214-KD |
6.30 € | |
![[101674] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 2.5 bar/36 psi](/web/image/product.template/169646/image_128/%5B101674%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%202.5%20bar-36%20psi?unique=9737e00)
|
Type number: 203-KD |
6.30 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=fff71be)
|
Type number: 9210010 |
6.88 € | |
![[145474] RIEGLER Metal Work pressure gauge, G 1/4 rear, 0-12 bar, Ø63](/web/image/product.template/279230/image_128/%5B145474%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-4%20rear%2C%200-12%20bar%2C%20%C3%9863?unique=0e90b5c)
|
Type number: 9900101 |
13.08 € | |
![[145477] RIEGLER Adapter for pressure gauge, G 1/4 AG, G 1/8 IG](/web/image/product.template/279233/image_128/%5B145477%5D%20RIEGLER%20Adapter%20for%20pressure%20gauge%2C%20G%201-4%20AG%2C%20G%201-8%20IG?unique=4163259)
|
Type number: 9210005 |
2.50 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=3c68e33)
|
Type number: 9210019 |
6.40 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=760151b)
|
Type number: 9210006 |
6.56 € | |
![[145506] RIEGLER Assembly wrench for "SYNTESI" container, BG 2](/web/image/product.template/279262/image_128/%5B145506%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20container%2C%20BG%202?unique=c8a30fb)
|
Type number: 9210050 |
78.43 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=7fadc5c)
|
Type number: 9210031 |
0.76 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=95e3395)
|
Type number: 9062401 |
12.10 € | |
![[145614] RIEGLER SYNTESI" container, BG 2, RMSA semi-automatic](/web/image/product.template/279271/image_128/%5B145614%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RMSA%20semi-automatic?unique=f6bebab)
|
Type number: 9210105 |
14.66 € | |
![[145616] RIEGLER SYNTESI" container, BG 2, SAC fully automatic](/web/image/product.template/279273/image_128/%5B145616%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20SAC%20fully%20automatic?unique=baf7054)
|
Type number: 9210107 |
23.12 € | |
![[145623] RIEGLER Filter element "SYNTESI", BG 2, 20 µm](/web/image/product.template/279280/image_128/%5B145623%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2020%20%C2%B5m?unique=b9581b8)
|
Type number: 9210156 |
6.50 € | |
![[145624] RIEGLER Filter element "SYNTESI", BG 2, 50 µm](/web/image/product.template/279281/image_128/%5B145624%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2050%20%C2%B5m?unique=cc81342)
|
Type number: 9210157 |
6.50 € | |
![[145655] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 20 µm](/web/image/product.template/279312/image_128/%5B145655%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%2020%20%C2%B5m?unique=93d8c97)
|
Type number: 9210232 |
10.84 € | |
![[145656] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 50 µm](/web/image/product.template/279313/image_128/%5B145656%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%2050%20%C2%B5m?unique=0f0feb5)
|
Type number: 9210233 |
10.84 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=8da6162)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=e3c435e)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145609] RIEGLER Automatic drain valve "SYNTESI", RA](/web/image/product.template/279266/image_128/%5B145609%5D%20RIEGLER%20Automatic%20drain%20valve%20%22SYNTESI%22%2C%20RA?unique=e736bf7)
|
Type number: 9000802 |
37.41 € | |
![[145618] RIEGLER Container for oiler "SYNTESI", BG 2](/web/image/product.template/279275/image_128/%5B145618%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%202?unique=45eff80)
|
Type number: 9210115 |
11.75 € | |
![[145622] RIEGLER Filter element "SYNTESI", BG 2, 5 µm](/web/image/product.template/279279/image_128/%5B145622%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=a6806d3)
|
Type number: 9210155 |
6.50 € | |
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=b7f98b5)
|
Type number: 233.03-N |
0.62 € | |
![[145630] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 2, with oil filler plug](/web/image/product.template/279287/image_128/%5B145630%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%202%2C%20with%20oil%20filler%20plug?unique=c205d50)
|
Type number: 9210185 |
10.23 € | |
![[145632] RIEGLER Oil filler plug "SYNTESI", BG 2](/web/image/product.template/279289/image_128/%5B145632%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%202?unique=11287a1)
|
Type number: 9210186 |
2.18 € | |
![[145645] RIEGLER Regulator attachment (bell) "SYNTESI", BG 2, 0 - 2 bar](/web/image/product.template/279302/image_128/%5B145645%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%202%2C%200%20-%202%20bar?unique=11db59c)
|
Type number: 9210220 |
25.34 € | |
![[145615] RIEGLER SYNTESI" container, BG 2, RA fully automatic](/web/image/product.template/279272/image_128/%5B145615%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RA%20fully%20automatic?unique=386a66e)
|
Type number: 9210106 |
38.76 € | |
![[145637] RIEGLER SYNTESI" spring, BG 2, 0 - 2 bar](/web/image/product.template/279294/image_128/%5B145637%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%202%2C%200%20-%202%20bar?unique=fa05e3f)
|
Type number: 9210195 |
4.72 € | |
![[144692] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1/2, incl. 2 screws](/web/image/product.template/277874/image_128/%5B144692%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20incl.%202%20screws?unique=0c5b3b6)
|
Type number: 9210012 |
5.85 € | |
![[145654] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 5 µm](/web/image/product.template/279311/image_128/%5B145654%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=a7e72e3)
|
Type number: 9210231 |
10.84 € | |
