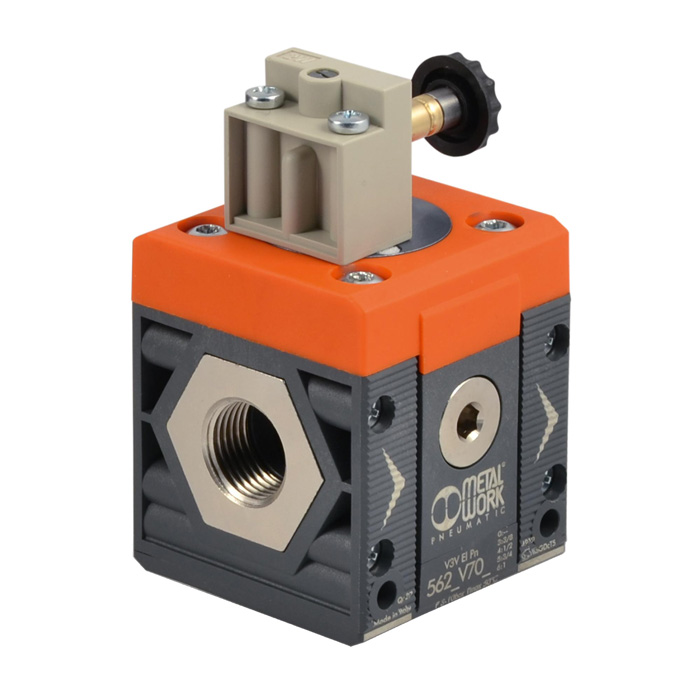

Shut-off valve "SYNTESI", electric, BG2, without sockets
Type number: VSTMV.A/B.MS.N.RV.50.K
EAN: 4047322763417
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
| Inlet pressure min. | 3 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 113 mm |
| Exhaust air | G 1/4 |
| Flow_2 | 4000 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Series | Syntesi |
| F | 42.7 mm |
| Flow_1 | 3000 Nl/min |
| Vent flow rate at 6.3 | 2000 Nl/min |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

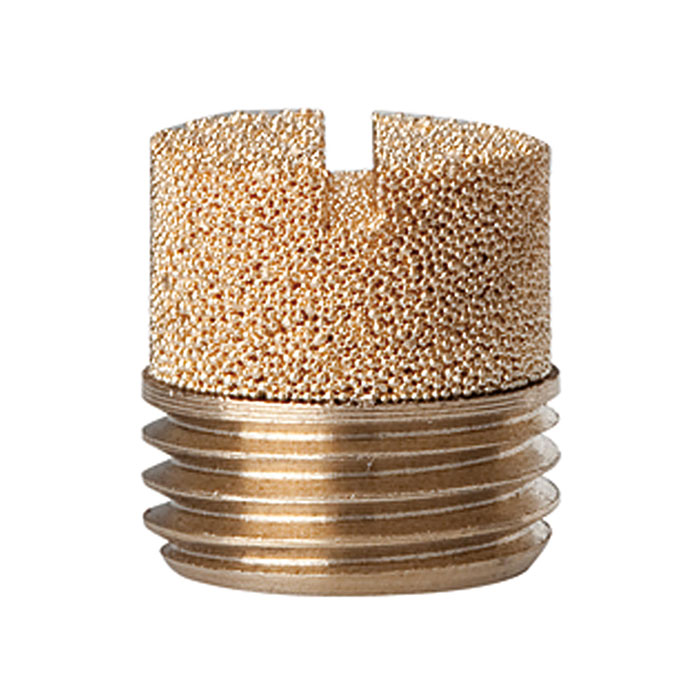

![[100289] RIEGLER Sintered bronze silencer, Slot, G 1/4](/web/image/product.template/139724/image_128/%5B100289%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-4?unique=da1a078)
|
Type number: 564-2 EAN: 4047322100991 |
2.38 € | |

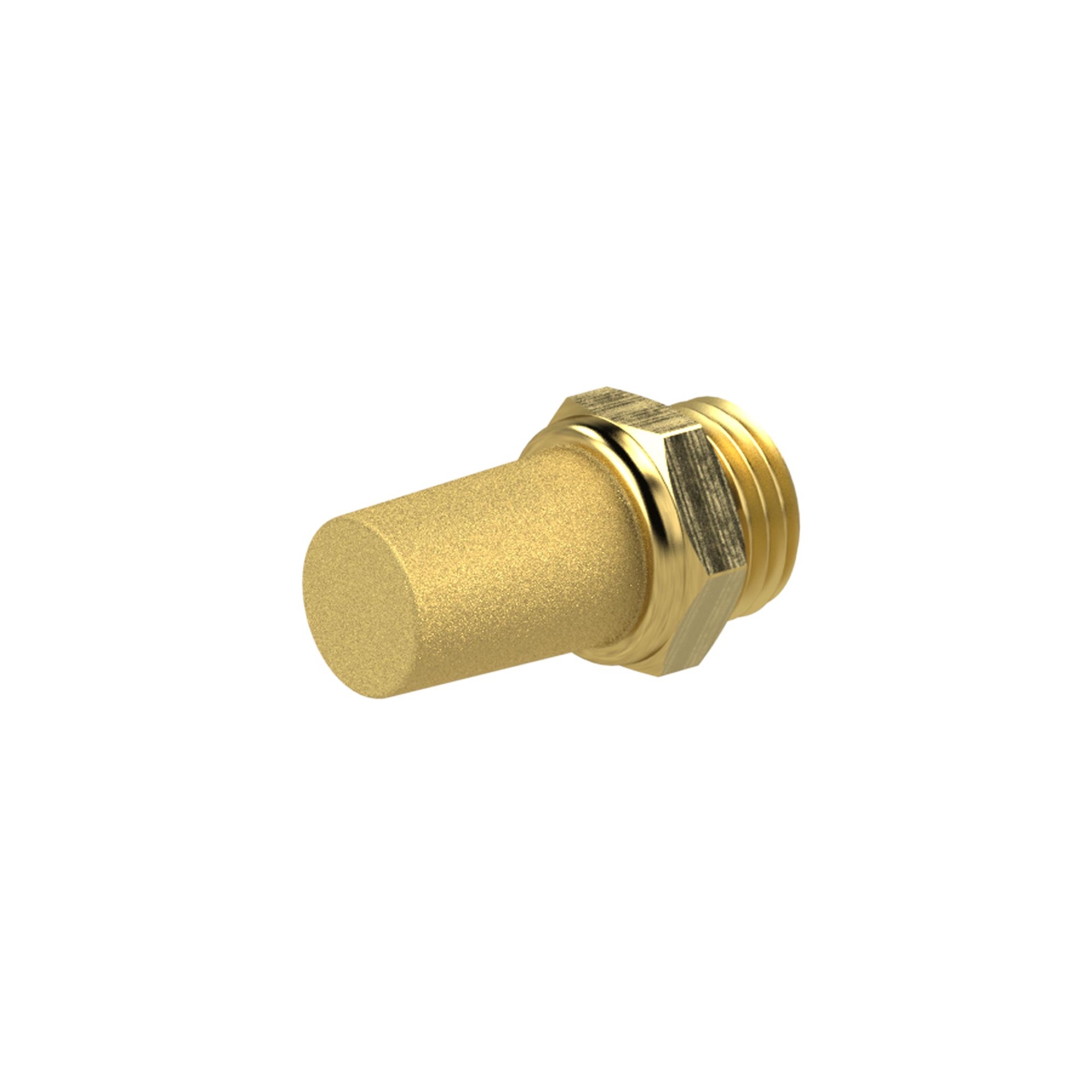

![[100290] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/4, AF 15](/web/image/product.template/139725/image_128/%5B100290%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-4%2C%20AF%2015?unique=2bec762)
|
Type number: 567-2/M EAN: 4047322101172 |
2.82 € | |
![[117313] RIEGLER Device plug, 22 mm, type B](/web/image/product.template/274839/image_128/%5B117313%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B?unique=67e86ad)
|
Type number: FDRNBR1711 EAN: 4047322032636 |
1.33 € | |
![[117314] RIEGLER Appliance plug with LED, 230 V, 22 mm, type B](/web/image/product.template/274840/image_128/%5B117314%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20230%20V%2C%2022%20mm%2C%20type%20B?unique=6830580)
|
Type number: FDRNBR20514 EAN: 4047322032643 |
5.84 € | |

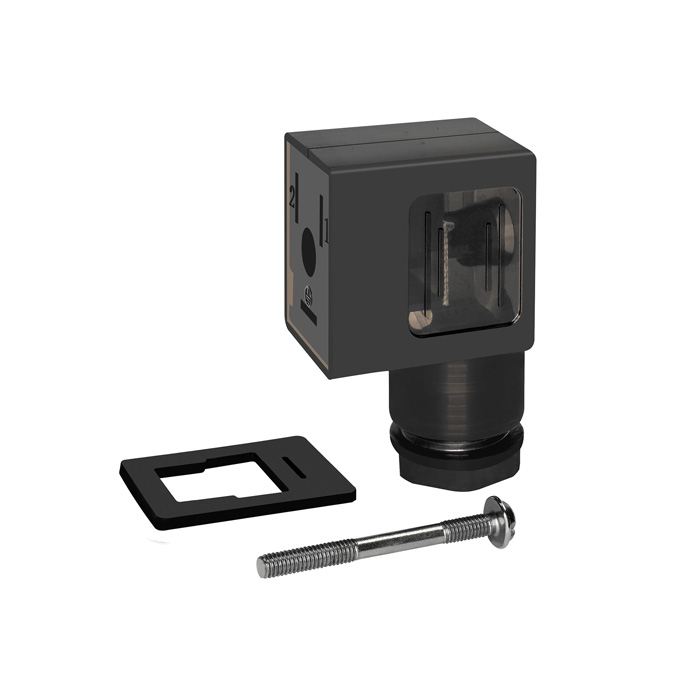

![[117316] RIEGLER Device plug with LED, 24 V, 22 mm, type B](/web/image/product.template/274841/image_128/%5B117316%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%2024%20V%2C%2022%20mm%2C%20type%20B?unique=4d1a1eb)
|
Type number: FDRNBR2618 EAN: 4047322032650 |
5.84 € | |
![[117317] RIEGLER Device plug with LED, varistor 230 V, 22 mm, type B](/web/image/product.template/274842/image_128/%5B117317%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20230%20V%2C%2022%20mm%2C%20type%20B?unique=70b4786)
|
Type number: FDRNBR3323 EAN: 4047322032667 |
5.84 € | |
![[117318] RIEGLER Device plug with LED, varistor 24 V, 22 mm, type B](/web/image/product.template/274843/image_128/%5B117318%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%2024%20V%2C%2022%20mm%2C%20type%20B?unique=23287b2)
|
Type number: FDRNBR4230 EAN: 4047322032674 |
5.84 € | |
![[118628] Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275044/image_128/%5B118628%5D%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=ad8d8dd)
|
Type number: 5610R100 EAN: 4047322083973 |
8.90 € | |

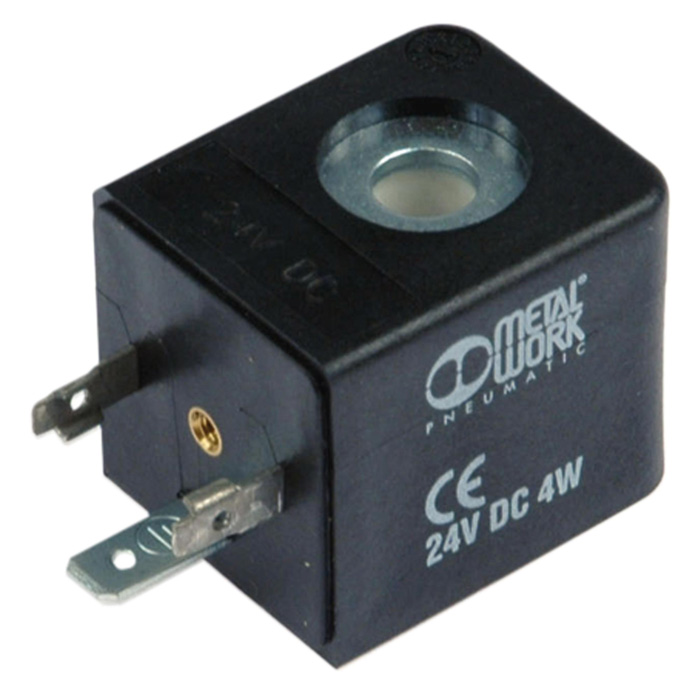

![[118629] Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275045/image_128/%5B118629%5D%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=a2cede9)
|
Type number: 5610R120 EAN: 4047322083980 |
8.90 € | |

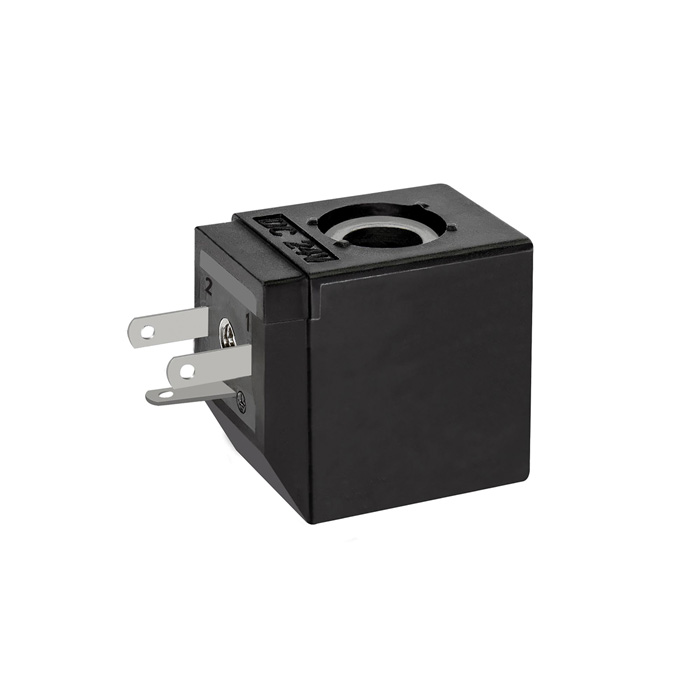

![[118630] Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275046/image_128/%5B118630%5D%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=870295c)
|
Type number: 5610R140 EAN: 4047322083997 |
8.90 € | |
![[118631] Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W](/web/image/product.template/275047/image_128/%5B118631%5D%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%202%20W?unique=ccce772)
|
Type number: 5610R160 EAN: 4047322084000 |
8.90 € | |
![[118632] Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 2 W](/web/image/product.template/275048/image_128/%5B118632%5D%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20DC%2C%202%20W?unique=30cb2a8)
|
Type number: 5611R101 EAN: 4047322084017 |
8.90 € | |
![[123182] RIEGLER Device plug, 22 mm, type B, ATEX II 2 GD](/web/image/product.template/281003/image_128/%5B123182%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B%2C%20ATEX%20II%202%20GD?unique=82380b8)
|
Type number: FU 7254 EAN: 4047322368353 |
2.14 € | |
![[129849] RIEGLER Device plug with LED, varistor 110 V, 22 mm, type B](/web/image/product.template/273069/image_128/%5B129849%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20110%20V%2C%2022%20mm%2C%20type%20B?unique=50eae59)
|
Type number: 5626F50L106 EAN: 4047322740562 |
5.84 € | |
![[144691] Threaded connection socket "SYNTESI", BG 2, G 3/8, incl. 2 screws](/web/image/product.template/277873/image_128/%5B144691%5D%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%20incl.%202%20screws?unique=047c1ef)
|
Type number: MVA.34.MS.230.F.RV.20 EAN: 4047322760553 |
5.21 € | |
![[144692] Threaded connection socket "SYNTESI", BG 2, G 1/2, incl. 2 screws](/web/image/product.template/277874/image_128/%5B144692%5D%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20incl.%202%20screws?unique=c1debc9)
|
Type number: MVA.34.MS.24A.F.RV.20 EAN: 4047322760560 |
5.21 € | |
![[144693] Threaded connection socket "SYNTESI", BG 2, G 3/4, incl. 2 screws](/web/image/product.template/277875/image_128/%5B144693%5D%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%20incl.%202%20screws?unique=f053827)
|
Type number: MVA.34.MS.110.F.RV.20 EAN: 4047322760577 |
9.14 € | |
![[144694] Threaded connection socket "SYNTESI", BG 2, G 1, incl. 2 screws](/web/image/product.template/277876/image_128/%5B144694%5D%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%20incl.%202%20screws?unique=42b8948)
|
Type number: MVA.34.MS.230.N.RV.20 EAN: 4047322760584 |
9.14 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=9a5e075)
|
Type number: MVA.34.MS.110.N.RV.20 EAN: 4047322760607 |
6.13 € | |
![[145478] Solenoid coil, 30 mm x Ø 8 mm, 24 V DC, 4 W](/web/image/product.template/279234/image_128/%5B145478%5D%20Solenoid%20coil%2C%2030%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20DC%2C%204%20W?unique=5dbb885)
|
Type number: 5801-R EAN: 4047322770149 |
10.92 € | |
![[145479] Solenoid coil, 30 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/279235/image_128/%5B145479%5D%20Solenoid%20coil%2C%2030%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=07e2162)
|
Type number: 5802-R EAN: 4047322770156 |
10.92 € | |
![[145480] Solenoid coil, 30 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/279236/image_128/%5B145480%5D%20Solenoid%20coil%2C%2030%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=4166a9b)
|
Type number: 5803-R EAN: 4047322770163 |
10.92 € | |
![[145481] Solenoid coil, 30 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/279237/image_128/%5B145481%5D%20Solenoid%20coil%2C%2030%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=2fdbed6)
|
Type number: 5812-R EAN: 4047322770170 |
10.92 € | |
![[145482] Solenoid coil set 30 mm, 24 V DC, ATEX II 2 GD, with 3 m cable](/web/image/product.template/279238/image_128/%5B145482%5D%20Solenoid%20coil%20set%2030%20mm%2C%2024%20V%20DC%2C%20ATEX%20II%202%20GD%2C%20with%203%20m%20cable?unique=3c98236)
|
Type number: 5813-R EAN: 4047322770187 |
70.25 € | |
![[145483] Solenoid coil set 30 mm, 24 V DC, ATEX II 2 GD, with 5 m cable](/web/image/product.template/279239/image_128/%5B145483%5D%20Solenoid%20coil%20set%2030%20mm%2C%2024%20V%20DC%2C%20ATEX%20II%202%20GD%2C%20with%205%20m%20cable?unique=08d0b47)
|
Type number: 5814-R EAN: 4047322770194 |
73.98 € | |
![[145484] Solenoid coil set 30 mm, 24 V AC, ATEX II 2 GD, with 3 m cable](/web/image/product.template/279240/image_128/%5B145484%5D%20Solenoid%20coil%20set%2030%20mm%2C%2024%20V%20AC%2C%20ATEX%20II%202%20GD%2C%20with%203%20m%20cable?unique=82c3382)
|
Type number: 5815-R EAN: 4047322770200 |
72.67 € | |
![[145485] Solenoid coil set 30 mm, 24 V AC, ATEX II 2 GD, with 5 m cable](/web/image/product.template/279241/image_128/%5B145485%5D%20Solenoid%20coil%20set%2030%20mm%2C%2024%20V%20AC%2C%20ATEX%20II%202%20GD%2C%20with%205%20m%20cable?unique=58258ba)
|
Type number: 5816-R EAN: 4047322770217 |
75.86 € | |
![[145486] Solenoid coil set 30 mm, 110 V AC, ATEX II 2 GD, with 3 m cable](/web/image/product.template/279242/image_128/%5B145486%5D%20Solenoid%20coil%20set%2030%20mm%2C%20110%20V%20AC%2C%20ATEX%20II%202%20GD%2C%20with%203%20m%20cable?unique=2f7e13c)
|
Type number: 5817-R EAN: 4047322770224 |
72.67 € | |
![[145487] Solenoid coil set 30 mm, 110 V AC, ATEX II 2 GD, with 5 m cable](/web/image/product.template/279243/image_128/%5B145487%5D%20Solenoid%20coil%20set%2030%20mm%2C%20110%20V%20AC%2C%20ATEX%20II%202%20GD%2C%20with%205%20m%20cable?unique=40dd17e)
|
Type number: 6801-R EAN: 4047322770231 |
75.86 € | |

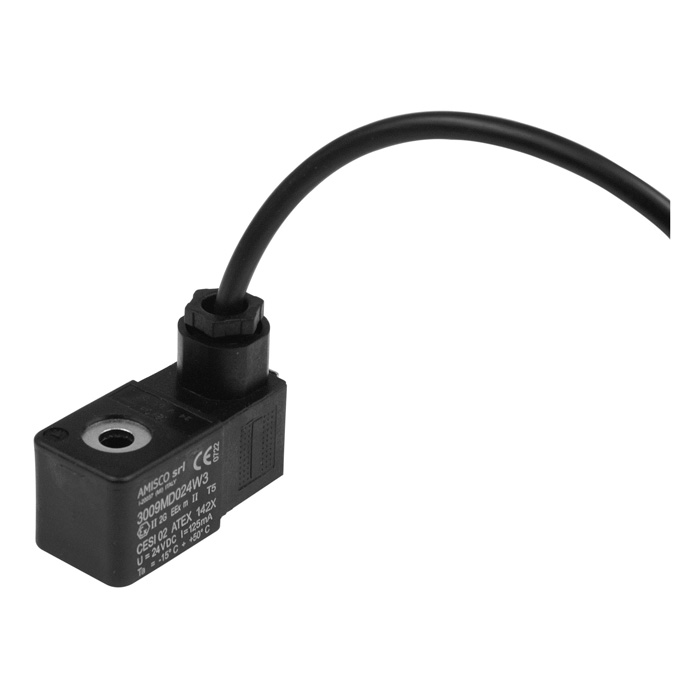

![[145488] Solenoid coil set 30 mm, 230 V AC, ATEX II 2 GD, with 3 m cable](/web/image/product.template/279244/image_128/%5B145488%5D%20Solenoid%20coil%20set%2030%20mm%2C%20230%20V%20AC%2C%20ATEX%20II%202%20GD%2C%20with%203%20m%20cable?unique=53ed6d7)
|
Type number: 6802-R EAN: 4047322770248 |
72.67 € | |
![[145489] Solenoid coil set 30 mm, 230 V AC, ATEX II 2 GD, with 5 m cable](/web/image/product.template/279245/image_128/%5B145489%5D%20Solenoid%20coil%20set%2030%20mm%2C%20230%20V%20AC%2C%20ATEX%20II%202%20GD%2C%20with%205%20m%20cable?unique=ba6ed6c)
|
Type number: 6803-R EAN: 4047322770255 |
75.86 € | |
![[145490] RIEGLER Device plug, 30 mm, type A](/web/image/product.template/279246/image_128/%5B145490%5D%20RIEGLER%20Device%20plug%2C%2030%20mm%2C%20type%20A?unique=5f24e63)
|
Type number: 6804-R EAN: 4047322770262 |
1.37 € | |
![[145491] RIEGLER Device plug with LED, 24 V, 30 mm, type A](/web/image/product.template/279247/image_128/%5B145491%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%2024%20V%2C%2030%20mm%2C%20type%20A?unique=2d168fc)
|
Type number: 6805-R EAN: 4047322770279 |
5.84 € | |

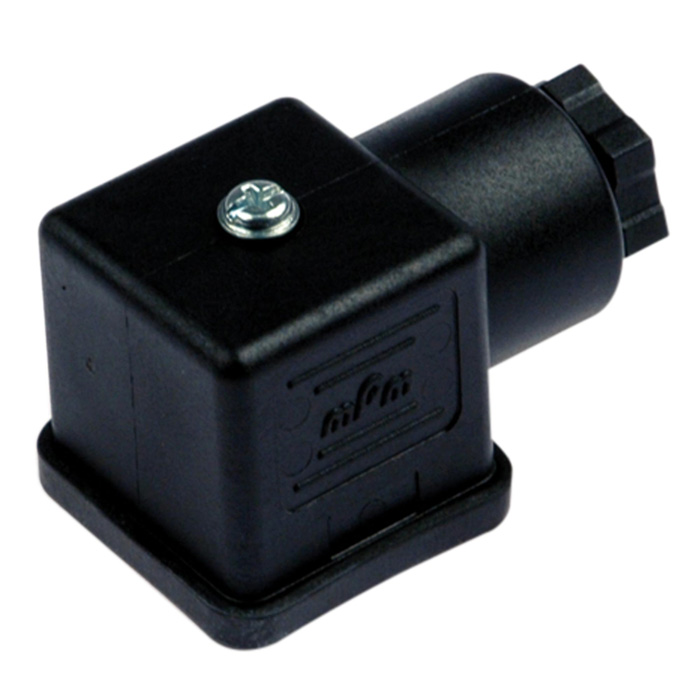

![[145492] RIEGLER Appliance plug with LED, 110 V, 30 mm, type A](/web/image/product.template/279248/image_128/%5B145492%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20110%20V%2C%2030%20mm%2C%20type%20A?unique=07c9178)
|
Type number: 6811-R EAN: 4047322770286 |
5.84 € | |
![[145493] RIEGLER Appliance plug with LED, 230 V, 30 mm, type A](/web/image/product.template/279249/image_128/%5B145493%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20230%20V%2C%2030%20mm%2C%20type%20A?unique=e60a73c)
|
Type number: 6812-R EAN: 4047322770293 |
5.84 € | |
![[145494] RIEGLER Device plug with LED, varistor 24 V, 30 mm, type A](/web/image/product.template/279250/image_128/%5B145494%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%2024%20V%2C%2030%20mm%2C%20type%20A?unique=c4a726c)
|
Type number: 6813-R EAN: 4047322770309 |
5.84 € | |
![[145495] RIEGLER Device plug with LED, varistor 110 V, 30 mm, type A](/web/image/product.template/279251/image_128/%5B145495%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20110%20V%2C%2030%20mm%2C%20type%20A?unique=ac25dd9)
|
Type number: 6814-R EAN: 4047322770316 |
5.84 € | |
![[145496] RIEGLER Device plug with LED, varistor 230 V, 30 mm, type A](/web/image/product.template/279252/image_128/%5B145496%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20230%20V%2C%2030%20mm%2C%20type%20A?unique=a0b4f1c)
|
Type number: 6815-R EAN: 4047322770323 |
5.84 € | |

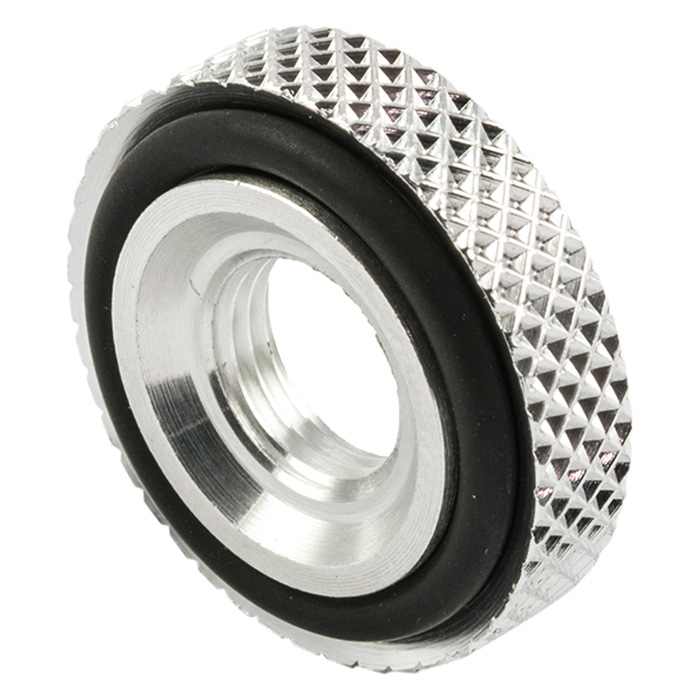

![[145501] RIEGLER Knurled nut, for coil 22 mm, IP 65](/web/image/product.template/279257/image_128/%5B145501%5D%20RIEGLER%20Knurled%20nut%2C%20for%20coil%2022%20mm%2C%20IP%2065?unique=dad1f26)
|
Type number: 5823-R EAN: 4047322770378 |
4.26 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=2175652)
|
Type number: 5825-R EAN: 4047322770392 |
5.78 € | |
![[145504] Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=1f55ad5)
|
Type number: 5826-R EAN: 4047322770408 |
5.84 € | |
![[145508] SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=5931d18)
|
Type number: 6823-R EAN: 4047322770446 |
0.68 € | |
![[145659] SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=036dde5)
|
Type number: 2058189 EAN: 4047322771054 |
13.97 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=ba07d72)
|
Type number: 2073315 EAN: 4047322771061 |
17.15 € | |
![[151011] RIEGLER Appliance plug with LED, 110 V, 22 mm, type B](/web/image/product.template/276002/image_128/%5B151011%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20110%20V%2C%2022%20mm%2C%20type%20B?unique=c5ab233)
|
Type number: 0226005150 EAN: 4047322589741 |
5.84 € | |
