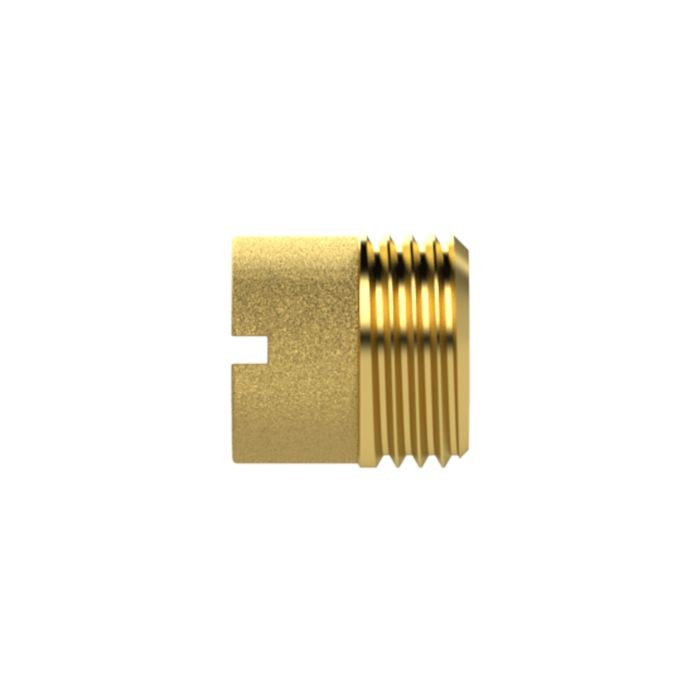

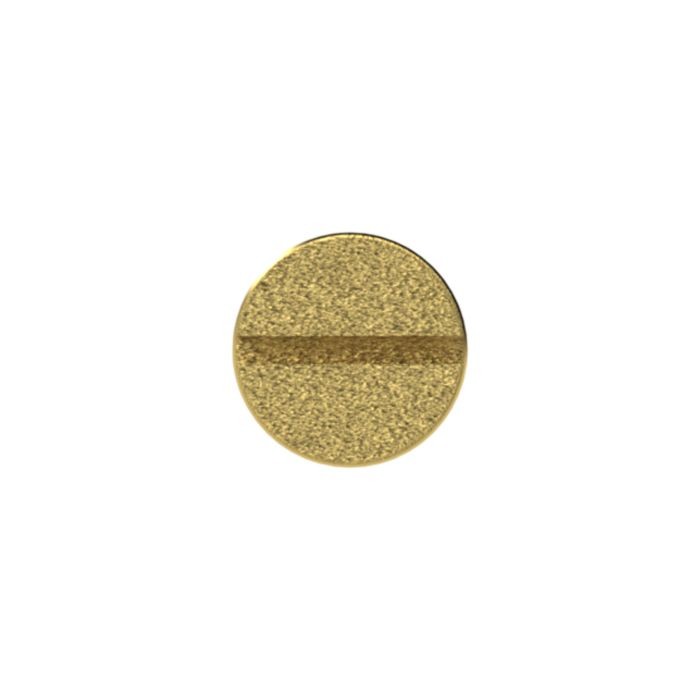

RIEGLER Sintered bronze silencer, Slot, G 1/4
Type number: 564-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Sintered bronze silencer, slot, G 1/4, operating pressure max. 10 bar, operating temperature -10 °C to 250 °C
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 1/4 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

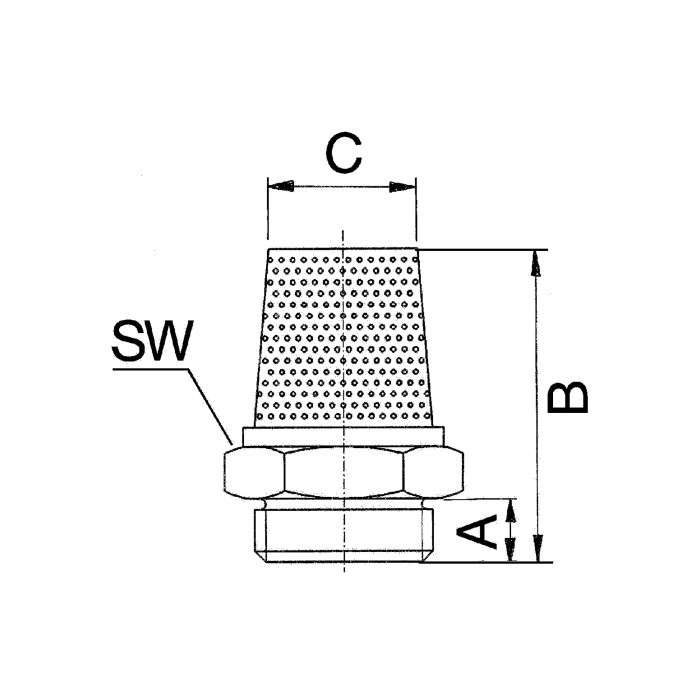

| A | 6.5 mm |
| B | 13.5 mm |
| C | 12.6 mm |
| Description of the | Silencer sintered bronze, short |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | EASY |
