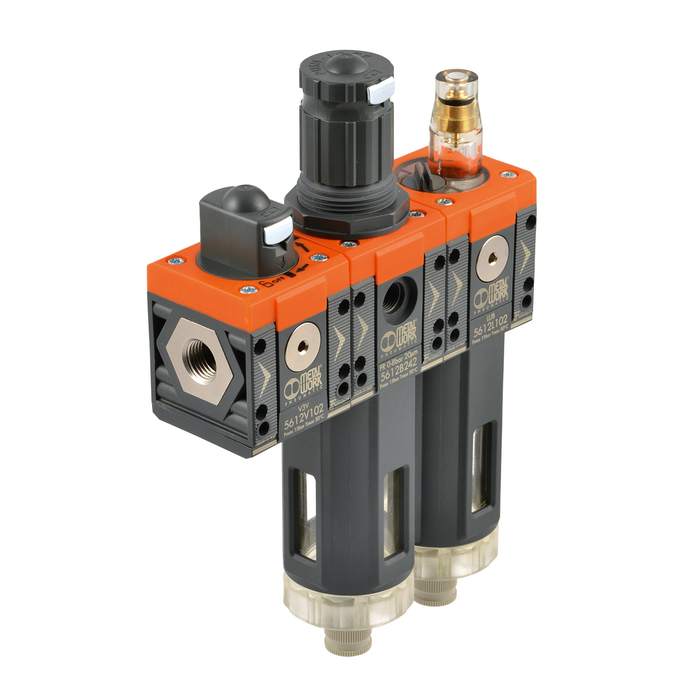

RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 5µm, 0...8 bar, RMSA
Type number: 5612V10B14L102
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Shut-off valve+filter reg.+lub.»SYNTESI«, size 1, G1/4, 5 µm, p1 max.=15 bar, p2=0…8 bar, RMSA semi-auto., T=-10…50°C, w/o gauge
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| Control range min. | 0 bar |
| Control range max. | 8 bar |
| BG | 1 |
| Input connection | G 1/4 |
| Output connection | G 1/4 |
| A | 126 mm |
| B | 198 mm |
| Flow_1 | 250 Nl/min |
| Flow_2 | 1050 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 122.2 mm |
| Air purity class at the outlet according to | 3.7.- |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Spring cover | Technopolymer |
| Condensate drain |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144982] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 20µm, 0...12 bar, RMSA](/web/image/product.template/280069/image_128/%5B144982%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=fdf68ad)
|
Type number: 5612V10B26L102 |
123.45 € | |
![[144979] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 20µm, 0...2 bar, RMSA](/web/image/product.template/280066/image_128/%5B144979%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=233f4a2)
|
Type number: 5612V10B20L102 |
123.45 € | |
![[144980] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 20µm, 0...4 bar, RMSA](/web/image/product.template/280067/image_128/%5B144980%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=884bb35)
|
Type number: 5612V10B22L102 |
123.45 € | |
![[144981] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 20µm, 0...8 bar, RMSA](/web/image/product.template/280068/image_128/%5B144981%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=fe94fc5)
|
Type number: 5612V10B24L102 |
123.45 € | |
![[144978] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 5µm, 0...12 bar, RMSA](/web/image/product.template/280065/image_128/%5B144978%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=bdf896b)
|
Type number: 5612V10B16L102 |
123.45 € | |
![[144975] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 5µm, 0...2 bar, RMSA](/web/image/product.template/280062/image_128/%5B144975%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=1a8cbbe)
|
Type number: 5612V10B10L102 |
123.45 € | |
![[144976] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/4, 5µm, 0...4 bar, RMSA](/web/image/product.template/280063/image_128/%5B144976%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=1bf9326)
|
Type number: 5612V10B12L102 |
123.45 € | |
![[144974] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 20µm, 0...12 bar, RMSA](/web/image/product.template/280061/image_128/%5B144974%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=51fc5ab)
|
Type number: 5611V10B26L101 |
123.45 € | |
![[144971] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 20µm, 0...2 bar, RMSA](/web/image/product.template/280058/image_128/%5B144971%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=97cde1b)
|
Type number: 5611V10B20L101 |
123.45 € | |
![[144972] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 20µm, 0...4 bar, RMSA](/web/image/product.template/280059/image_128/%5B144972%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=6811367)
|
Type number: 5611V10B22L101 |
123.45 € | |
![[144973] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 20µm, 0...8 bar, RMSA](/web/image/product.template/280060/image_128/%5B144973%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=c8928a2)
|
Type number: 5611V10B24L101 |
123.45 € | |
![[144970] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 5µm, 0...12 bar, RMSA](/web/image/product.template/280057/image_128/%5B144970%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=764736c)
|
Type number: 5611V10B16L101 |
123.45 € | |
![[144967] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 5µm, 0...2 bar, RMSA](/web/image/product.template/280054/image_128/%5B144967%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=d2fcb45)
|
Type number: 5611V10B10L101 |
123.45 € | |
![[144968] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 5µm, 0...4 bar, RMSA](/web/image/product.template/280055/image_128/%5B144968%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=a309f22)
|
Type number: 5611V10B12L101 |
123.45 € | |
![[144969] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 5µm, 0...8 bar, RMSA](/web/image/product.template/280056/image_128/%5B144969%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=a6dbced)
|
Type number: 5611V10B14L101 |
123.45 € | |
![[144990] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 20µm, 0...12 bar, RMSA](/web/image/product.template/280077/image_128/%5B144990%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=f79fb83)
|
Type number: 5613V10B26L103 |
123.45 € | |
![[144987] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 20µm, 0...2 bar, RMSA](/web/image/product.template/280074/image_128/%5B144987%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=8b000b5)
|
Type number: 5613V10B20L103 |
123.45 € | |
![[144988] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 20µm, 0...4 bar, RMSA](/web/image/product.template/280075/image_128/%5B144988%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=80ed5a5)
|
Type number: 5613V10B22L103 |
123.45 € | |
![[144989] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 20µm, 0...8 bar, RMSA](/web/image/product.template/280076/image_128/%5B144989%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=9d94951)
|
Type number: 5613V10B24L103 |
123.45 € | |
![[144986] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 5µm, 0...12 bar, RMSA](/web/image/product.template/280073/image_128/%5B144986%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=da708b4)
|
Type number: 5613V10B16L103 |
123.45 € | |
![[144983] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 5µm, 0...2 bar, RMSA](/web/image/product.template/280070/image_128/%5B144983%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=654521f)
|
Type number: 5613V10B10L103 |
123.45 € | |
![[144984] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 5µm, 0...4 bar, RMSA](/web/image/product.template/280071/image_128/%5B144984%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=07b1739)
|
Type number: 5613V10B12L103 |
123.45 € | |
![[144985] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG1, G 3/8, 5µm, 0...8 bar, RMSA](/web/image/product.template/280072/image_128/%5B144985%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=0d8fd14)
|
Type number: 5613V10B14L103 |
123.45 € | |
![[145022] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 20µm, 0...12 bar, RMSA](/web/image/product.template/280109/image_128/%5B145022%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=eb30d4d)
|
Type number: 5626V10B26L106 |
198.81 € | |
![[145019] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 20µm, 0...2 bar, RMSA](/web/image/product.template/280106/image_128/%5B145019%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=cb0a950)
|
Type number: 5626V10B20L106 |
198.81 € | |
![[145020] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 20µm, 0...4 bar, RMSA](/web/image/product.template/280107/image_128/%5B145020%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=d55d324)
|
Type number: 5626V10B22L106 |
198.81 € | |
![[145021] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 20µm, 0...8 bar, RMSA](/web/image/product.template/280108/image_128/%5B145021%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=924f6b7)
|
Type number: 5626V10B24L106 |
198.81 € | |
![[145006] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 20µm, 0...12 bar, RMSA](/web/image/product.template/280093/image_128/%5B145006%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=eca5a85)
|
Type number: 5624V10B26L104 |
191.33 € | |
![[145003] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 20µm, 0...2 bar, RMSA](/web/image/product.template/280090/image_128/%5B145003%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=1bead17)
|
Type number: 5624V10B20L104 |
191.33 € | |
![[145004] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 20µm, 0...4 bar, RMSA](/web/image/product.template/280091/image_128/%5B145004%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=8206bcc)
|
Type number: 5624V10B22L104 |
191.33 € | |
![[145005] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 20µm, 0...8 bar, RMSA](/web/image/product.template/280092/image_128/%5B145005%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=50a8db1)
|
Type number: 5624V10B24L104 |
191.33 € | |
![[145002] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 5µm, 0...12 bar, RMSA](/web/image/product.template/280089/image_128/%5B145002%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=5b66575)
|
Type number: 5624V10B16L104 |
191.33 € | |
![[144999] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 5µm, 0...2 bar, RMSA](/web/image/product.template/280086/image_128/%5B144999%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=f776913)
|
Type number: 5624V10B10L104 |
191.33 € | |
![[145000] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 5µm, 0...4 bar, RMSA](/web/image/product.template/280087/image_128/%5B145000%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=bef8dba)
|
Type number: 5624V10B12L104 |
191.33 € | |
![[145001] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1/2, 5µm, 0...8 bar, RMSA](/web/image/product.template/280088/image_128/%5B145001%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=45b5739)
|
Type number: 5624V10B14L104 |
191.33 € | |
![[145018] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 5µm, 0...12 bar, RMSA](/web/image/product.template/280105/image_128/%5B145018%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=fb874ee)
|
Type number: 5626V10B16L106 |
198.81 € | |
![[145015] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 5µm, 0...2 bar, RMSA](/web/image/product.template/280102/image_128/%5B145015%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=1ec17fb)
|
Type number: 5626V10B10L106 |
198.81 € | |
![[145016] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 5µm, 0...4 bar, RMSA](/web/image/product.template/280103/image_128/%5B145016%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=25bb7ac)
|
Type number: 5626V10B12L106 |
198.81 € | |
![[145017] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 1, 5µm, 0...8 bar, RMSA](/web/image/product.template/280104/image_128/%5B145017%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=5a95a23)
|
Type number: 5626V10B14L106 |
198.81 € | |
![[145014] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 20µm, 0...12 bar, RMSA](/web/image/product.template/280101/image_128/%5B145014%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=ee29709)
|
Type number: 5625V10B26L105 |
198.81 € | |
![[145011] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 20µm, 0...2 bar, RMSA](/web/image/product.template/280098/image_128/%5B145011%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=e14dfc2)
|
Type number: 5625V10B20L105 |
198.81 € | |
![[145012] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 20µm, 0...4 bar, RMSA](/web/image/product.template/280099/image_128/%5B145012%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=f464aef)
|
Type number: 5625V10B22L105 |
198.81 € | |
![[145013] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 20µm, 0...8 bar, RMSA](/web/image/product.template/280100/image_128/%5B145013%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=f04858b)
|
Type number: 5625V10B24L105 |
198.81 € | |
![[145010] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 5µm, 0...12 bar, RMSA](/web/image/product.template/280097/image_128/%5B145010%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=239e965)
|
Type number: 5625V10B16L105 |
198.81 € | |
![[145007] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 5µm, 0...2 bar, RMSA](/web/image/product.template/280094/image_128/%5B145007%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=6d2d521)
|
Type number: 5625V10B10L105 |
198.81 € | |
![[145008] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 5µm, 0...4 bar, RMSA](/web/image/product.template/280095/image_128/%5B145008%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=21069bc)
|
Type number: 5625V10B12L105 |
198.81 € | |
![[145009] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/4, 5µm, 0...8 bar, RMSA](/web/image/product.template/280096/image_128/%5B145009%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=571f0e0)
|
Type number: 5625V10B14L105 |
198.81 € | |
![[144998] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 20µm, 0...12 bar, RMSA](/web/image/product.template/280085/image_128/%5B144998%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=f6a43ac)
|
Type number: 5623V10B26L103 |
191.33 € | |
![[144995] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 20µm, 0...2 bar, RMSA](/web/image/product.template/280082/image_128/%5B144995%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=d5e0de9)
|
Type number: 5623V10B20L103 |
191.33 € | |
![[144996] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 20µm, 0...4 bar, RMSA](/web/image/product.template/280083/image_128/%5B144996%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=14f2149)
|
Type number: 5623V10B22L103 |
191.33 € | |
![[144997] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 20µm, 0...8 bar, RMSA](/web/image/product.template/280084/image_128/%5B144997%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=1b8bc3a)
|
Type number: 5623V10B24L103 |
191.33 € | |
![[144994] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...12 bar, RMSA](/web/image/product.template/280081/image_128/%5B144994%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.12%20bar%2C%20RMSA?unique=e0119f0)
|
Type number: 5623V10B16L103 |
191.33 € | |
![[144991] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...2 bar, RMSA](/web/image/product.template/280078/image_128/%5B144991%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.2%20bar%2C%20RMSA?unique=56063cf)
|
Type number: 5623V10B10L103 |
191.33 € | |
![[144992] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...4 bar, RMSA](/web/image/product.template/280079/image_128/%5B144992%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.4%20bar%2C%20RMSA?unique=99f598e)
|
Type number: 5623V10B12L103 |
191.33 € | |
![[144993] RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...8 bar, RMSA](/web/image/product.template/280080/image_128/%5B144993%5D%20RIEGLER%20Shut-off%20valve%20%2B%20FR%20%2B%20oiler%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%200--.8%20bar%2C%20RMSA?unique=67dbbce)
|
Type number: 5623V10B14L103 |
191.33 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=a056128)
|
Type number: 32 |
34.57 € | |
![[101672] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 10 bar/145 psi](/web/image/product.template/169644/image_128/%5B101672%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2010%20bar-145%20psi?unique=6aa2ddb)
|
Type number: 110.46-KD |
6.15 € | |
![[113345] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/8, AF 12](/web/image/product.template/186246/image_128/%5B113345%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-8%2C%20AF%2012?unique=3240874)
|
Type number: 567-1/M |
2.46 € | |
![[113353] RIEGLER Sintered bronze silencer, Slot, G 1/8](/web/image/product.template/186254/image_128/%5B113353%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-8?unique=cd2f9eb)
|
Type number: 564-1 |
2.37 € | |
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=ece161d)
|
Type number: 9210000 |
2.73 € | |
![[145470] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-12 bar, Ø40](/web/image/product.template/279226/image_128/%5B145470%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-12%20bar%2C%20%C3%9840?unique=36ae545)
|
Type number: 9700101 |
9.69 € | |
![[145472] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-12 bar, Ø50](/web/image/product.template/279228/image_128/%5B145472%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-12%20bar%2C%20%C3%9850?unique=5580bfd)
|
Type number: 9800101 |
9.69 € | |
![[145475] RIEGLER Metal Work pressure gauge, G 1/8 rear, 0-4 bar,40x40](/web/image/product.template/279231/image_128/%5B145475%5D%20RIEGLER%20Metal%20Work%20pressure%20gauge%2C%20G%201-8%20rear%2C%200-4%20bar%2C40x40?unique=e02cb36)
|
Type number: 9700109 |
9.38 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=44c5c52)
|
Type number: 9210009 |
4.13 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=062fb2e)
|
Type number: 9210006 |
6.56 € | |
![[145505] RIEGLER Assembly wrench for "SYNTESI" BG 1, "bit" container](/web/image/product.template/279261/image_128/%5B145505%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20BG%201%2C%20%22bit%22%20container?unique=7d8f368)
|
Type number: 9170601 |
5.62 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=373acfd)
|
Type number: 9210030 |
0.26 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=0d4ee1b)
|
Type number: 9062401 |
12.10 € | |
![[145612] RIEGLER SYNTESI" container, BG 1, RA fully automatic](/web/image/product.template/279269/image_128/%5B145612%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RA%20fully%20automatic?unique=da99980)
|
Type number: 9210101 |
30.52 € | |
![[145613] RIEGLER SYNTESI" container, BG 1, SAC fully automatic](/web/image/product.template/279270/image_128/%5B145613%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20SAC%20fully%20automatic?unique=60b7b87)
|
Type number: 9210102 |
17.84 € | |
![[145620] RIEGLER Filter element "SYNTESI", BG 1, 20 µm](/web/image/product.template/279277/image_128/%5B145620%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%2020%20%C2%B5m?unique=729038b)
|
Type number: 9210151 |
4.97 € | |
![[145621] RIEGLER Filter element "SYNTESI", BG 1, 50 µm](/web/image/product.template/279278/image_128/%5B145621%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%2050%20%C2%B5m?unique=6964676)
|
Type number: 9210152 |
4.97 € | |
![[145652] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 20 µm](/web/image/product.template/279309/image_128/%5B145652%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%2020%20%C2%B5m?unique=0b91222)
|
Type number: 9210212 |
6.78 € | |
![[145653] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 50 µm](/web/image/product.template/279310/image_128/%5B145653%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%2050%20%C2%B5m?unique=309a3b9)
|
Type number: 9210213 |
6.78 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=e9d666b)
|
Type number: 9200716X |
13.64 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=0cf8781)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145617] RIEGLER Container for oiler "SYNTESI", BG 1](/web/image/product.template/279274/image_128/%5B145617%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%201?unique=d2ca91f)
|
Type number: 9210110 |
5.18 € | |
![[145619] RIEGLER Filter element "SYNTESI", BG 1, 5 µm](/web/image/product.template/279276/image_128/%5B145619%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=194a8c2)
|
Type number: 9210150 |
4.97 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=6527c29)
|
Type number: 233.02-N |
0.42 € | |
![[145629] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 1, with oil filler plug](/web/image/product.template/279286/image_128/%5B145629%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%201%2C%20with%20oil%20filler%20plug?unique=c85bd1b)
|
Type number: 9210180 |
5.43 € | |
![[145631] RIEGLER Oil filler plug "SYNTESI", BG 1](/web/image/product.template/279288/image_128/%5B145631%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%201?unique=874427a)
|
Type number: 9210181 |
1.98 € | |
![[145643] RIEGLER Regulator attachment (bell) "SYNTESI", BG 1, 0 - 8 bar](/web/image/product.template/279300/image_128/%5B145643%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%201%2C%200%20-%208%20bar?unique=072ad28)
|
Type number: 9210202 |
12.86 € | |
![[145611] RIEGLER SYNTESI" container, BG 1, RMSA semi-automatic](/web/image/product.template/279268/image_128/%5B145611%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RMSA%20semi-automatic?unique=7353a49)
|
Type number: 9210100 |
7.03 € | |
![[145635] RIEGLER SYNTESI" spring, BG 1, 0 - 8 bar](/web/image/product.template/279292/image_128/%5B145635%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%201%2C%200%20-%208%20bar?unique=0730cc6)
|
Type number: 9210192 |
2.42 € | |
![[144689] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/4, incl. 2 screws](/web/image/product.template/277871/image_128/%5B144689%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%20incl.%202%20screws?unique=c8e3d45)
|
Type number: 9210002 |
1.88 € | |

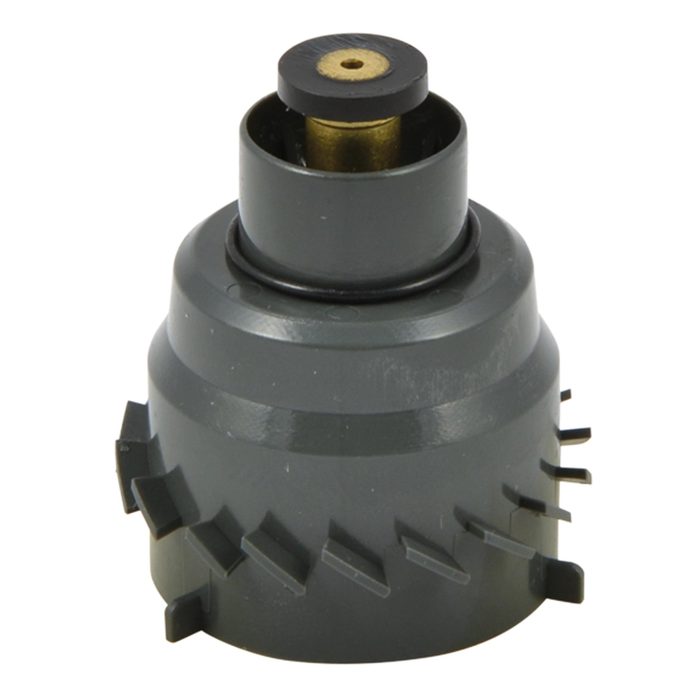

![[145651] RIEGLER Valve seat for filter regulator "SYNTESI", BG 1, 5 µm](/web/image/product.template/279308/image_128/%5B145651%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=d45d955)
|
