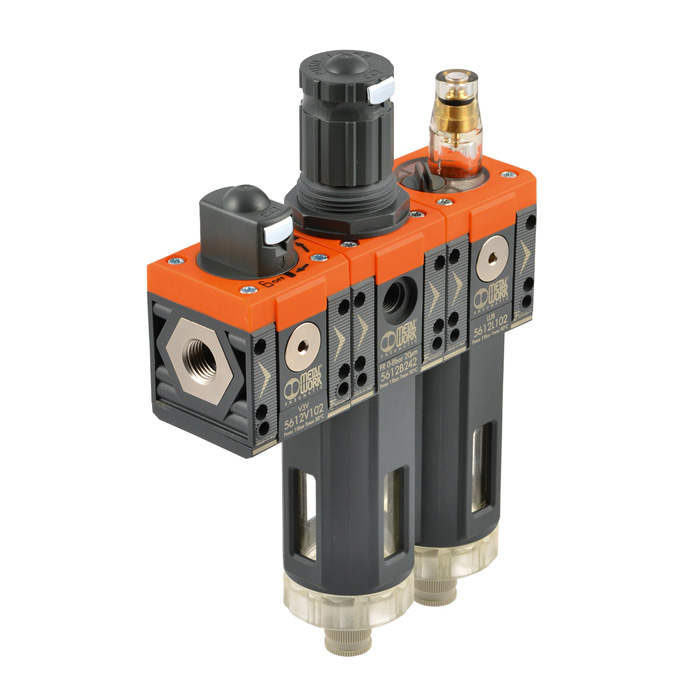

RIEGLER Shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...8 bar, RA
Type number: 5623V10B44L103
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Shut-off valve + FR + oiler "SYNTESI" made of technopolymer, for compressed air treatment, 0 bar - Type 5623V10B44L103
The RIEGLER shut-off valve + FR + oiler "SYNTESI", BG2, G 3/8, 5µm, 0...8 bar, RA combines compressed air filter, regulator and oiler in one compact maintenance unit. The housing is made of technopolymer with NBR seals. The control range extends from 0 bar to 8 bar with a maximum inlet pressure of 10 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Filter fineness 5 µm, container made of technopolymer. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| Control range min. | 0 bar |
| Control range max. | 8 bar |
| BG | 2 |
| Input connection | G 3/8 |
| Output connection | |
| A | 181.5 mm |
| B | 250 mm |
| Flow 1 | 1200 Nl/min |
| Flow 2 | 4000 Nl/min |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 143.8 mm |
| Air purity class at the outlet according to | 3.7.- |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Spring cover | Technopolymer |
| Condensate drain | RA fully automatic |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145609] RIEGLER Automatic drain valve "SYNTESI", RA](/web/image/product.template/279266/image_128/%5B145609%5D%20RIEGLER%20Automatic%20drain%20valve%20%22SYNTESI%22%2C%20RA?unique=22f46d4)
|
Type number: 9000802 |
37.41 € | |
![[145618] RIEGLER Container for oiler "SYNTESI", BG 2](/web/image/product.template/279275/image_128/%5B145618%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%202?unique=3fe05ad)
|
Type number: 9210115 |
11.75 € | |

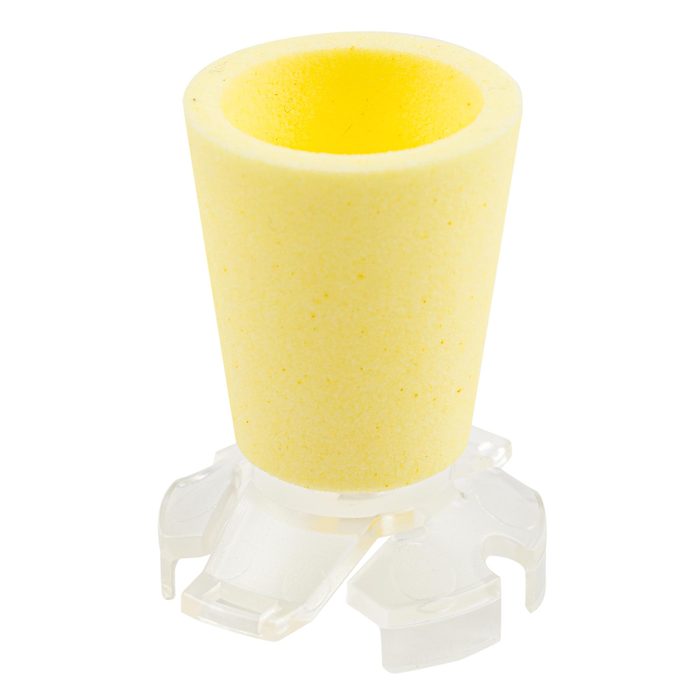

![[145622] RIEGLER Filter element "SYNTESI", BG 2, 5 µm](/web/image/product.template/279279/image_128/%5B145622%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=ea557e6)
|
Type number: 9210155 |
6.41 € | |
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=6256297)
|
Type number: 233.03-N |
0.62 € | |
![[145630] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 2, with oil filler plug](/web/image/product.template/279287/image_128/%5B145630%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%202%2C%20with%20oil%20filler%20plug?unique=b321114)
|
Type number: 9210185 |
10.23 € | |
![[145632] RIEGLER Oil filler plug "SYNTESI", BG 2](/web/image/product.template/279289/image_128/%5B145632%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%202?unique=1023c1c)
|
Type number: 9210186 |
2.18 € | |
![[145647] RIEGLER Regulator attachment (bell) "SYNTESI", BG 2, 0 - 8 bar](/web/image/product.template/279304/image_128/%5B145647%5D%20RIEGLER%20Regulator%20attachment%20%28bell%29%20%22SYNTESI%22%2C%20BG%202%2C%200%20-%208%20bar?unique=2f39518)
|
Type number: 9210222 |
23.48 € | |
![[145615] RIEGLER SYNTESI" container, BG 2, RA fully automatic](/web/image/product.template/279272/image_128/%5B145615%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RA%20fully%20automatic?unique=331d3d5)
|
Type number: 9210106 |
38.75 € | |
![[145639] RIEGLER SYNTESI" spring, BG 2, 0 - 8 bar](/web/image/product.template/279296/image_128/%5B145639%5D%20RIEGLER%20SYNTESI%22%20spring%2C%20BG%202%2C%200%20-%208%20bar?unique=bb050f5)
|
Type number: 9210197 |
3.15 € | |
![[144691] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/8, incl. 2 screws](/web/image/product.template/277873/image_128/%5B144691%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%20incl.%202%20screws?unique=ed99218)
|
Type number: 9210011 |
5.77 € | |

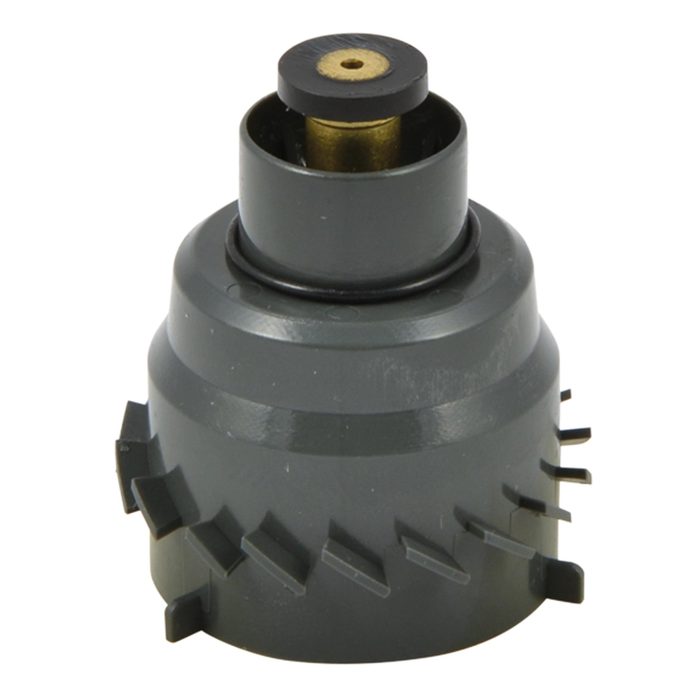

![[145654] RIEGLER Valve seat for filter regulator "SYNTESI", BG 2, 5 µm](/web/image/product.template/279311/image_128/%5B145654%5D%20RIEGLER%20Valve%20seat%20for%20filter%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=5941b18)
|
Type number: 9210231 |
10.70 € | |
