RIEGLER Filter+oil filter "SYNTESI", BG 2, G 1/2, 5 µm + 0.01 µm, RMSA
Type number: 5624F10D104
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter+oil filter "SYNTESI" made of technopolymer, for compressed air treatment - Type 5624F10D104
The RIEGLER filter+oil filter "SYNTESI", BG 2, G 1/2, 5 µm + 0.01 µm, RMSA combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of technopolymer with NBR seals. The maximum inlet pressure is 13 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Tank made of technopolymer. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| BG | 2 |
| Input connection | G 1/2 |
| Output connection | G 1/2 |
| A | 121 mm |
| B | 178 mm |
| Class name | PLUS |
| Filter fineness of the oil filter | 0.01 µm |
| Filter fineness of the filter | 5 µm |
| Air purity class at the outlet according to | 37438 |
| Thread on front and back | G 1/4 |
| Kondensatablass des Filters | |
| Condensate drain of the oil filter | |
| Series | Syntesi |
| F | 38.2 mm |
| Recommended flow rate at 6.3 bar | 1050 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

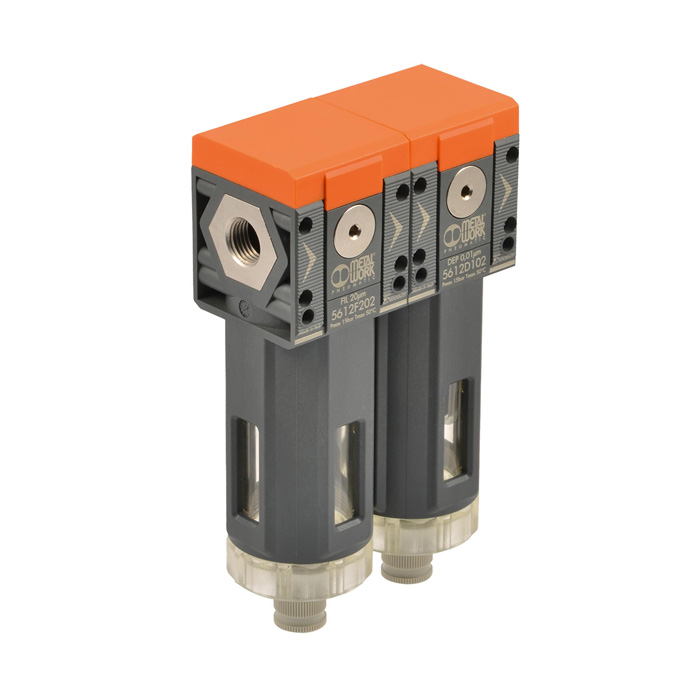

![[145368] RIEGLER Filter+oil filter "SYNTESI", BG 1, G 1/4, 5 µm + 0.01 µm, RMSA](/web/image/product.template/279179/image_128/%5B145368%5D%20RIEGLER%20Filter%2Boil%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%20%2B%200.01%20%C2%B5m%2C%20RMSA?unique=47653c6)
|
Type number: 5612F10D102 |
116.54 € | |
![[145367] RIEGLER Filter+oil filter "SYNTESI", BG 1, G 1/8, 5 µm + 0.01 µm, RMSA](/web/image/product.template/279178/image_128/%5B145367%5D%20RIEGLER%20Filter%2Boil%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%20%2B%200.01%20%C2%B5m%2C%20RMSA?unique=6ffd0c6)
|
Type number: 5611F10D101 |
116.54 € | |
![[145369] RIEGLER Filter+oil filter "SYNTESI", BG 1, G 3/8, 5 µm + 0.01 µm, RMSA](/web/image/product.template/279180/image_128/%5B145369%5D%20RIEGLER%20Filter%2Boil%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%20%2B%200.01%20%C2%B5m%2C%20RMSA?unique=d1705b7)
|
Type number: 5613F10D103 |
116.54 € | |
![[145373] RIEGLER Filter+oil filter "SYNTESI", BG 2, G 1, 5 µm + 0.01 µm, RMSA](/web/image/product.template/279184/image_128/%5B145373%5D%20RIEGLER%20Filter%2Boil%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%20%2B%200.01%20%C2%B5m%2C%20RMSA?unique=50be67c)
|
Type number: 5626F10D106 |
196.06 € | |
![[145372] RIEGLER Filter+oil filter "SYNTESI", BG 2, G 3/4, 5 µm + 0.01 µm, RMSA](/web/image/product.template/279183/image_128/%5B145372%5D%20RIEGLER%20Filter%2Boil%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%20%2B%200.01%20%C2%B5m%2C%20RMSA?unique=7ede344)
|
Type number: 5625F10D105 |
196.06 € | |
![[145370] RIEGLER Filter+oil filter "SYNTESI", BG 2, G 3/8, 5 µm + 0.01 µm, RMSA](/web/image/product.template/279181/image_128/%5B145370%5D%20RIEGLER%20Filter%2Boil%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%20%2B%200.01%20%C2%B5m%2C%20RMSA?unique=32388f7)
|
Type number: 5623F10D103 |
178.63 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=5e64734)
|
Type number: 9210010 |
6.79 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=2dea5c0)
|
Type number: 9210019 |
6.39 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=8469783)
|
Type number: 9210006 |
6.47 € | |
![[145506] RIEGLER Assembly wrench for "SYNTESI" container, BG 2](/web/image/product.template/279262/image_128/%5B145506%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20container%2C%20BG%202?unique=fd8fe4d)
|
Type number: 9210050 |
78.43 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=38281ff)
|
Type number: 9210031 |
0.76 € | |
![[145615] RIEGLER SYNTESI" container, BG 2, RA fully automatic](/web/image/product.template/279272/image_128/%5B145615%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RA%20fully%20automatic?unique=85975bc)
|
Type number: 9210106 |
38.75 € | |
![[145616] RIEGLER SYNTESI" container, BG 2, SAC fully automatic](/web/image/product.template/279273/image_128/%5B145616%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20SAC%20fully%20automatic?unique=84b2030)
|
Type number: 9210107 |
22.80 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=afedd9e)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=d1a02b2)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

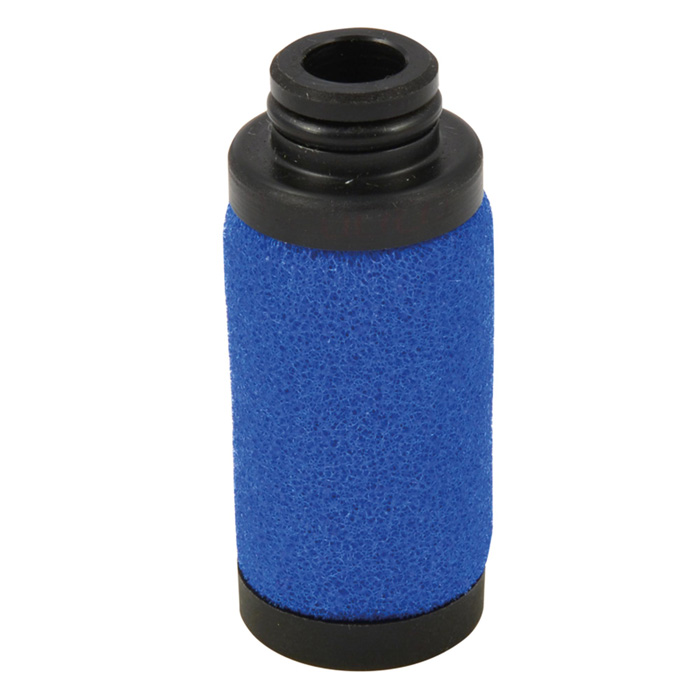

![[145626] RIEGLER Filter element "SYNTESI", BG 2, 0.01 µm](/web/image/product.template/279283/image_128/%5B145626%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%200.01%20%C2%B5m?unique=8aa1e22)
|
Type number: 9210165 |
90.98 € | |

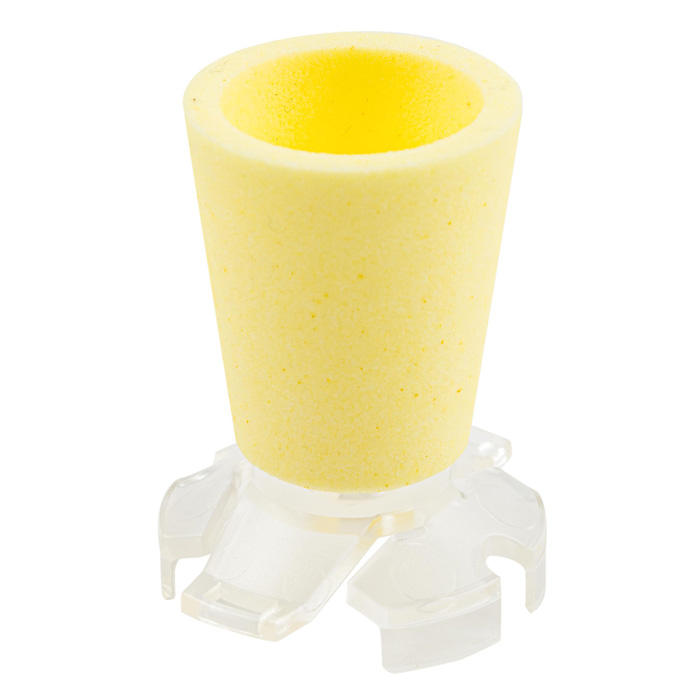

![[145622] RIEGLER Filter element "SYNTESI", BG 2, 5 µm](/web/image/product.template/279279/image_128/%5B145622%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=22ec939)
|
