RIEGLER Filter+oil filter "SYNTESI", BG 1, G 1/4, 5 µm + 0.01 µm, RA + RMSA
Type number: 5612F40D102
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter + depurator »SYNTESI«, size 1, G 1/4, 5 µm + 0.01 µm, p1 = max. 10 bar, RA fully autom. + RMSA semi-autom., T = -10 … 50 °C
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| BG | 1 |
| Input connection | G 1/4 |
| Output connection | G 1/4 |
| A | 84 mm |
| B | 152 mm |
| Class name | PLUS |
| Filter fineness of the oil filter | 0.01 µm |
| Filter fineness of the filter | 5 µm |
| Air purity class at the outlet according to | 37438 |
| Thread on front and back | G 1/8 |
| Kondensatablass des Filters | RA fully automatic |
| Condensate drain of the oil filter | |
| Series | Syntesi |
| F | 25.8 mm |
| Recommended flow rate at 6.3 bar | 550 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[145374] RIEGLER Filter+oil filter "SYNTESI", BG 1, G 1/8, 5 µm + 0.01 µm, RA + RMSA](/web/image/product.template/279185/image_128/%5B145374%5D%20RIEGLER%20Filter%2Boil%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%20%2B%200.01%20%C2%B5m%2C%20RA%20%2B%20RMSA?unique=f146137)
|
Type number: 5611F40D101 |
128.79 € | |
![[145376] RIEGLER Filter+oil filter "SYNTESI", BG 1, G 3/8, 5 µm + 0.01 µm, RA + RMSA](/web/image/product.template/279187/image_128/%5B145376%5D%20RIEGLER%20Filter%2Boil%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%20%2B%200.01%20%C2%B5m%2C%20RA%20%2B%20RMSA?unique=c21cc77)
|
Type number: 5613F40D103 |
128.79 € | |

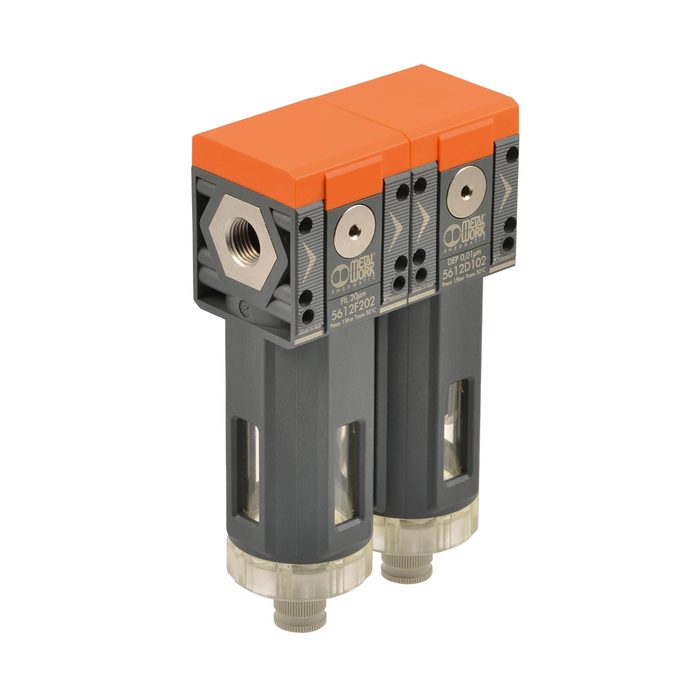

![[145378] RIEGLER Filter+oil filter "SYNTESI", BG 2, G 1/2, 5 µm + 0.01 µm, RA + RMSA](/web/image/product.template/279189/image_128/%5B145378%5D%20RIEGLER%20Filter%2Boil%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%205%20%C2%B5m%20%2B%200.01%20%C2%B5m%2C%20RA%20%2B%20RMSA?unique=45d669b)
|
