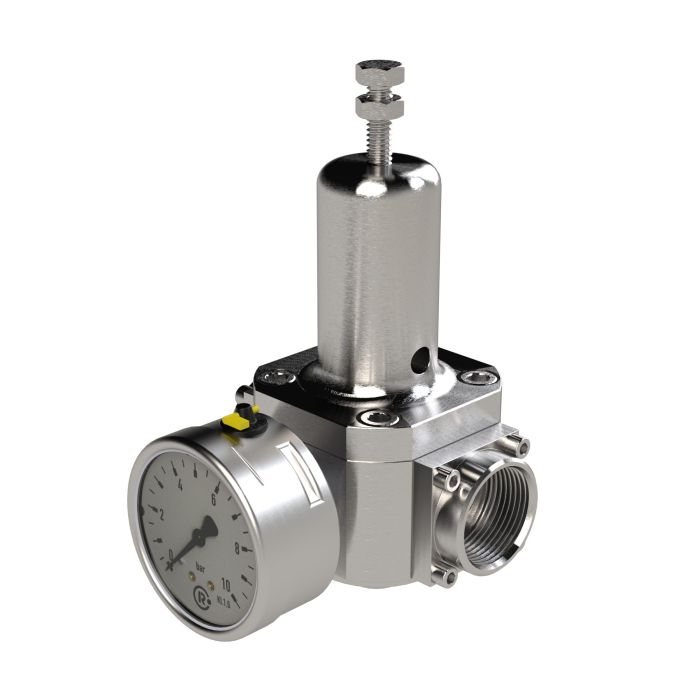

RIEGLER Pressure regulator for drinking water, DVGW-tested, R 3/4, 1,5 - 6 bar
Type number: 100.102-2
EAN: 4047322768764
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator for drinking water, DVGW-tested, incl. pressure gauge, R 3/4, control range 1.5 - 6 bar, PE max. 16 bar, inlet pressure min. 2.5 bar
| A | 141 mm |
| B | 136 mm |
| Operating temperature max. | 75 °C |
| Operating temperature min. | -15 °C |
| C | 109 mm |
| D | 27 mm |
| Sealing material | EPDM with ELL and W270 |
| DN | 20 |
| Flow rate kvs-value | 3.9 m³/h |
| Inlet pressure max. | 16 bar |
| Spring cover | PA 6 |
| Housing | Gunmetal (Rg5) |
| Thread | R 3/4 |
| Interior parts | Hostaform C and brass |
| Class name | FLEX |
| Membrane | EPDM with ELL and W270 |
| Minimum pressure drop | 1 bar |
| Control range max. | 6 bar |
| Control range min. | 1.5 bar |
| Form min. | 2.5 bar |
