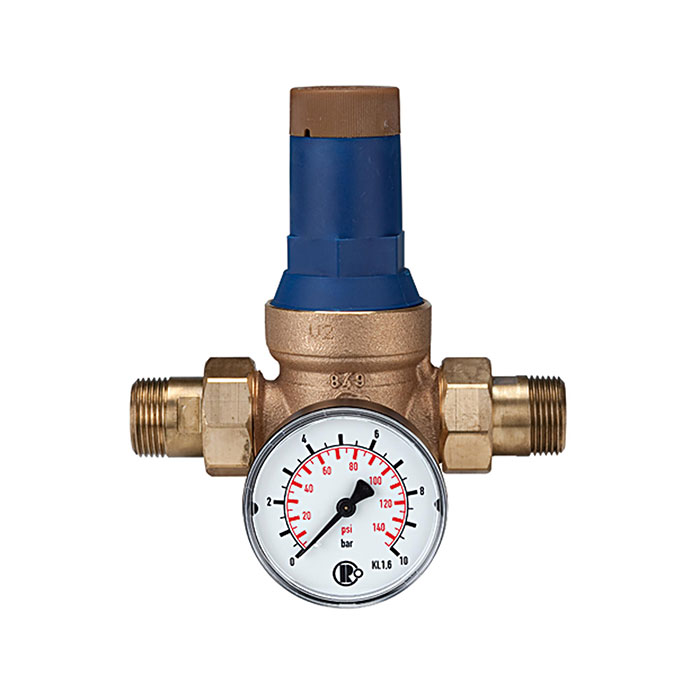

RIEGLER Pressure regulator for drinking water, DVGW-tested, R 3/4, 1,5 - 6 bar

Type number: 100.102-2

111.54 € 111.54 EUR 111.54 € VAT Included

130.18 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145385

EAN :

4047322768764

Category :

Pressure Regulators

Weight :

1.01 kg

Description
Specifications

Pressure regulator for drinking water, DVGW-tested, incl. pressure gauge, R 3/4, control range 1.5 - 6 bar, PE max. 16 bar, inlet pressure min. 2.5 bar

A	141 mm
B	136 mm
Operating temperature max.	75 °C
Operating temperature min.	-15 °C
C	109 mm
D	27 mm
Sealing material	EPDM with ELL and W270
DN	20
Flow rate kvs-value	3.9 m³/h
Inlet pressure max.	16 bar
Spring cover	PA 6
Housing	Gunmetal (Rg5)
Thread	R 3/4
Interior parts	Hostaform C and brass
Class name	FLEX
Membrane	EPDM with ELL and W270
Minimum pressure drop	1 bar
Control range max.	6 bar
Control range min.	1.5 bar
Form min.	2.5 bar

Variants / Alternatives

	Price
[145386] RIEGLER Pressure regulator for drinking water, DVGW-tested, R 1, 1,5 - 6 bar Type number: 100.103-2	151.37 €	Add to cart
[101352] RIEGLER Pressure regulator for potable water, DVGW tested, R 1 1/4 Type number: 100.104	187.27 €	Add to cart
[101349] RIEGLER Pressure regulator for potable water, DVGW tested, R 1/2 Type number: 100.101	83.03 €	Add to cart

Maintenance, wear and spare parts

Product		Price

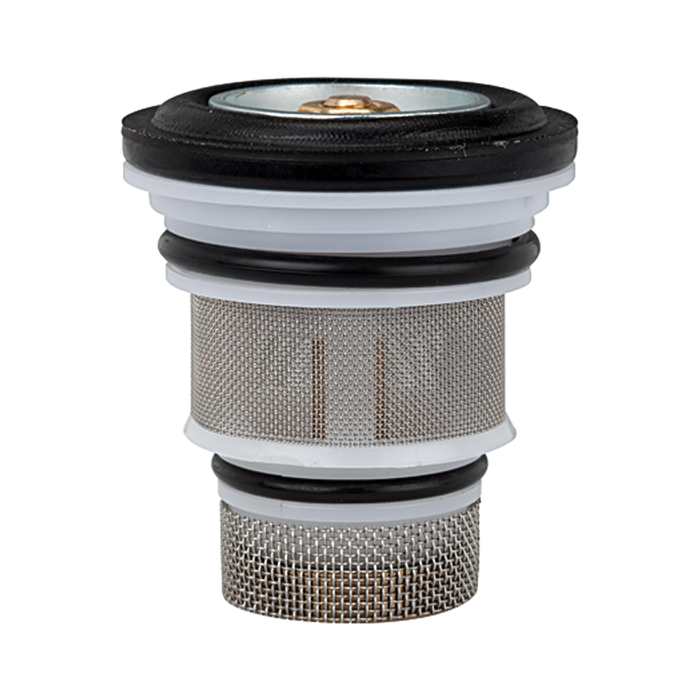

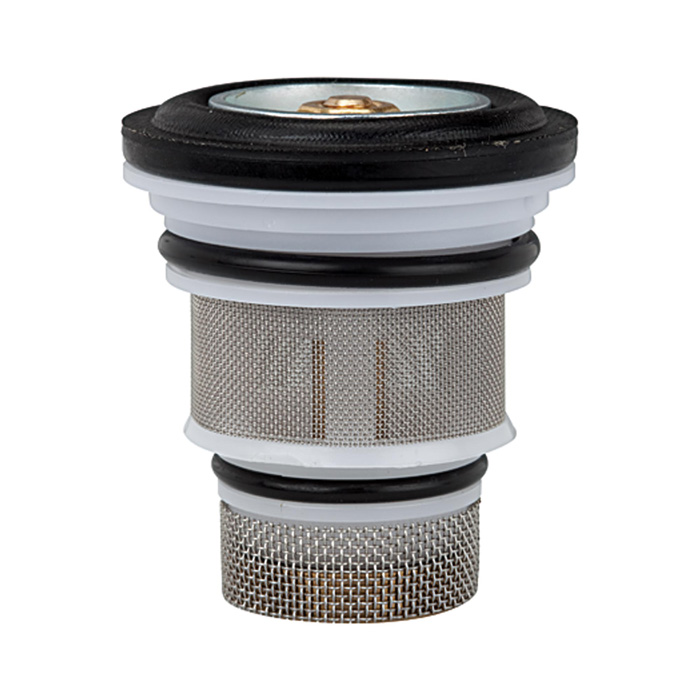

	[145734] RIEGLER Cartridge, for pressure regulator, DVGW-tested, R 3/4 Type number: 100.306	56.49 €	Add to cart
