RIEGLER Pressure regulator for drinking water, DVGW-tested, R 1, 1,5 - 6 bar
Type number: 100.103-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for drinking water made of gunmetal (Rg5), 1.5 bar - Type 100.103-2
The RIEGLER pressure regulator for drinking water, DVGW-tested, R 1, 1.5 - 6 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal (Rg5) with EPDM seals with ELL and W270. The control range extends from 1.5 bar to 6 bar with a maximum inlet pressure of 16 bar. The operating temperature is between -15 °C and 75 °C. Connection thread R 1 - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| A | 154 mm |
| B | 136 mm |
| Operating temperature max. | 75 °C |
| Operating temperature min. | -15 °C |
| C | 107 mm |
| D | 29 mm |
| Sealing material | EPDM with ELL and W270 |
| DN | 25 |
| Flow rate kvs-value | 5.4 m³/h |
| Inlet pressure max. | 16 bar |
| Spring cover | PA 6 |
| Housing | Gunmetal (Rg5) |
| Thread | R 1 |
| Interior parts | Hostaform C and brass |
| Class name | FLEX |
| Membrane | EPDM with ELL and W270 |
| Minimum pressure drop | 1 bar |
| Control range max. | 6 bar |
| Control range min. | 1.5 bar |
| Form min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

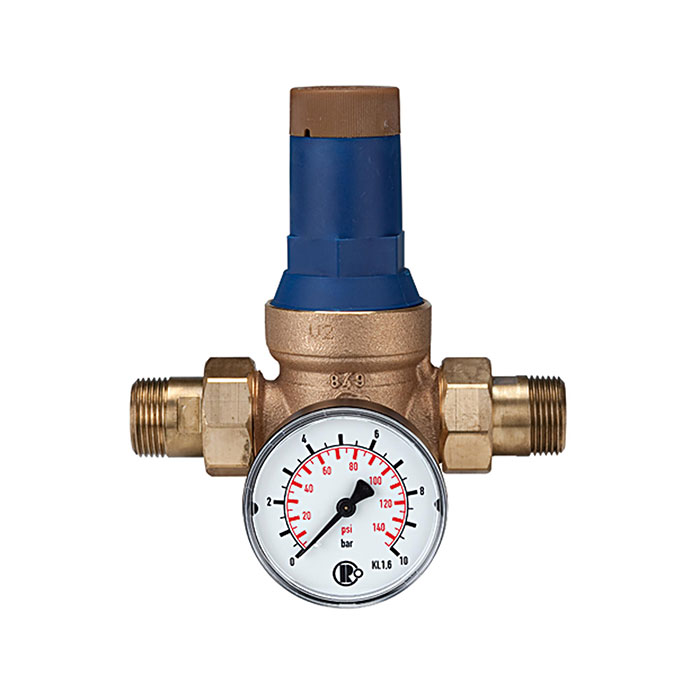

![[145385] RIEGLER Pressure regulator for drinking water, DVGW-tested, R 3/4, 1,5 - 6 bar](/web/image/product.template/267734/image_128/%5B145385%5D%20RIEGLER%20Pressure%20regulator%20for%20drinking%20water%2C%20DVGW-tested%2C%20R%203-4%2C%201%2C5%20-%206%20bar?unique=77303f6)
|
Type number: 100.102-2 |
111.54 € | |
![[101352] RIEGLER Pressure regulator for potable water, DVGW tested, R 1 1/4](/web/image/product.template/169326/image_128/%5B101352%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20DVGW%20tested%2C%20R%201%201-4?unique=72deb9c)
|
Type number: 100.104 |
187.27 € | |
![[101349] RIEGLER Pressure regulator for potable water, DVGW tested, R 1/2](/web/image/product.template/169323/image_128/%5B101349%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20DVGW%20tested%2C%20R%201-2?unique=2994ac0)
|
Type number: 100.101 |
83.03 € | |
