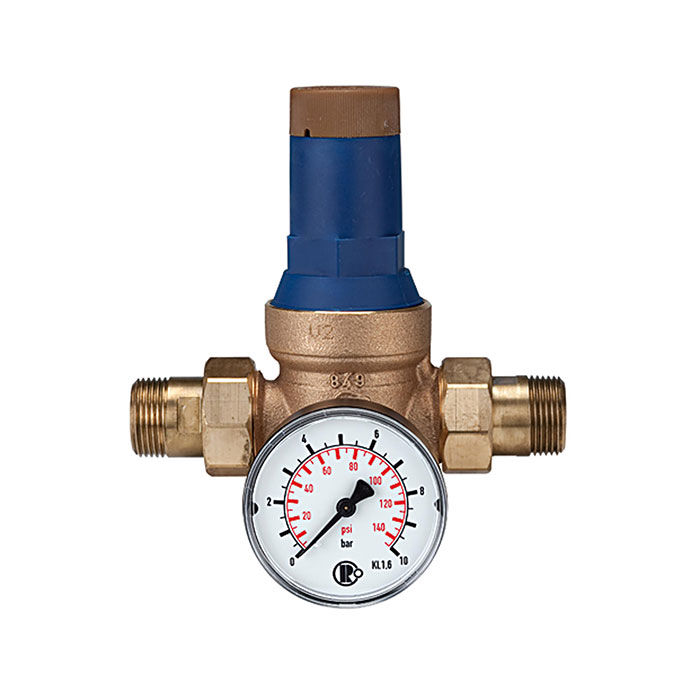

RIEGLER Pressure regulator for potable water, DVGW tested, R 1/2
Type number: 100.101
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for drinking water made of gunmetal (Rg5), 1.5 bar - Type 100.101
The RIEGLER pressure regulator for drinking water, DVGW-tested, R 1/2, 1.5 - 6 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal (Rg5) with EPDM seals with ELL and W270. The control range extends from 1.5 bar to 6 bar with a maximum inlet pressure of 16 bar. The operating temperature is between -15 °C and 75 °C. R 1/2 connection thread - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Housing | Gunmetal (Rg5) |
| Sealing material | EPDM with ELL and W270 |
| Membrane | EPDM with ELL and W270 |
| Spring cover | PA 6 |
| Interior parts | Hostaform C and brass |
| Minimum pressure drop | 1 bar |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 75 °C |
| Thread | R 1/2 |
| Control range min. | 1.5 bar |
| Control range max. | 6 bar |
| Flow rate kvs-value | 2.9 m³/h |
| DN | 15 |
| A | 137 mm |
| B | 134.7 mm |
| C | 107.7 mm |
| D | 27 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Form min. | 2.5 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[145386] RIEGLER Pressure regulator for drinking water, DVGW-tested, R 1, 1,5 - 6 bar](/web/image/product.template/267799/image_128/%5B145386%5D%20RIEGLER%20Pressure%20regulator%20for%20drinking%20water%2C%20DVGW-tested%2C%20R%201%2C%201%2C5%20-%206%20bar?unique=9b9eae8)
|
Type number: 100.103-2 |
151.37 € | |
![[145385] RIEGLER Pressure regulator for drinking water, DVGW-tested, R 3/4, 1,5 - 6 bar](/web/image/product.template/267734/image_128/%5B145385%5D%20RIEGLER%20Pressure%20regulator%20for%20drinking%20water%2C%20DVGW-tested%2C%20R%203-4%2C%201%2C5%20-%206%20bar?unique=77303f6)
|
Type number: 100.102-2 |
111.54 € | |
![[101352] RIEGLER Pressure regulator for potable water, DVGW tested, R 1 1/4](/web/image/product.template/169326/image_128/%5B101352%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20DVGW%20tested%2C%20R%201%201-4?unique=72deb9c)
|
Type number: 100.104 |
187.27 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=97ac489)
|
Type number: 217-KD |
6.25 € | |

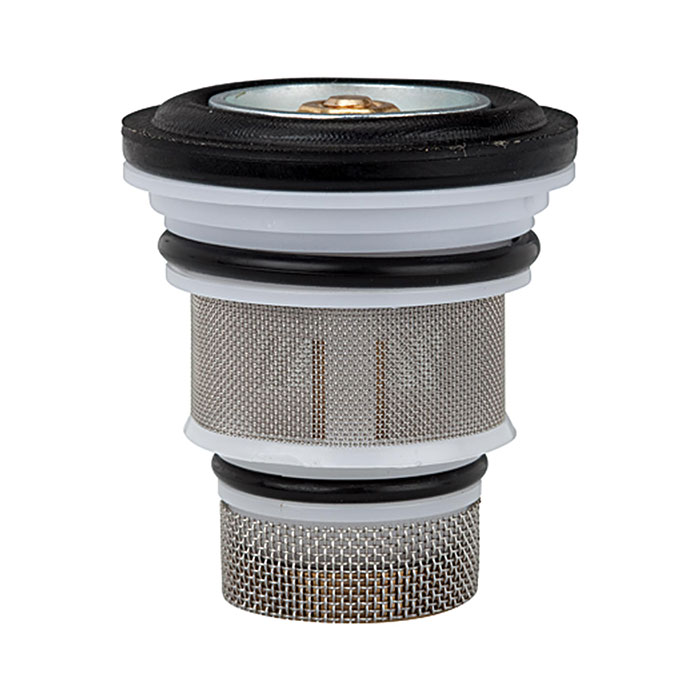

![[101355] RIEGLER Cartridges, for potable water, DVGW tested, R 1/2](/web/image/product.template/169329/image_128/%5B101355%5D%20RIEGLER%20Cartridges%2C%20for%20potable%20water%2C%20DVGW%20tested%2C%20R%201-2?unique=3bc9770)
|
