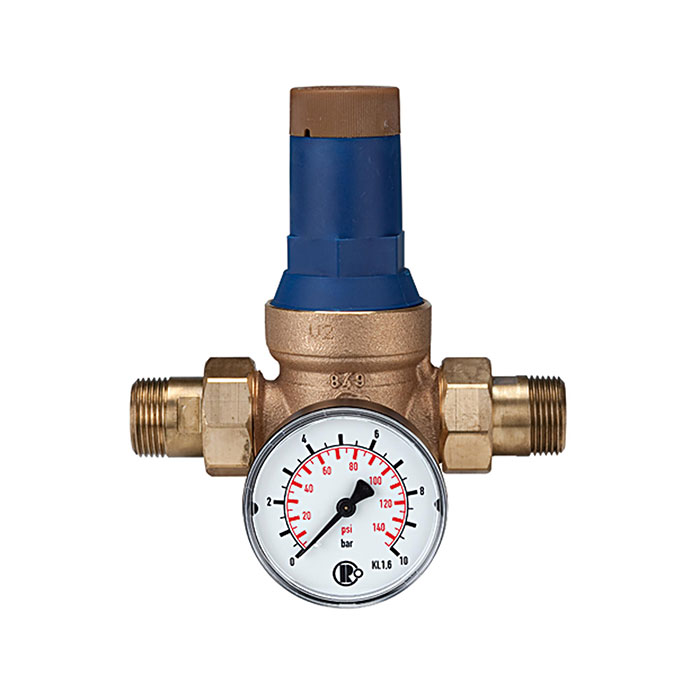

RIEGLER Pressure regulator for drinking water, DVGW-tested, R 3/4, 1,5 - 6 bar
Type number: 100.102-2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator for drinking water, DVGW-tested, incl. pressure gauge, R 3/4, control range 1.5 - 6 bar, PE max. 16 bar, inlet pressure min. 2.5 bar
| A | 141 mm |
| B | 136 mm |
| Operating temperature max. | 75 °C |
| Operating temperature min. | -15 °C |
| C | 109 mm |
| D | 27 mm |
| Sealing material | EPDM with ELL and W270 |
| DN | 20 |
| Flow rate kvs-value | 3.9 m³/h |
| Inlet pressure max. | 16 bar |
| Spring cover | PA 6 |
| Housing | Gunmetal (Rg5) |
| Thread | R 3/4 |
| Interior parts | Hostaform C and brass |
| Class name | FLEX |
| Membrane | EPDM with ELL and W270 |
| Minimum pressure drop | 1 bar |
| Control range max. | 6 bar |
| Control range min. | 1.5 bar |
| Form min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[145386] RIEGLER Pressure regulator for drinking water, DVGW-tested, R 1, 1,5 - 6 bar](/web/image/product.template/267799/image_128/%5B145386%5D%20RIEGLER%20Pressure%20regulator%20for%20drinking%20water%2C%20DVGW-tested%2C%20R%201%2C%201%2C5%20-%206%20bar?unique=a55b668)
|
Type number: 100.103-2 |
153.46 € | |
![[101352] RIEGLER Pressure regulator for potable water, DVGW tested, R 1 1/4](/web/image/product.template/169326/image_128/%5B101352%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20DVGW%20tested%2C%20R%201%201-4?unique=de63a33)
|
Type number: 100.104 |
189.88 € | |
![[101349] RIEGLER Pressure regulator for potable water, DVGW tested, R 1/2](/web/image/product.template/169323/image_128/%5B101349%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20DVGW%20tested%2C%20R%201-2?unique=8a61b2c)
|
Type number: 100.101 |
83.04 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

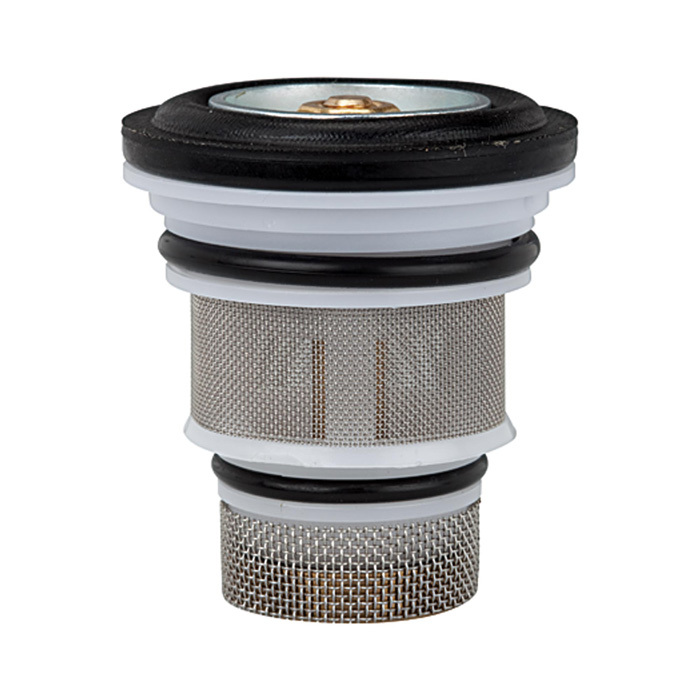

![[145734] RIEGLER Cartridge, for pressure regulator, DVGW-tested, R 3/4](/web/image/product.template/279354/image_128/%5B145734%5D%20RIEGLER%20Cartridge%2C%20for%20pressure%20regulator%2C%20DVGW-tested%2C%20R%203-4?unique=f6cf39d)
|
Type number: 100.306 |
56.49 € | |
