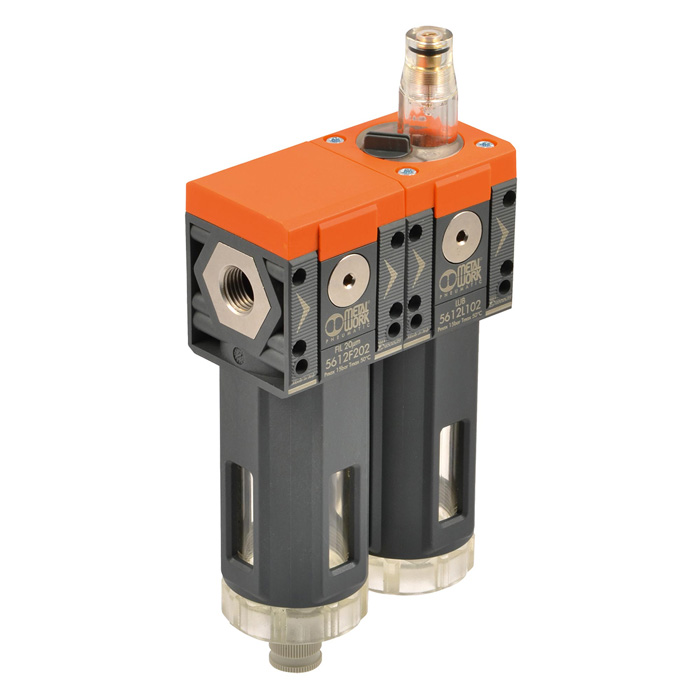

RIEGLER Filter + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, RMSA semi-automatic
Type number: 5612F20L102
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filter + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, p1 = max. 15 bar, RMSA semi-automatic, T = -10 ? 50 °C
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 20 µm |
| BG | 1 |
| Input connection | G 1/4 |
| Output connection | G 1/4 |
| A | 84 mm |
| B | 117.5 mm |
| Flow 1 | 860 Nl/min |
| Flow 2 | 1450 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 122.2 mm |
| Air purity class at the outlet according to | 4.7.- |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Condensate drain |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145617] RIEGLER Container for oiler "SYNTESI", BG 1](/web/image/product.template/279274/image_128/%5B145617%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%201?unique=75e58e1)
|
Type number: 9210110 |
5.18 € | |

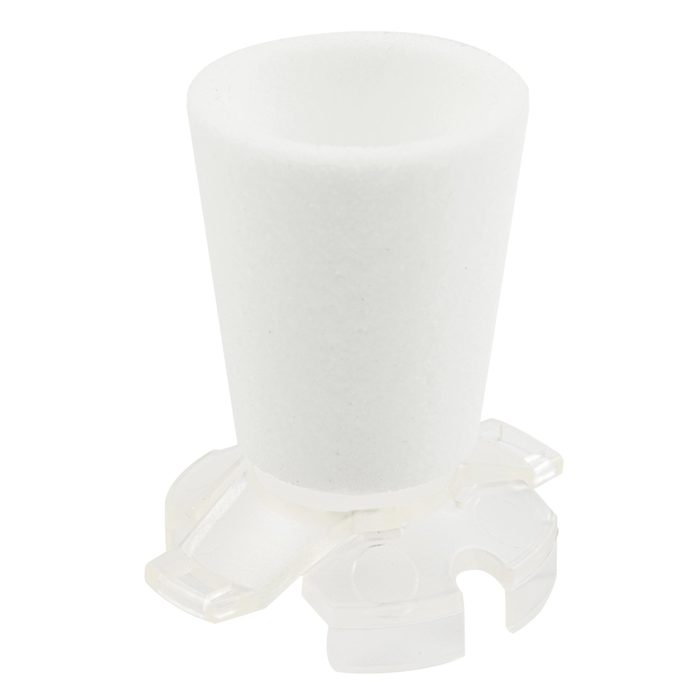

![[145620] RIEGLER Filter element "SYNTESI", BG 1, 20 µm](/web/image/product.template/279277/image_128/%5B145620%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%2020%20%C2%B5m?unique=4db84f8)
|
Type number: 9210151 |
4.90 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=63adaba)
|
Type number: 233.02-N |
0.42 € | |

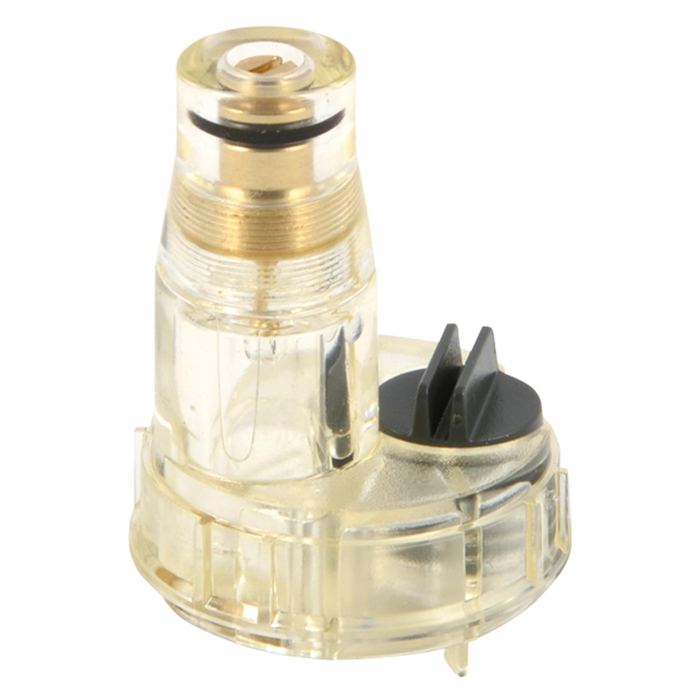

![[145629] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 1, with oil filler plug](/web/image/product.template/279286/image_128/%5B145629%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%201%2C%20with%20oil%20filler%20plug?unique=c289dbb)
|
Type number: 9210180 |
5.43 € | |

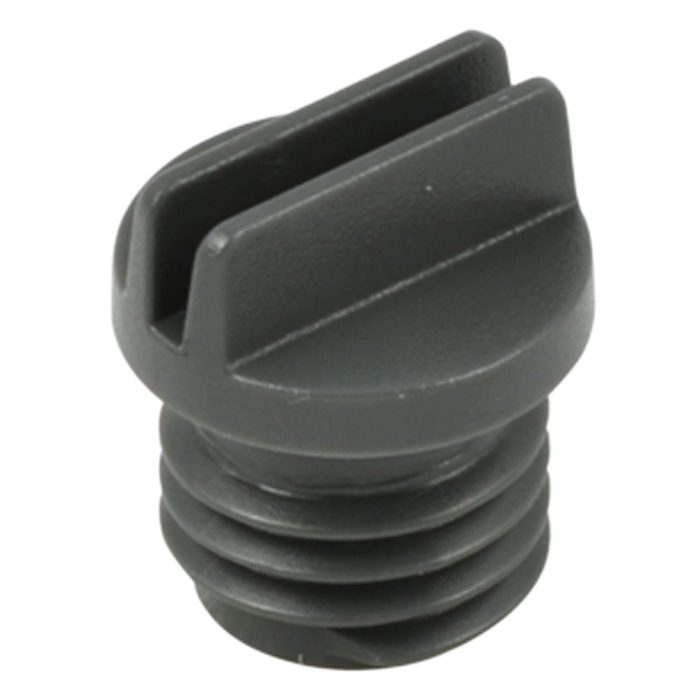

![[145631] RIEGLER Oil filler plug "SYNTESI", BG 1](/web/image/product.template/279288/image_128/%5B145631%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%201?unique=6845231)
|
Type number: 9210181 |
1.96 € | |
![[145611] RIEGLER SYNTESI" container, BG 1, RMSA semi-automatic](/web/image/product.template/279268/image_128/%5B145611%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RMSA%20semi-automatic?unique=bb42425)
|
Type number: 9210100 |
6.94 € | |
![[144689] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/4, incl. 2 screws](/web/image/product.template/277871/image_128/%5B144689%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%20incl.%202%20screws?unique=89a8cdf)
|
Type number: 9210002 |
1.86 € | |
