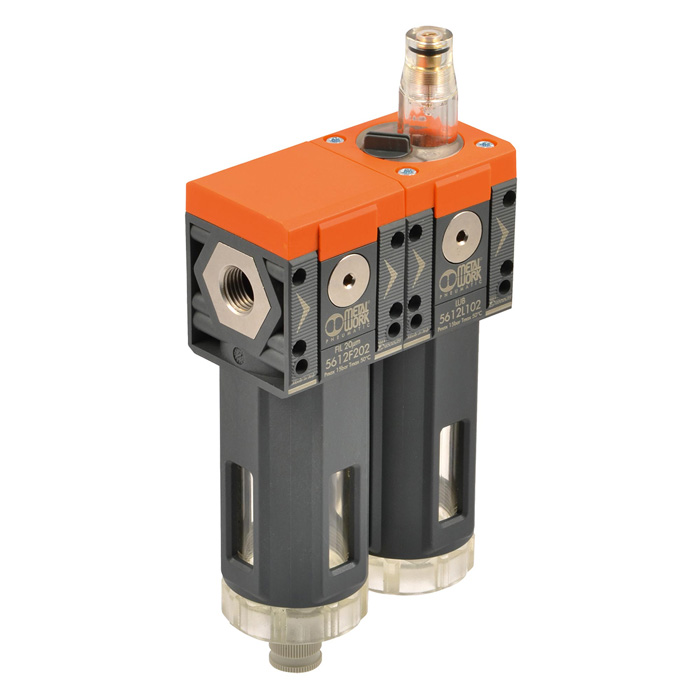

RIEGLER Filter + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, RMSA semi-automatic
Type number: 5624F20L104
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter + oiler "SYNTESI", BG 2, G 1/2, 20 µm, p1 = max. 13 bar, RMSA semi-automatic, T = -10 ? 50 °C
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 20 µm |
| BG | 2 |
| Input connection | G 1/2 |
| Output connection | G 1/2 |
| A | 121 mm |
| B | 208 mm |
| Flow_1 | 2900 Nl/min |
| Flow_2 | 4400 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 139.8 mm |
| Air purity class at the outlet according to | 4.7.- |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Condensate drain |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[145401] RIEGLER Filter + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, RMSA semi-automatic](/web/image/product.template/279197/image_128/%5B145401%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=62c1c78)
|
Type number: 5612F20L102 |
61.12 € | |
![[145400] RIEGLER Filter + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, RMSA semi-automatic](/web/image/product.template/279196/image_128/%5B145400%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=b897711)
|
Type number: 5612F10L102 |
61.12 € | |
![[145399] RIEGLER Filter + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, RMSA semi-automatic](/web/image/product.template/279195/image_128/%5B145399%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=859aec9)
|
Type number: 5611F20L101 |
61.12 € | |
![[145398] RIEGLER Filter + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, RMSA semi-automatic](/web/image/product.template/279194/image_128/%5B145398%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=1cb3921)
|
Type number: 5611F10L101 |
61.12 € | |
![[145411] RIEGLER Filter + lubricator "SYNTESI", BG 2, G 1, 20 µm, RMSA semi-automatic](/web/image/product.template/279207/image_128/%5B145411%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%2020%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=2524529)
|
Type number: 5626F20L106 |
122.36 € | |
![[145406] RIEGLER Filter + lubricator "SYNTESI", BG 2, G 1/2, 5 µm, RMSA semi-automatic](/web/image/product.template/279202/image_128/%5B145406%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%205%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=df440d6)
|
Type number: 5624F10L104 |
104.71 € | |
![[145410] RIEGLER Filter + lubricator "SYNTESI", BG 2, G 1, 5 µm, RMSA semi-automatic](/web/image/product.template/279206/image_128/%5B145410%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%205%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=864a57b)
|
Type number: 5626F10L106 |
122.36 € | |
![[145403] RIEGLER Filter + oiler "SYNTESI", BG 1, G 3/8, 20 µm, RMSA semi-automatic](/web/image/product.template/279199/image_128/%5B145403%5D%20RIEGLER%20Filter%20%2B%20oiler%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%2020%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=51e0eab)
|
Type number: 5613F20L103 |
61.12 € | |
![[145402] RIEGLER Filter + oiler "SYNTESI", BG 1, G 3/8, 5 µm, RMSA semi-automatic](/web/image/product.template/279198/image_128/%5B145402%5D%20RIEGLER%20Filter%20%2B%20oiler%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=65543e9)
|
Type number: 5613F10L103 |
61.12 € | |
![[145409] RIEGLER Filter + oiler "SYNTESI", BG 2, G 3/4, 20 µm, RMSA semi-automatic](/web/image/product.template/279205/image_128/%5B145409%5D%20RIEGLER%20Filter%20%2B%20oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%2020%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=f067e30)
|
Type number: 5625F20L105 |
122.36 € | |
![[145408] RIEGLER Filter + oiler "SYNTESI", BG 2, G 3/4, 5 µm, RMSA semi-automatic](/web/image/product.template/279204/image_128/%5B145408%5D%20RIEGLER%20Filter%20%2B%20oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%205%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=4c7ad86)
|
Type number: 5625F10L105 |
122.36 € | |
![[145405] RIEGLER Filter + oiler "SYNTESI", BG 2, G 3/8, 20 µm, RMSA semi-automatic](/web/image/product.template/279201/image_128/%5B145405%5D%20RIEGLER%20Filter%20%2B%20oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%2020%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=b921951)
|
Type number: 5623F20L103 |
104.71 € | |
![[145404] RIEGLER Filter + oiler "SYNTESI", BG 2, G 3/8, 5 µm, RMSA semi-automatic](/web/image/product.template/279200/image_128/%5B145404%5D%20RIEGLER%20Filter%20%2B%20oiler%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%205%20%C2%B5m%2C%20RMSA%20semi-automatic?unique=279699a)
|
Type number: 5623F10L103 |
104.71 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=04b7896)
|
Type number: 32 |
34.57 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=fff71be)
|
Type number: 9210010 |
6.88 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=3c68e33)
|
Type number: 9210019 |
6.40 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=760151b)
|
Type number: 9210006 |
6.56 € | |
![[145506] RIEGLER Assembly wrench for "SYNTESI" container, BG 2](/web/image/product.template/279262/image_128/%5B145506%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20container%2C%20BG%202?unique=c8a30fb)
|
Type number: 9210050 |
78.43 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=7fadc5c)
|
Type number: 9210031 |
0.76 € | |
![[145615] RIEGLER SYNTESI" container, BG 2, RA fully automatic](/web/image/product.template/279272/image_128/%5B145615%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RA%20fully%20automatic?unique=386a66e)
|
Type number: 9210106 |
38.76 € | |
![[145616] RIEGLER SYNTESI" container, BG 2, SAC fully automatic](/web/image/product.template/279273/image_128/%5B145616%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20SAC%20fully%20automatic?unique=baf7054)
|
Type number: 9210107 |
23.12 € | |
![[145622] RIEGLER Filter element "SYNTESI", BG 2, 5 µm](/web/image/product.template/279279/image_128/%5B145622%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=a6806d3)
|
Type number: 9210155 |
6.50 € | |
![[145624] RIEGLER Filter element "SYNTESI", BG 2, 50 µm](/web/image/product.template/279281/image_128/%5B145624%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2050%20%C2%B5m?unique=cc81342)
|
Type number: 9210157 |
6.50 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=8da6162)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=e3c435e)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

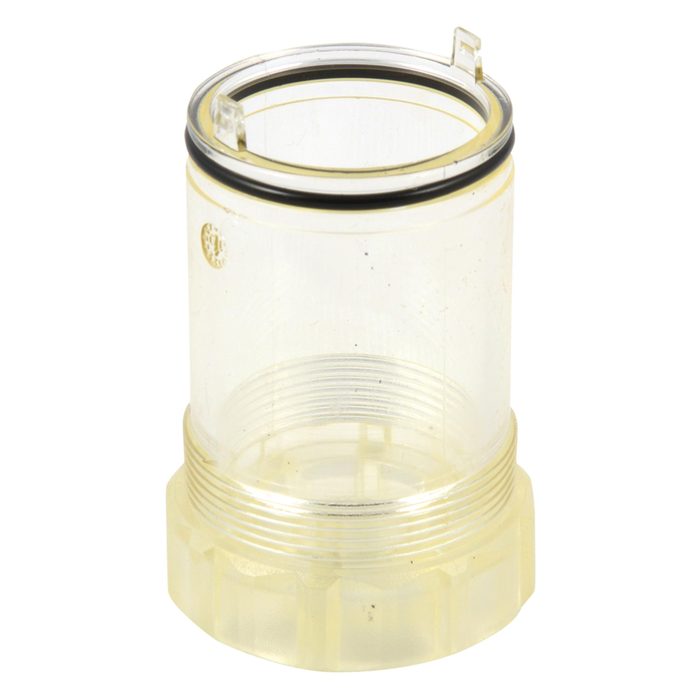

![[145618] RIEGLER Container for oiler "SYNTESI", BG 2](/web/image/product.template/279275/image_128/%5B145618%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%202?unique=45eff80)
|
Type number: 9210115 |
11.75 € | |

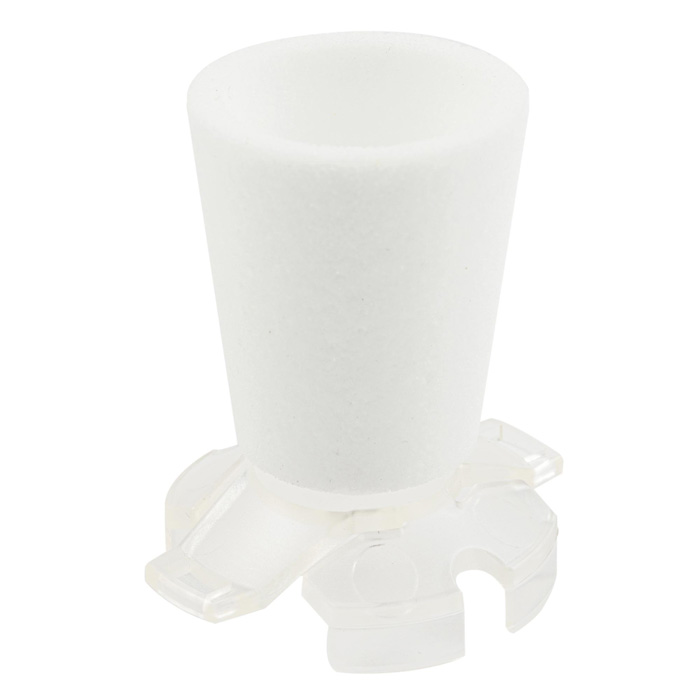

![[145623] RIEGLER Filter element "SYNTESI", BG 2, 20 µm](/web/image/product.template/279280/image_128/%5B145623%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%2020%20%C2%B5m?unique=b9581b8)
|
Type number: 9210156 |
6.50 € | |
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=b7f98b5)
|
Type number: 233.03-N |
0.62 € | |

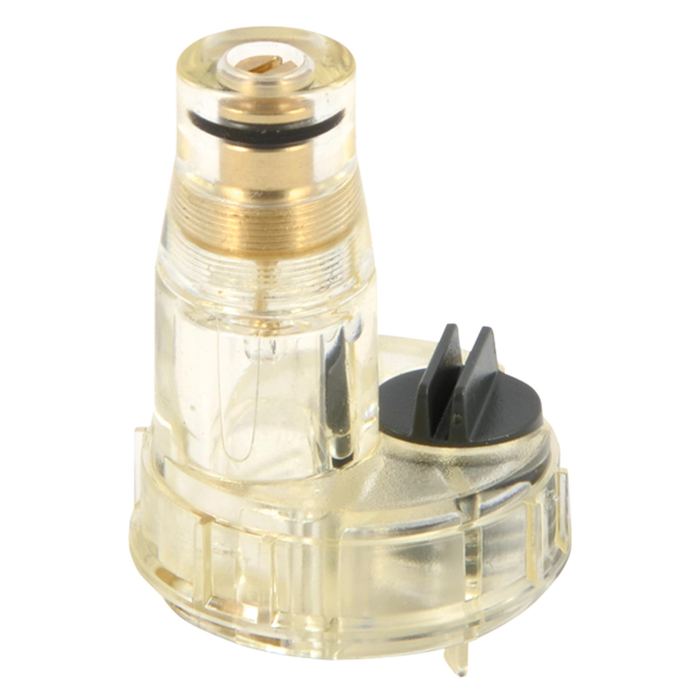

![[145630] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 2, with oil filler plug](/web/image/product.template/279287/image_128/%5B145630%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%202%2C%20with%20oil%20filler%20plug?unique=c205d50)
|
Type number: 9210185 |
10.23 € | |

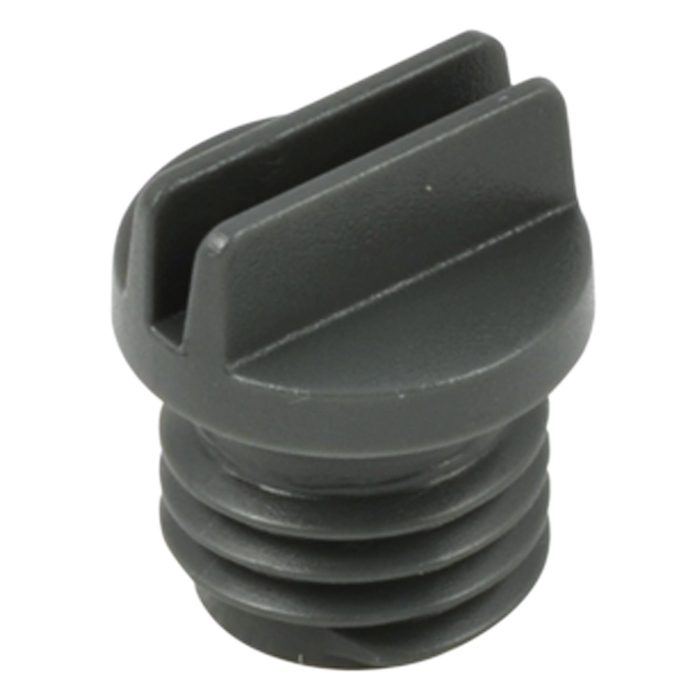

![[145632] RIEGLER Oil filler plug "SYNTESI", BG 2](/web/image/product.template/279289/image_128/%5B145632%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%202?unique=11287a1)
|
