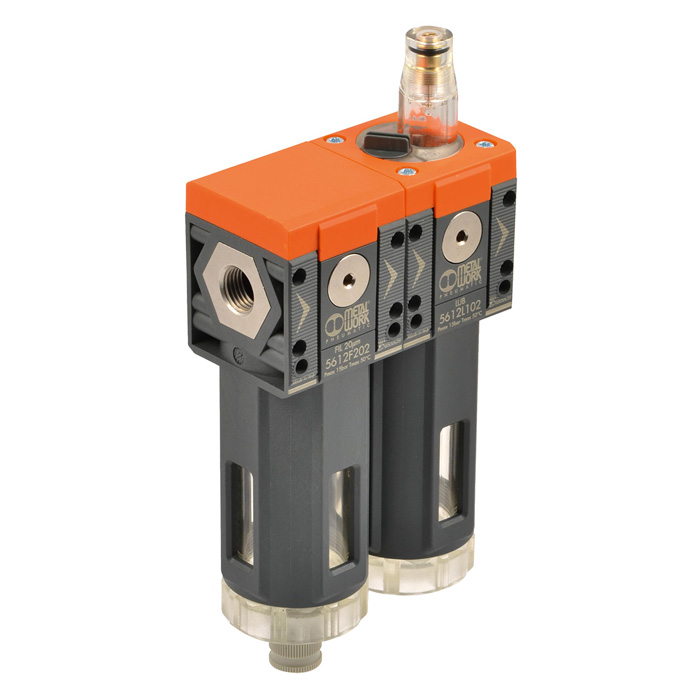

RIEGLER Filter + lubricator "SYNTESI", BG 2, G 1, 5 µm, RA fully automatic
Type number: 5626F40L106
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filter + lubricator "SYNTESI", BG 2, G 1, 5 µm, p1 = max. 10 bar, RA fully automatic, T = -10 ? 50 °C
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| BG | 2 |
| Input connection | G 1 |
| Output connection | G 1 |
| A | 121 mm |
| B | 212 mm |
| Flow 1 | 2900 Nl/min |
| Flow 2 | 4400 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 143.8 mm |
| Air purity class at the outlet according to | 3.7.- |
| A1 | 156.0 mm |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Condensate drain | RA fully automatic |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145609] RIEGLER Automatic drain valve "SYNTESI", RA](/web/image/product.template/279266/image_128/%5B145609%5D%20RIEGLER%20Automatic%20drain%20valve%20%22SYNTESI%22%2C%20RA?unique=93c155d)
|
Type number: 9000802 |
37.41 € | |

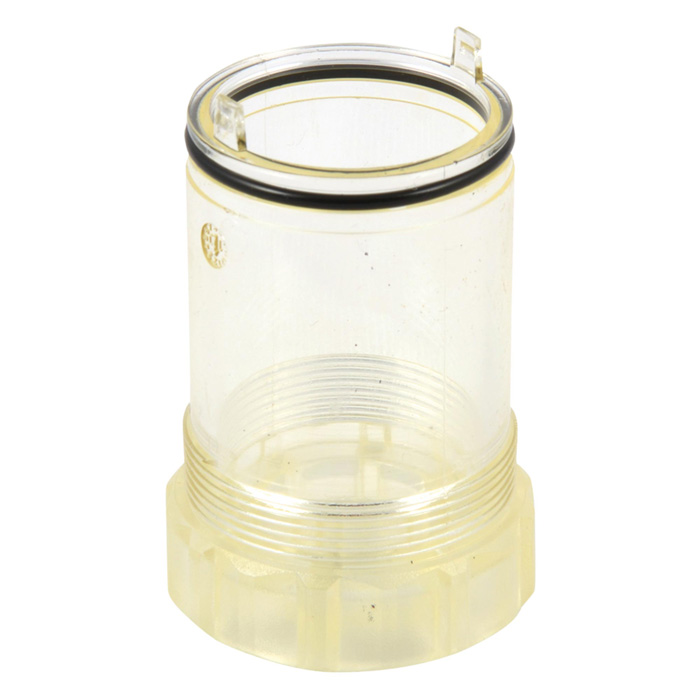

![[145618] RIEGLER Container for oiler "SYNTESI", BG 2](/web/image/product.template/279275/image_128/%5B145618%5D%20RIEGLER%20Container%20for%20oiler%20%22SYNTESI%22%2C%20BG%202?unique=7bad77f)
|
Type number: 9210115 |
11.75 € | |
![[145622] RIEGLER Filter element "SYNTESI", BG 2, 5 µm](/web/image/product.template/279279/image_128/%5B145622%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%202%2C%205%20%C2%B5m?unique=5f59b7b)
|
Type number: 9210155 |
6.41 € | |
![[111410] RIEGLER Locking screw, Hexagonal socket 6 mm, G 1/4, nickel-plated brass](/web/image/product.template/183331/image_128/%5B111410%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%206%20mm%2C%20G%201-4%2C%20nickel-plated%20brass?unique=1b72245)
|
Type number: 233.03-N |
0.62 € | |

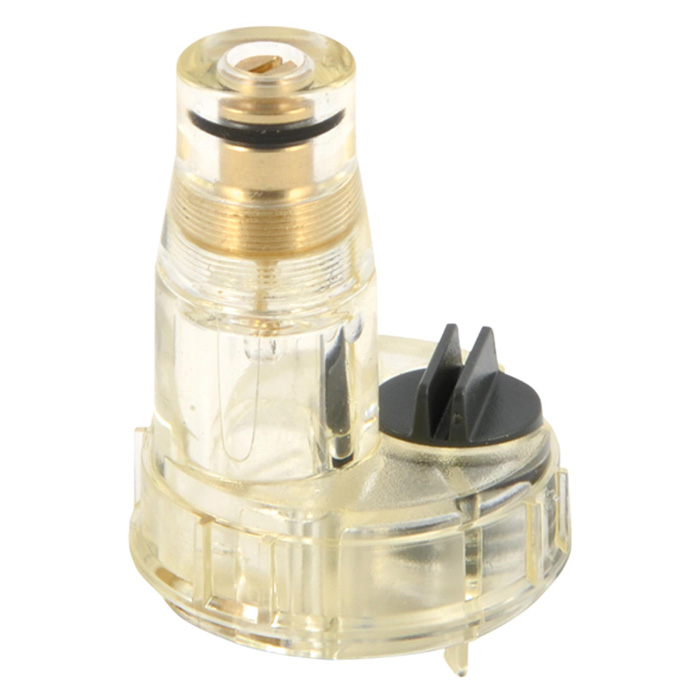

![[145630] RIEGLER Oiler dome (drip cap) "SYNTESI", BG 2, with oil filler plug](/web/image/product.template/279287/image_128/%5B145630%5D%20RIEGLER%20Oiler%20dome%20%28drip%20cap%29%20%22SYNTESI%22%2C%20BG%202%2C%20with%20oil%20filler%20plug?unique=94f4c87)
|
Type number: 9210185 |
10.23 € | |

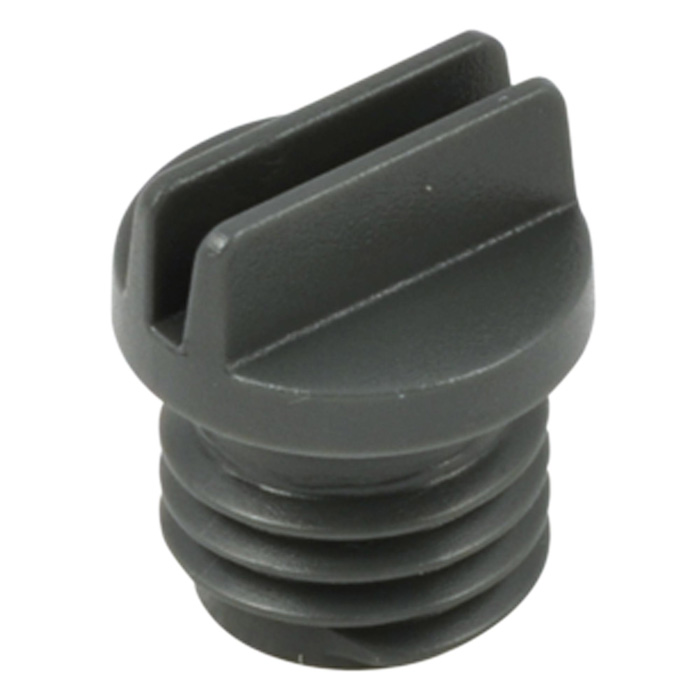

![[145632] RIEGLER Oil filler plug "SYNTESI", BG 2](/web/image/product.template/279289/image_128/%5B145632%5D%20RIEGLER%20Oil%20filler%20plug%20%22SYNTESI%22%2C%20BG%202?unique=70942ed)
|
Type number: 9210186 |
2.18 € | |
![[145615] RIEGLER SYNTESI" container, BG 2, RA fully automatic](/web/image/product.template/279272/image_128/%5B145615%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%202%2C%20RA%20fully%20automatic?unique=8d08bd8)
|
Type number: 9210106 |
38.75 € | |
![[144694] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1, incl. 2 screws](/web/image/product.template/277876/image_128/%5B144694%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%20incl.%202%20screws?unique=b67ca5d)
|
Type number: 9210014 |
10.13 € | |
