RIEGLER Filter + lubricator "SYNTESI", BG 2, G 1, 20 µm, RA fully automatic
Type number: 5626F50L106
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter + lubricator "SYNTESI", BG 2, G 1, 20 µm, p1 = max. 10 bar, RA fully automatic, T = -10 ? 50 °C
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 20 µm |
| BG | 2 |
| Input connection | G 1 |
| Output connection | G 1 |
| A | 121 mm |
| B | 212 mm |
| Flow_1 | 2900 Nl/min |
| Flow_2 | 4400 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 143.8 mm |
| Air purity class at the outlet according to | 4.7.- |
| A1 | 156.0 mm |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Condensate drain | RA fully automatic |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[145415] RIEGLER Filter + lubricator "SYNTESI", BG 1, G 1/4, 20 µm, RA fully automatic](/web/image/product.template/279211/image_128/%5B145415%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%2020%20%C2%B5m%2C%20RA%20fully%20automatic?unique=f5e88f7)
|
Type number: 5612F50L102 |
85.55 € | |
![[145414] RIEGLER Filter + lubricator "SYNTESI", BG 1, G 1/4, 5 µm, RA fully automatic](/web/image/product.template/279210/image_128/%5B145414%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%205%20%C2%B5m%2C%20RA%20fully%20automatic?unique=c86909f)
|
Type number: 5612F40L102 |
85.55 € | |
![[145413] RIEGLER Filter + lubricator "SYNTESI", BG 1, G 1/8, 20 µm, RA fully automatic](/web/image/product.template/279209/image_128/%5B145413%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%2020%20%C2%B5m%2C%20RA%20fully%20automatic?unique=20119c2)
|
Type number: 5611F50L101 |
85.55 € | |
![[145412] RIEGLER Filter + lubricator "SYNTESI", BG 1, G 1/8, 5 µm, RA fully automatic](/web/image/product.template/279208/image_128/%5B145412%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%205%20%C2%B5m%2C%20RA%20fully%20automatic?unique=d1a8feb)
|
Type number: 5611F40L101 |
85.55 € | |
![[145416] RIEGLER Filter + lubricator "SYNTESI", BG 1, G 3/8, 5 µm, RA fully automatic](/web/image/product.template/279212/image_128/%5B145416%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%205%20%C2%B5m%2C%20RA%20fully%20automatic?unique=c9a005a)
|
Type number: 5613F40L103 |
85.55 € | |

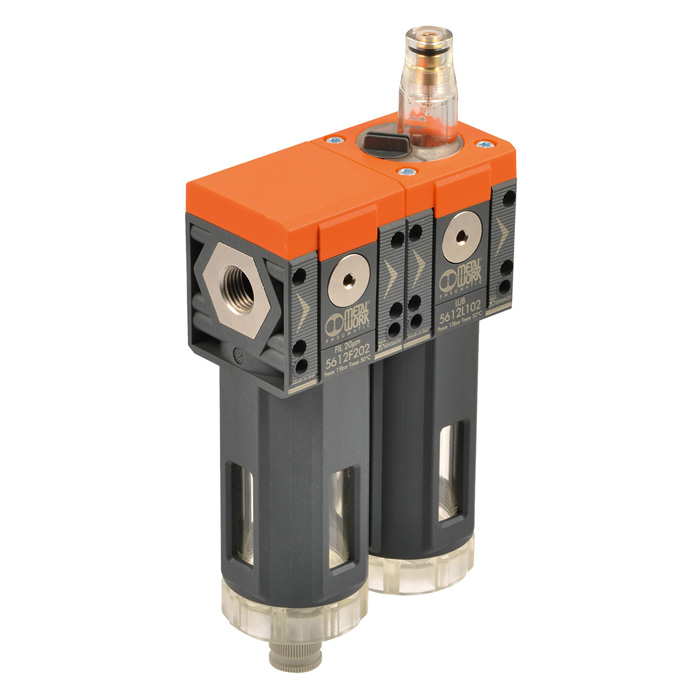

![[145421] RIEGLER Filter + lubricator "SYNTESI", BG 2, G 1/2, 20 µm, RA fully automatic](/web/image/product.template/279217/image_128/%5B145421%5D%20RIEGLER%20Filter%20%2B%20lubricator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%2020%20%C2%B5m%2C%20RA%20fully%20automatic?unique=39cf791)
|
