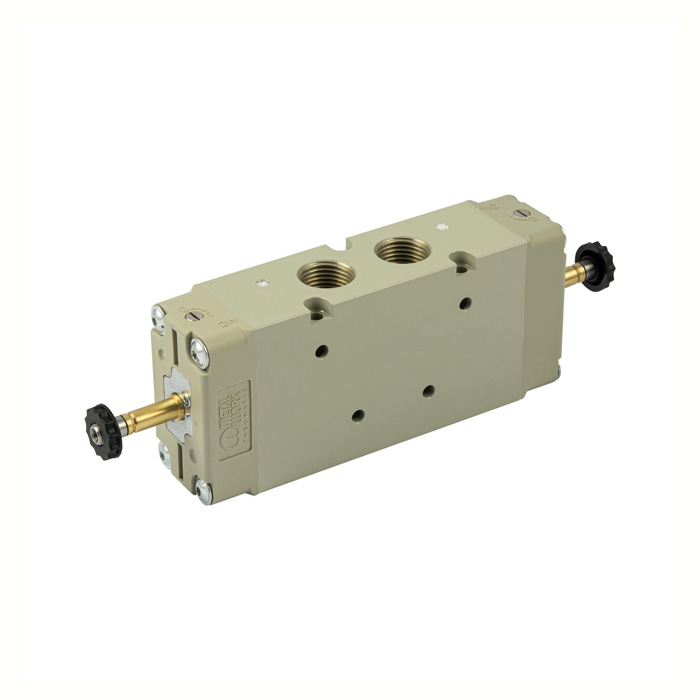

RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/2
Type number: 7030021200
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
145710EAN :
4047322771818Category :
Valves Electropneumatically OperatedWeight :
0.91 kgRIEGLER 5/2-way valve for pneumatic control, max. 10 bar, G 1/2 - type 7030021200
The RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/2 controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is 1 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/2 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 1 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Manual override | resting |
| DN | 15 |
| Actuation | bistable |
| Symbol | 36 |
| Connection | G 1/2 |
| Flow 1 | 3200 Nl/min |
| Flow 2 | 4600 Nl/min |
| Class name | PLUS |
| Function | 45327 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
