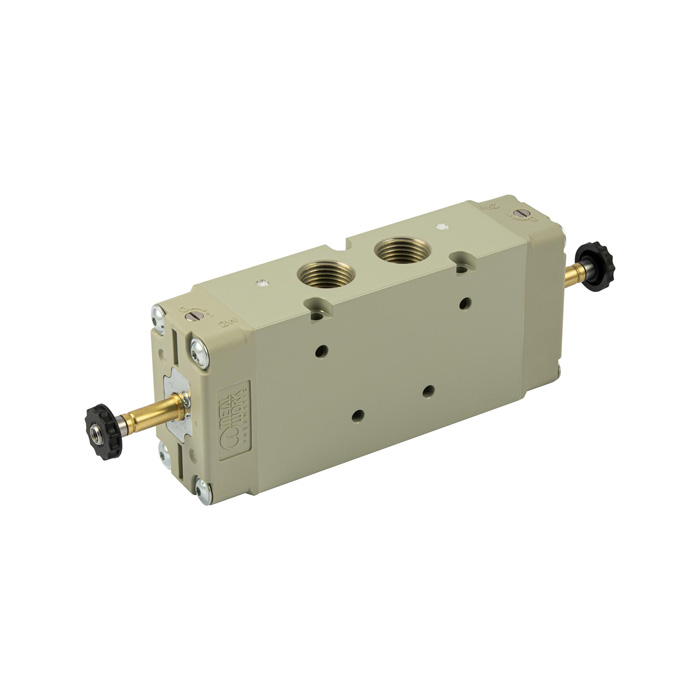

RIEGLER 5/2-way valve, differential piston, electropneumatic, bistable, G 1/2
Type number: 7030021300
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
145714EAN :
4047322771856Category :
Valves Electropneumatically OperatedWeight :
0.92 kg5/2-way valve, differential piston, electropneumatic, bistable, G 1/2, p = 1 ? 10 bar, T = -10 ? 60 °C, aluminum, without plug/coil
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 1 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Manual override | resting |
| DN | 15 |
| Actuation | Differential piston, bistable |
| Symbol | 40 |
| Connection | G 1/2 |
| Flow 1 | 3200 Nl/min |
| Flow 2 | 4600 Nl/min |
| Class name | PLUS |
| Function | 45327 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
