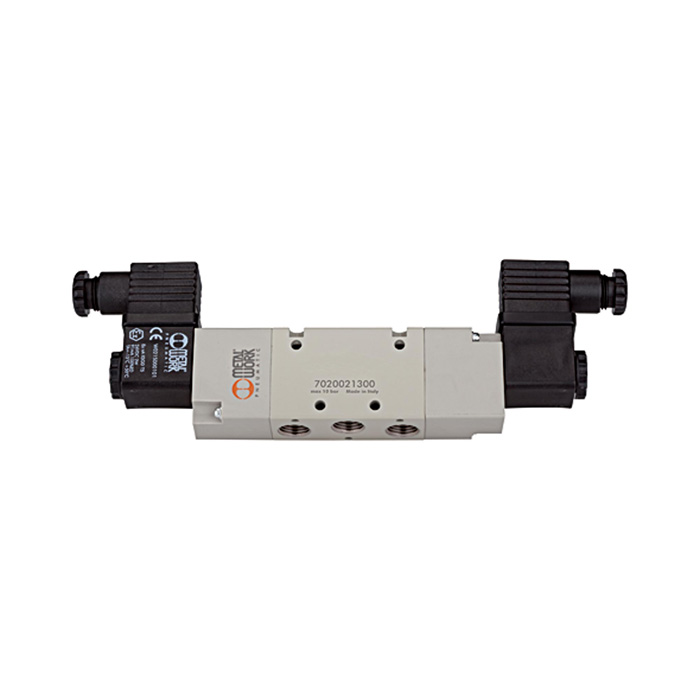

RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/4, 24 V AC

Price:

107.90 €

English (US)
  2. Shop
  3. Valves Electropneumatically Operated
  4. RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/4, 24 V AC
RIEGLER 5/2-way valve, diff. spool, electropneumatic, bistable, G 1/2, 24 V AC
RIEGLER 5/2-way valve, diff. spool, electropneumatic, bistable, G 1/2, 24 V AC
235.61 € 235.61 €
RIEGLER 5/2-way valve, diff. spool, electropneumatic, bistable, G 1/8, 12 V DC
RIEGLER 5/2-way valve, diff. spool, electropneumatic, bistable, G 1/8, 12 V DC
103.54 € 103.54 €

RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/4, 24 V AC

https://www.filcom-technik.de/web/image/product.template/275812/image_1920?unique=170d851

Type number: 517.52.14.D.24A

107.90 € 107.9 EUR 107.90 € VAT Included

125.92 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145888

EAN :

4047322774031

Category :

Valves Electropneumatically Operated

Weight :

0.39 kg

5/2-way valve, differential piston, electropneumatic, bistable, G 1/4, 24 V AC, 50/60 Hz, p = 1 ? 10 bar, aluminum

Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Series Valves Series 70
Operating pressure min. 1 bar
Max. operating pressure 10 bar
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 50 °C
Manual override resting
DN 45419
Actuation Differential piston, bistable
Symbol 40
Connection G 1/4
Flow 1 750 Nl/min
Flow 2 1100 Nl/min
Class name PLUS
Function 45327
Tension 24 V, 50/60 Hz
Flow rate measurement 1 Flow rate at 6 bar and Δp 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar

Maintenance, wear and spare parts

Product Price
[145712] RIEGLER 5/2-way valve, differential piston, electropneumatic, bistable, G 1/4

Type number: 7020021300

 96.54 €
[117313] RIEGLER Device plug, 22 mm, type B

Type number: 1920.9P

 1.48 €
[118628] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 3.5 VA

Type number: 400-514-01

 9.87 €
