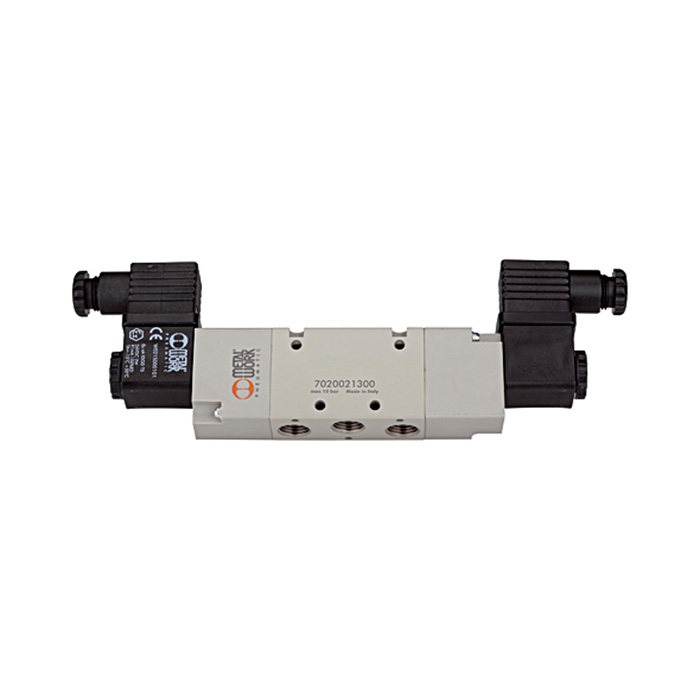

RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/4, 110 VAC

Price:

107.90 €

English (US)
  2. Shop
  3. Valves Electropneumatically Operated
  4. RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/4, 110 VAC
RIEGLER 5/2-way valve two-sided electromagnetic bistable G1/4, 230V,50 Hz
RIEGLER 5/2-way valve two-sided electromagnetic bistable G1/4, 230V,50 Hz
204.17 € 204.17 €
RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/4, 12 V DC
RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/4, 12 V DC
107.90 € 107.90 €

RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/4, 110 VAC

https://www.filcom-technik.de/web/image/product.template/275813/image_1920?unique=982493f

Type number: 517.52.14.D.110A

107.90 € 107.9 EUR 107.90 € VAT Included

125.92 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145889

EAN :

4047322774048

Category :

Valves Electropneumatically Operated

Weight :

0.39 kg

5/2-way valve, differential piston, electropneumatic, bistable, G 1/4, 110 V AC, 50/60 Hz, p = 1 ? 10 bar, aluminum

Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Series Valves Series 70
Operating pressure min. 1 bar
Max. operating pressure 10 bar
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 50 °C
Manual override resting
DN 45419
Actuation Differential piston, bistable
Symbol 40
Connection G 1/4
Flow 1 750 Nl/min
Flow 2 1100 Nl/min
Class name PLUS
Function 45327
Tension 110 V, 50/60 Hz
Flow rate measurement 1 Flow rate at 6 bar and Δp 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar

Maintenance, wear and spare parts

Product Price

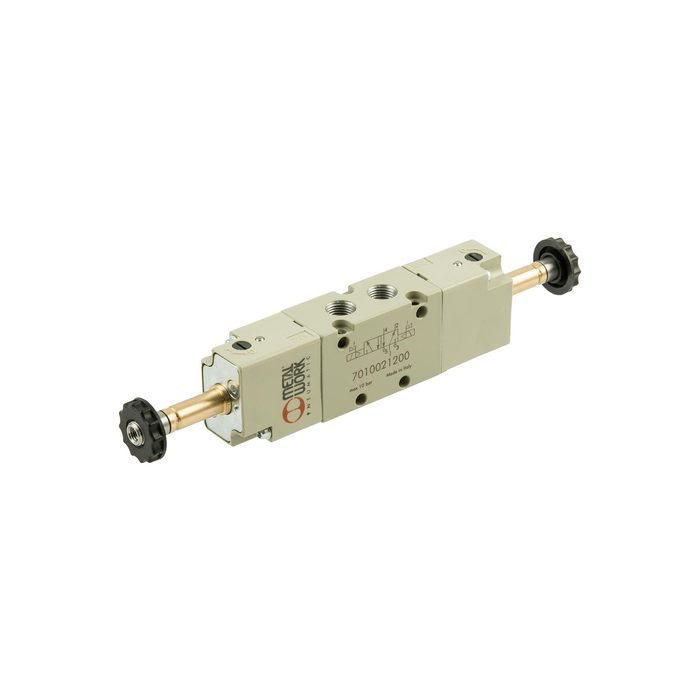

[145712] RIEGLER 5/2-way valve, differential piston, electropneumatic, bistable, G 1/4

Type number: 7020021300

 96.54 €
[117313] RIEGLER Device plug, 22 mm, type B

Type number: 1920.9P

 1.48 €
[118629] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA

Type number: 400-514-07

 9.87 €
