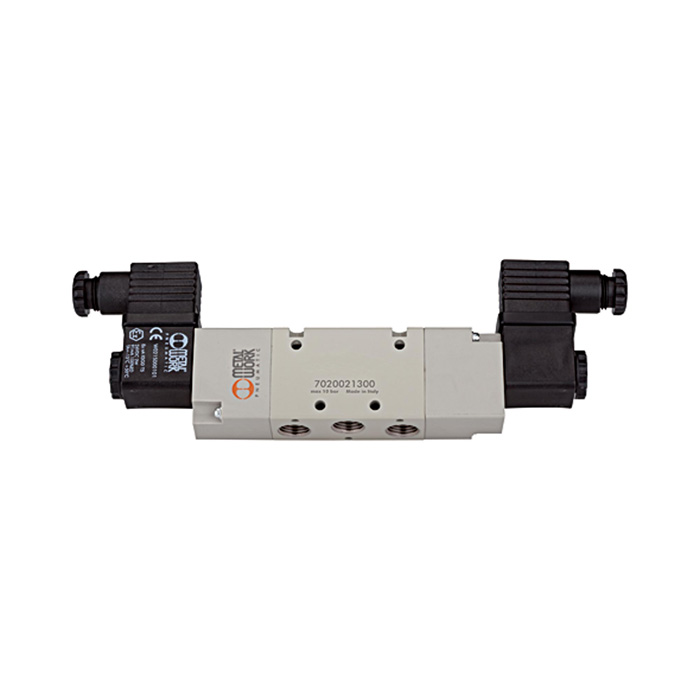

RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 3/8, 110 VAC
Type number: 517.52.38.D.110A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
145916EAN :
4047322774314Category :
Valves Electropneumatically OperatedWeight :
0.39 kg5/2-way valve, differential piston, electropneumatic, bistable, G 3/8, 110 V AC, 50/60 Hz, p = 1 ? 10 bar, aluminum
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 1 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Manual override | resting |
| DN | 45364 |
| Actuation | Differential piston, bistable |
| Symbol | 40 |
| Connection | G 3/8 |
| Flow 1 | 1560 Nl/min |
| Flow 2 | 2150 Nl/min |
| Class name | PLUS |
| Function | 45327 |
| Tension | 110 V, 50/60 Hz |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

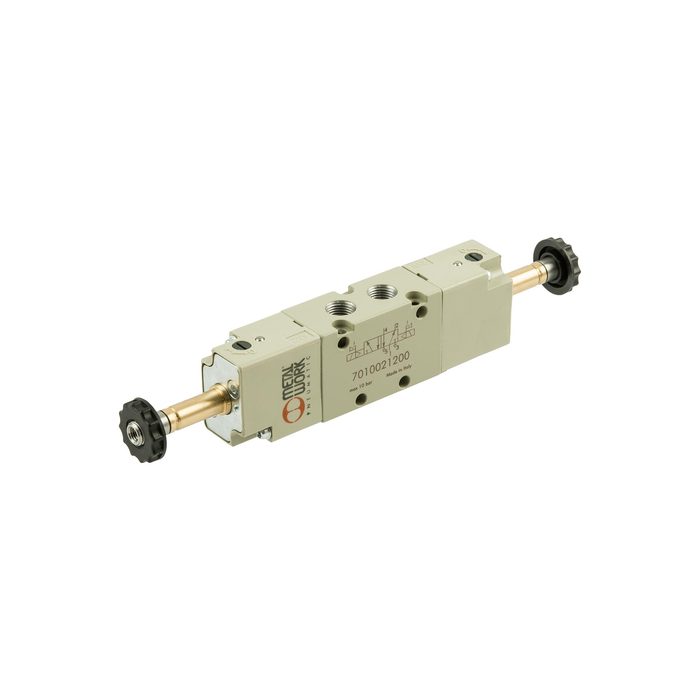

![[145713] RIEGLER 5/2-way valve, differential piston, electropneumatic, bistable, G 3/8](/web/image/product.template/279340/image_128/%5B145713%5D%20RIEGLER%205-2-way%20valve%2C%20differential%20piston%2C%20electropneumatic%2C%20bistable%2C%20G%203-8?unique=e4b76c1)
|
Type number: 7040021300 |
113.70 € | |
![[117313] RIEGLER Device plug, 22 mm, type B](/web/image/product.template/274839/image_128/%5B117313%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B?unique=25efba9)
|
Type number: 1920.9P |
1.48 € | |
![[118629] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275045/image_128/%5B118629%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=cc6c04c)
|
Type number: 400-514-07 |
9.87 € | |
