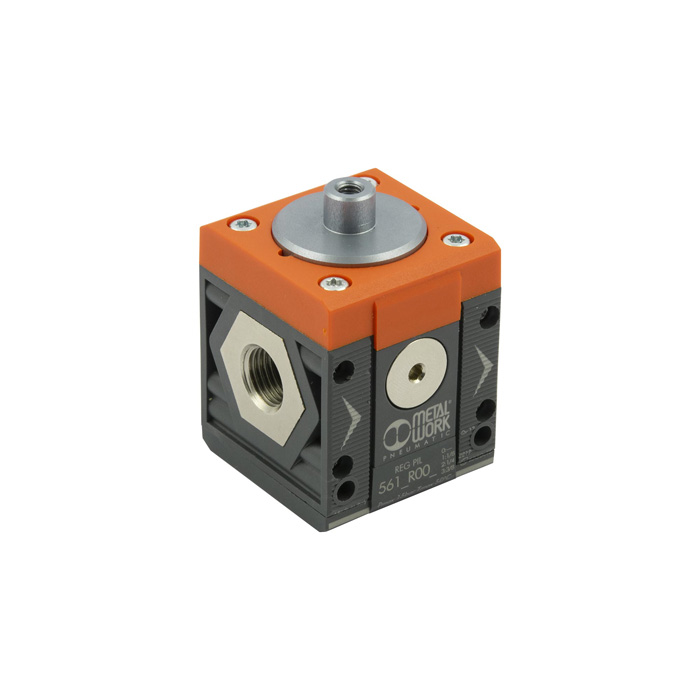

RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 2, G 3/8
Typennummer: 5623R003
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI" made of technopolymer - Type 5623R003
The RIEGLER pneumatic pilot operated pressure regulator "SYNTESI", BG 2, G 3/8 reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of technopolymer with NBR seals. The maximum inlet pressure is 13 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| BG | 2 |
| A | 60.5 mm |
| B | 81 mm |
| D | 70.5 mm |
| Flow 1 | 5500 Nl/min |
| Flow 2 | 6800 Nl/min |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Thread on front and back | G 1/4 |
| Pilot cover | Anodized aluminum plate |
| Pilot connection | M5 |
| Series | Syntesi |
| Input connection | G 3/8 |
| Output connection | G 3/8 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146084] RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 1, G 1/4](/web/image/product.template/275897/image_128/%5B146084%5D%20RIEGLER%20Pneumatic%20pilot%20operated%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4?unique=e3e406f)
|
Typennummer: 5612R002 |
91.26 € | |
![[146083] RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 1, G 1/8](/web/image/product.template/275896/image_128/%5B146083%5D%20RIEGLER%20Pneumatic%20pilot%20operated%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8?unique=baeba3d)
|
Typennummer: 5611R001 |
91.26 € | |
![[146085] RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 1, G 3/8](/web/image/product.template/275898/image_128/%5B146085%5D%20RIEGLER%20Pneumatic%20pilot%20operated%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8?unique=e6caefb)
|
Typennummer: 5613R003 |
91.26 € | |
![[146053] RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 1, without sockets](/web/image/product.template/275883/image_128/%5B146053%5D%20RIEGLER%20Pneumatic%20pilot%20operated%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%201%2C%20without%20sockets?unique=c07bd35)
|
Typennummer: 5610R000 |
89.06 € | |
![[146089] RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 2, G 1](/web/image/product.template/275902/image_128/%5B146089%5D%20RIEGLER%20Pneumatic%20pilot%20operated%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201?unique=e217b71)
|
Typennummer: 5626R006 |
127.06 € | |
![[146087] RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 2, G 1/2](/web/image/product.template/275900/image_128/%5B146087%5D%20RIEGLER%20Pneumatic%20pilot%20operated%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2?unique=70895d4)
|
Typennummer: 5624R004 |
118.32 € | |
![[146088] RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 2, G 3/4](/web/image/product.template/275901/image_128/%5B146088%5D%20RIEGLER%20Pneumatic%20pilot%20operated%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4?unique=f6cc31e)
|
Typennummer: 5625R005 |
127.06 € | |
![[146054] RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 2, without sockets](/web/image/product.template/275884/image_128/%5B146054%5D%20RIEGLER%20Pneumatic%20pilot%20operated%20pressure%20regulator%20%22SYNTESI%22%2C%20BG%202%2C%20without%20sockets?unique=e2812de)
|
Typennummer: 5620R000 |
107.18 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[144692] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1/2, incl. 2 screws](/web/image/product.template/277874/image_128/%5B144692%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20incl.%202%20screws?unique=790f2ab)
|
Type number: 9210012 |
5.77 € | |
![[144693] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/4, incl. 2 screws](/web/image/product.template/277875/image_128/%5B144693%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%20incl.%202%20screws?unique=5b8836a)
|
Type number: 9210013 |
10.13 € | |
![[144694] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1, incl. 2 screws](/web/image/product.template/277876/image_128/%5B144694%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%20incl.%202%20screws?unique=b7b6ecf)
|
Type number: 9210014 |
10.13 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=caf2ffd)
|
Type number: 9210010 |
6.79 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=c35341c)
|
Type number: 9210019 |
6.39 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=a963ec3)
|
Type number: 9210006 |
6.47 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=67bdee8)
|
Type number: 9210031 |
0.76 € | |

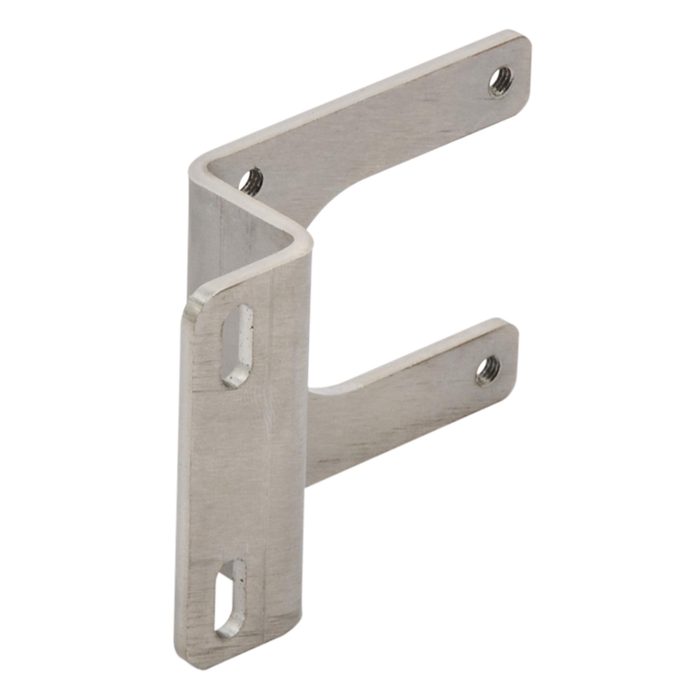

![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=d53f1bd)
|
