RIEGLER 3/3 Tube fitting G1x19, swivel nut, taper seat, CH type, Brass
Typennummer: SV1019MS33CH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/3 brass hose fitting CW614N, for pneumatic installation, max. 16 bar - Type SV1019MS33CH
The RIEGLER 3/3 hose connector, G 1 x 19, O-nut, flat, CH version, MS connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of brass CW614N. The operating pressure range is 0 bar to 16 bar. The operating temperature is between -10 °C and 100 °C. G 1 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 16 bar |
| Material | Brass CW614N |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Thread | G 1 |
| SW | 36 mm |
| for hose | 19 mm |
| D | 58 mm |
| L1 | 79 mm |
| L2 | 29.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146203] RIEGLER 3/3 Tube fitting G3/4x13, swivel nut, taper seat, CH type, Brass](/web/image/product.template/210476/image_128/%5B146203%5D%20RIEGLER%203-3%20Tube%20fitting%20G3-4x13%2C%20swivel%20nut%2C%20taper%20seat%2C%20CH%20type%2C%20Brass?unique=86dfd10)
|
Typennummer: SV3413MS33CH |
2.82 € | |

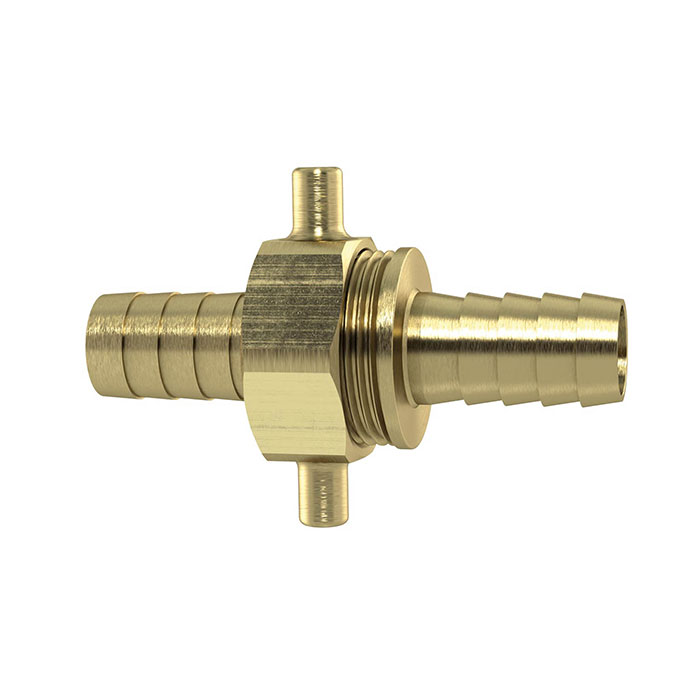

![[146204] RIEGLER 3/3 Tube fitting G3/4x16, swivel nut, taper seat, CH type, Brass](/web/image/product.template/210477/image_128/%5B146204%5D%20RIEGLER%203-3%20Tube%20fitting%20G3-4x16%2C%20swivel%20nut%2C%20taper%20seat%2C%20CH%20type%2C%20Brass?unique=daf8ef9)
|
