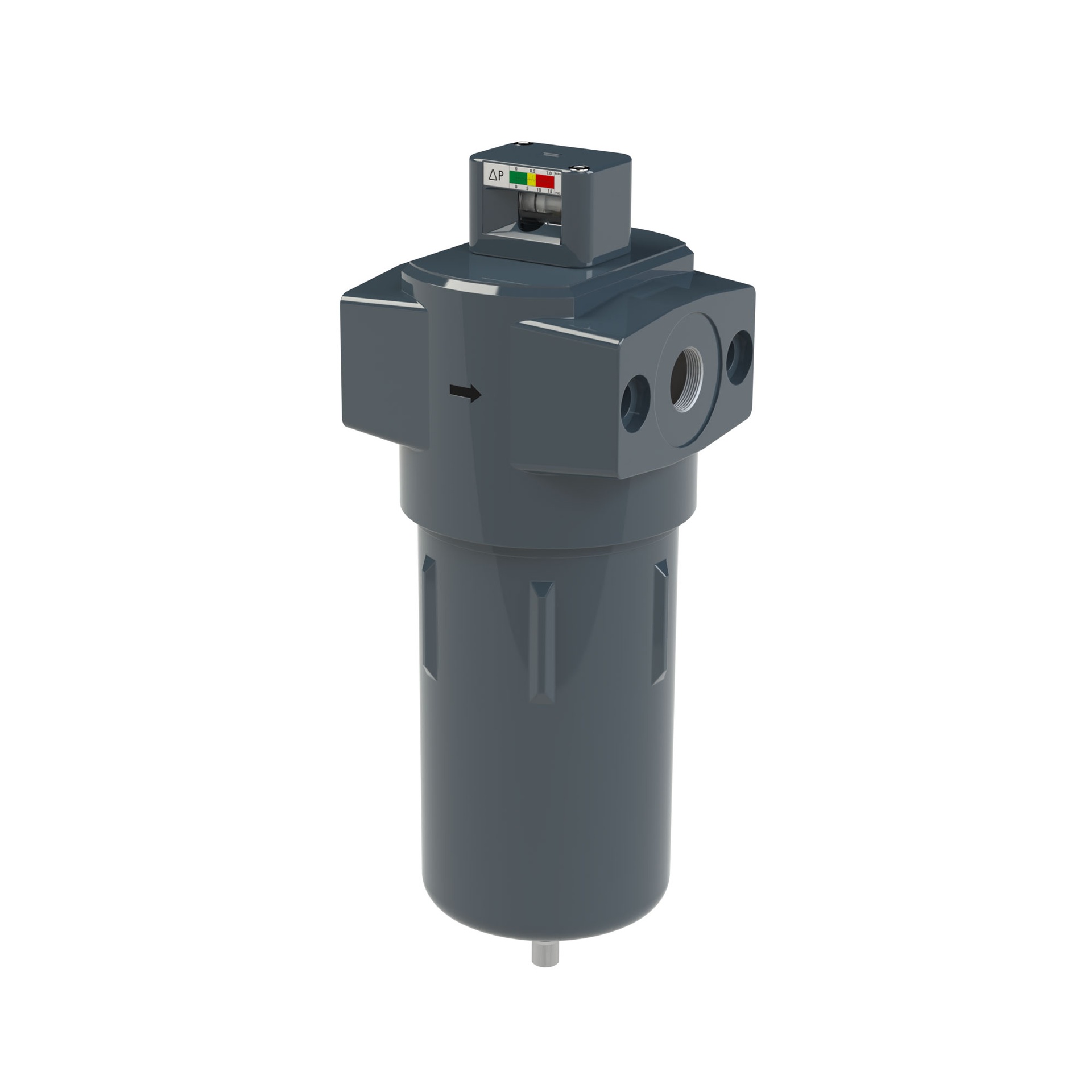

RIEGLER pre-filter with differential pressure gauge, 1 µm, G 3/8
Type number: FSPV.G38
EAN: 4047322786409
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Coaxial valve, pneumatically operated, single-acting NO, MS vern. FKM, operating temp. -20 °C to 150 °C, control pressure 4.2 - 8 bar, Rp 3/8, DN 10
| Efficiency | 999.99 |
| Display range of the | 1 bar |
| Execution | with differential pressure gauge |
| Flow_1 | 1170 l/min |
| Steam trap | automatic drain valve |
| D | 202 mm |
| A | 87 mm |
| Filter element | Cellulose |
| Temperature range min. | 1.5 °C |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Particle separation | 1 µm |
| Filter fineness | 1 µm |
| Display range of the | 0 bar |
| Inlet pressure max. | 16 bar |
| C | 21 mm |
| Inlet pressure min. | 4 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Temperature range max. | 80 °C |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Thread | G 3/8 |
| Class name | PLUS |
