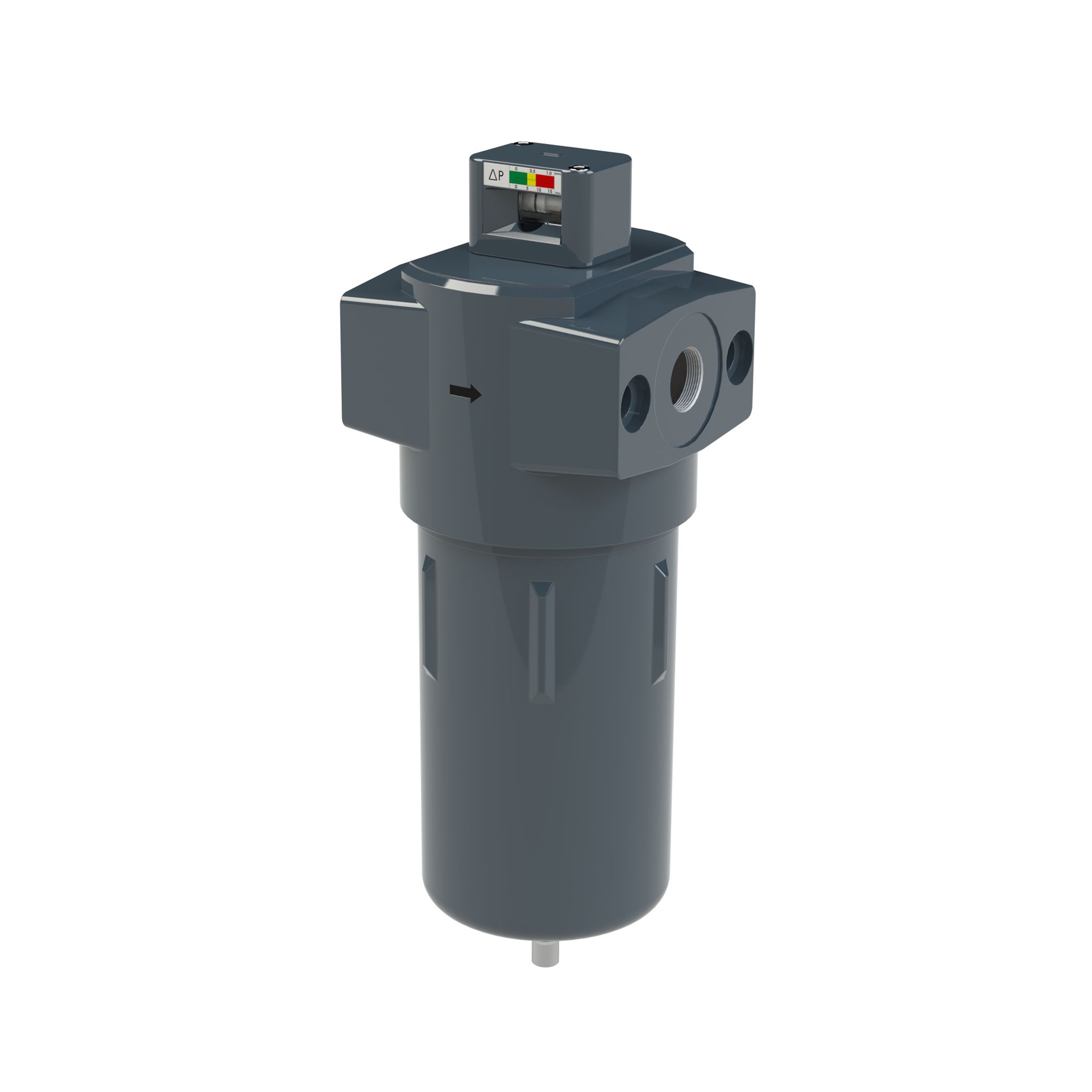

RIEGLER microfilter with differential pressure gauge, 0.01 µm, G 3/4
Typennummer: FSPM.G34
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter with differential pressure gauge, 0,01 µm,G3/4, input pressure 4 - 16 bar, temperature 1.5 °C to 80 °C
| Efficiency | 999.99 |
| Display range of the | 1 bar |
| Execution | with differential pressure gauge |
| Steam trap | automatic drain valve |
| D | 286 mm |
| Filter element | Cellulose |
| Temperature range min. | 1.5 °C |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Flow_1 | 3000 l/min |
| Particle separation | 0.01 µm |
| Display range of the | 0 bar |
| Filter fineness | 0.01 µm |
| A | 130 mm |
| Inlet pressure max. | 16 bar |
| Inlet pressure min. | 4 bar |
| C | 43 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Temperature range max. | 80 °C |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Thread | G 3/4 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146943] RIEGLER microfilter with differential pressure gauge, 0.01 µm, G 1](/web/image/product.template/284028/image_128/%5B146943%5D%20RIEGLER%20microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201?unique=ba71ee2)
|
Typennummer: FSPM.G1 |
482.12 € | |
![[146944] RIEGLER microfilter with differential pressure gauge, 0.01 µm, G 1 1/2](/web/image/product.template/284029/image_128/%5B146944%5D%20RIEGLER%20microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201%201-2?unique=cfd40f2)
|
Typennummer: FSPM.G112 |
583.23 € | |
![[146941] RIEGLER microfilter with differential pressure gauge, 0.01 µm, G 1/2](/web/image/product.template/284026/image_128/%5B146941%5D%20RIEGLER%20microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201-2?unique=eeb9a62)
|
Typennummer: FSPM.G12 |
358.13 € | |
![[146939] RIEGLER microfilter with differential pressure gauge, 0.01 µm, G 1/4](/web/image/product.template/284024/image_128/%5B146939%5D%20RIEGLER%20microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201-4?unique=a767ef5)
|
Typennummer: FSPM.G14 |
358.13 € | |
![[146945] RIEGLER microfilter with differential pressure gauge, 0.01 µm, G 2](/web/image/product.template/284030/image_128/%5B146945%5D%20RIEGLER%20microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%202?unique=5a17cab)
|
Typennummer: FSPM.G2 |
781.24 € | |
![[146940] RIEGLER microfilter with differential pressure gauge, 0.01 µm, G 3/8](/web/image/product.template/284025/image_128/%5B146940%5D%20RIEGLER%20microfilter%20with%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%203-8?unique=5da277c)
|
Typennummer: FSPM.G38 |
358.13 € | |
![[146950] RIEGLER microfilter without differential pressure gauge, 0.01 µm, G 1](/web/image/product.template/284035/image_128/%5B146950%5D%20RIEGLER%20microfilter%20without%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201?unique=ac6fe6b)
|
Typennummer: FSPM.G1.OM |
400.46 € | |
![[146951] RIEGLER microfilter without differential pressure gauge, 0.01 µm, G 1 1/2](/web/image/product.template/284036/image_128/%5B146951%5D%20RIEGLER%20microfilter%20without%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201%201-2?unique=1ec9446)
|
Typennummer: FSPM.G112.OM |
504.93 € | |
![[146948] RIEGLER microfilter without differential pressure gauge, 0.01 µm, G 1/2](/web/image/product.template/284033/image_128/%5B146948%5D%20RIEGLER%20microfilter%20without%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201-2?unique=cb7a53d)
|
Typennummer: FSPM.G12.OM |
250.76 € | |
![[146946] RIEGLER microfilter without differential pressure gauge, 0.01 µm, G 1/4](/web/image/product.template/284031/image_128/%5B146946%5D%20RIEGLER%20microfilter%20without%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%201-4?unique=0b27f8d)
|
Typennummer: FSPM.G14.OM |
250.76 € | |
![[146952] RIEGLER microfilter without differential pressure gauge, 0.01 µm, G 2](/web/image/product.template/284037/image_128/%5B146952%5D%20RIEGLER%20microfilter%20without%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%202?unique=f02da5c)
|
Typennummer: FSPM.G2.OM |
728.03 € | |
![[146949] RIEGLER microfilter without differential pressure gauge, 0.01 µm, G 3/4](/web/image/product.template/284034/image_128/%5B146949%5D%20RIEGLER%20microfilter%20without%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%203-4?unique=ee48e44)
|
Typennummer: FSPM.G34.OM |
314.72 € | |
![[146947] RIEGLER microfilter without differential pressure gauge, 0.01 µm, G 3/8](/web/image/product.template/284032/image_128/%5B146947%5D%20RIEGLER%20microfilter%20without%20differential%20pressure%20gauge%2C%200.01%20%C2%B5m%2C%20G%203-8?unique=e5cab9c)
|
Typennummer: FSPM.G38.OM |
250.76 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[147702] RIEGLER connection set for 2 filters, G 3/4 to G 1 1/2](/web/image/product.template/284400/image_128/%5B147702%5D%20RIEGLER%20connection%20set%20for%202%20filters%2C%20G%203-4%20to%20G%201%201-2?unique=dab447e)
|
Typennummer: VBSFSP.2.G34-G112 |
94.96 € | |
![[147704] RIEGLER connection set for 3 filters, G 3/4 to G 1 1/2](/web/image/product.template/284402/image_128/%5B147704%5D%20RIEGLER%20connection%20set%20for%203%20filters%2C%20G%203-4%20to%20G%201%201-2?unique=d180b2e)
|
Typennummer: VBSFSP.3.G34-G112 |
90.04 € | |
![[147706] RIEGLER wall mounting set for 1 filter, G 3/4 to G 1 1/2](/web/image/product.template/284404/image_128/%5B147706%5D%20RIEGLER%20wall%20mounting%20set%20for%201%20filter%2C%20G%203-4%20to%20G%201%201-2?unique=1a30e86)
|
Typennummer: WMSFSP.G34-G112 |
39.95 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[147707] RIEGLER Automatic drain valve, pre-filter, microfilter, G 1/4 - G 1 1/2](/web/image/product.template/284405/image_128/%5B147707%5D%20RIEGLER%20Automatic%20drain%20valve%2C%20pre-filter%2C%20microfilter%2C%20G%201-4%20-%20G%201%201-2?unique=7d8a4fb)
|
Typennummer: AAFSPVM.G14-G112 |
58.04 € | |
![[146967] RIEGLER differential pressure gauge, 0 - 1 bar](/web/image/product.template/284052/image_128/%5B146967%5D%20RIEGLER%20differential%20pressure%20gauge%2C%200%20-%201%20bar?unique=045d732)
|
Typennummer: FSPDM.0-1B |
54.00 € | |
![[147721] RIEGLER filter element for microfilter, 0.01 µm, G 3/4](/web/image/product.template/284419/image_128/%5B147721%5D%20RIEGLER%20filter%20element%20for%20microfilter%2C%200.01%20%C2%B5m%2C%20G%203-4?unique=d5ee1ee)
|
Typennummer: FEFSPM.G34 |
53.98 € | |
