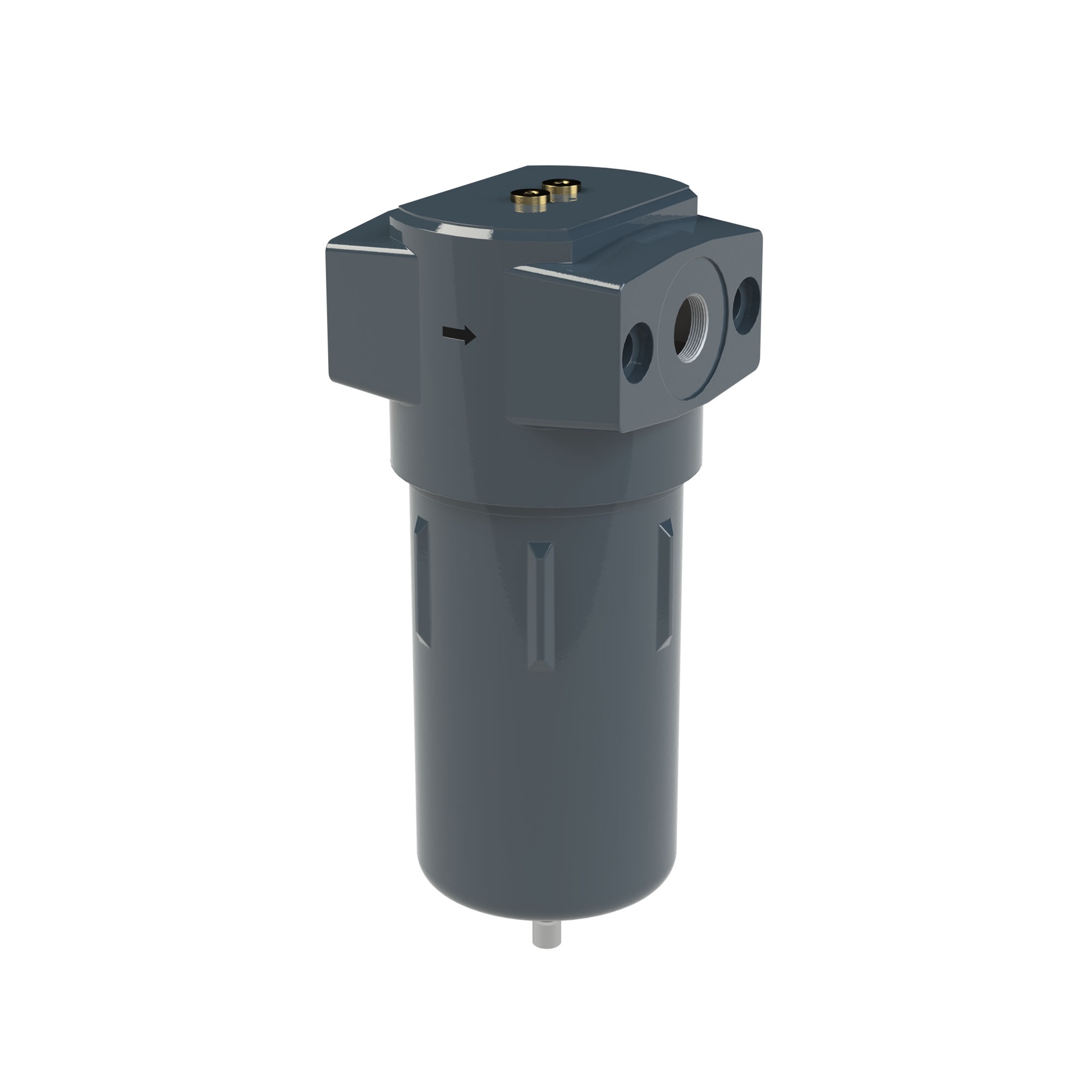

RIEGLER microfilter without differential pressure gauge, 0.01 µm, G 3/8
Typennummer: FSPM.G38.OM
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Microfilter without differential pressure gauge, 0.01 µm, G 3/8, inlet pressure 4 - 16 bar, temperature range 1.5 °C to 80 °C
| Efficiency | 999.99 |
| Display range of the | 1 bar |
| Execution | without differential pressure gauge |
| Flow 1 | 1170 l/min |
| Steam trap | automatic drain valve |
| D | 202 mm |
| A | 87 mm |
| Filter element | Cellulose |
| Temperature range min. | 1.5 °C |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Particle separation | 0.01 µm |
| Display range of the | 0 bar |
| Filter fineness | 0.01 µm |
| Inlet pressure max. | 16 bar |
| C | 21 mm |
| Inlet pressure min. | 4 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Temperature range max. | 80 °C |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Thread | G 3/8 |
| Class name | PLUS |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[146967] RIEGLER differential pressure gauge, 0 - 1 bar](/web/image/product.template/284052/image_128/%5B146967%5D%20RIEGLER%20differential%20pressure%20gauge%2C%200%20-%201%20bar?unique=2560713)
|
Typennummer: FSPDM.0-1B |
53.26 € | |
![[147701] RIEGLER connection set for 2 filters, G 1/4 to G 1/2](/web/image/product.template/284399/image_128/%5B147701%5D%20RIEGLER%20connection%20set%20for%202%20filters%2C%20G%201-4%20to%20G%201-2?unique=7fb20fb)
|
Typennummer: VBSFSP.2.G14-G12 |
36.45 € | |
![[147703] RIEGLER connection set for 3 filters, G 1/4 to G 1/2](/web/image/product.template/284401/image_128/%5B147703%5D%20RIEGLER%20connection%20set%20for%203%20filters%2C%20G%201-4%20to%20G%201-2?unique=970bdbe)
|
Typennummer: VBSFSP.3.G14-G12 |
57.22 € | |
![[147705] RIEGLER wall mounting set for 1 filter, G 1/4 to G 1/2](/web/image/product.template/284403/image_128/%5B147705%5D%20RIEGLER%20wall%20mounting%20set%20for%201%20filter%2C%20G%201-4%20to%20G%201-2?unique=fb6cdfd)
|
Typennummer: WMSFSP.G14-G12 |
38.07 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

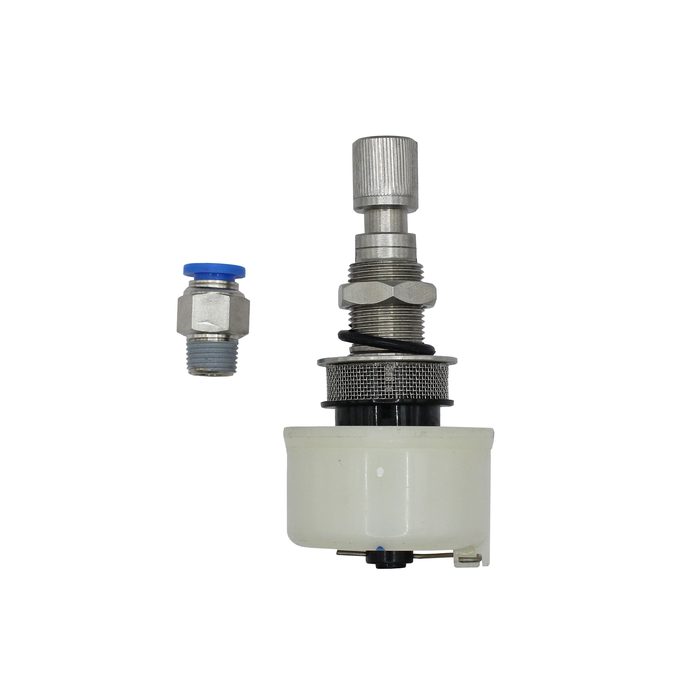

![[147707] RIEGLER Automatic drain valve, pre-filter, microfilter, G 1/4 - G 1 1/2](/web/image/product.template/284405/image_128/%5B147707%5D%20RIEGLER%20Automatic%20drain%20valve%2C%20pre-filter%2C%20microfilter%2C%20G%201-4%20-%20G%201%201-2?unique=dffaa70)
|
Typennummer: AAFSPVM.G14-G112 |
58.02 € | |
![[147719] RIEGLER filter element for microfilter, 0.01 µm, G 3/8](/web/image/product.template/284417/image_128/%5B147719%5D%20RIEGLER%20filter%20element%20for%20microfilter%2C%200.01%20%C2%B5m%2C%20G%203-8?unique=0d2e56b)
|
Typennummer: FEFSPM.G38 |
43.46 € | |
