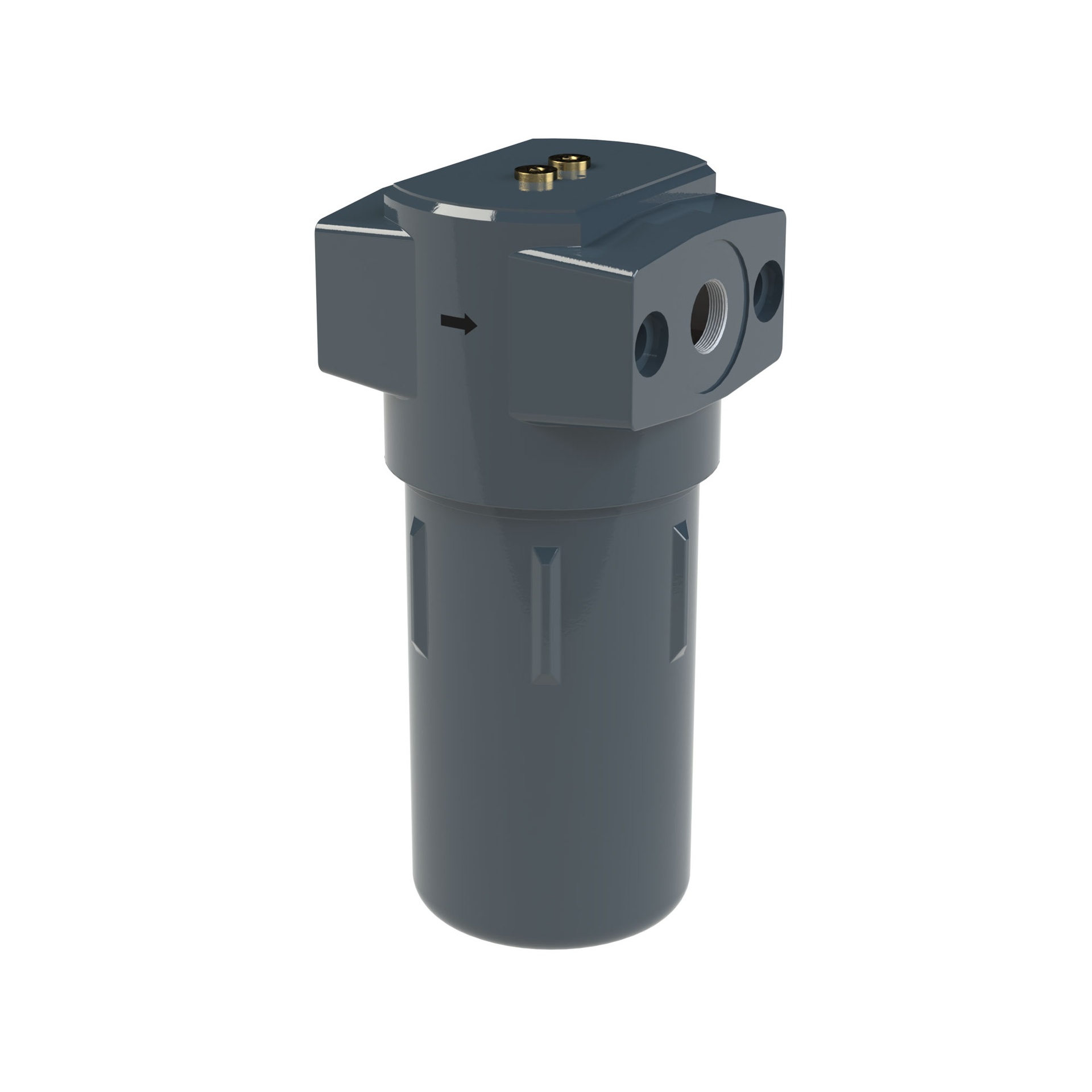

RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 1/4
Typennummer: FSPA.G14.OM
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 1/4, inlet pressure 4 - 16 bar, temperature range 5 °C to 50 °C
| Display range of the | 1 bar |
| Execution | without differential pressure gauge |
| Flow_1 | 830 l/min |
| Steam trap | semi-automatic drain valve |
| A | 87 mm |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Display range of the | 0 bar |
| Residual oil content | 0.003 mg/m³ |
| Inlet pressure max. | 16 bar |
| D | 175 mm |
| C | 21 mm |
| Inlet pressure min. | 4 bar |
| Temperature range min. | 5 °C |
| Temperature range max. | 50 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Filter element | Activated carbon |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Thread | G 1/4 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146957] RIEGLER activated carbon filter w. differential pressure gauge, 0.003 mg/m³, G 1](/web/image/product.template/284042/image_128/%5B146957%5D%20RIEGLER%20activated%20carbon%20filter%20w.%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%201?unique=3be9109)
|
Typennummer: FSPA.G1 |
433.42 € | |
![[146958] RIEGLER activated carbon filter w. differential pressure gauge, 0.003 mg/m³, G 1 1/2](/web/image/product.template/284043/image_128/%5B146958%5D%20RIEGLER%20activated%20carbon%20filter%20w.%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%201%201-2?unique=79da382)
|
Typennummer: FSPA.G112 |
539.87 € | |
![[146955] RIEGLER activated carbon filter w. differential pressure gauge, 0.003 mg/m³, G 1/2](/web/image/product.template/284040/image_128/%5B146955%5D%20RIEGLER%20activated%20carbon%20filter%20w.%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%201-2?unique=0be3f0b)
|
Typennummer: FSPA.G12 |
309.82 € | |
![[146953] RIEGLER activated carbon filter w. differential pressure gauge, 0.003 mg/m³, G 1/4](/web/image/product.template/284038/image_128/%5B146953%5D%20RIEGLER%20activated%20carbon%20filter%20w.%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%201-4?unique=7071792)
|
Typennummer: FSPA.G14 |
309.82 € | |
![[146959] RIEGLER activated carbon filter w. differential pressure gauge, 0.003 mg/m³, G 2](/web/image/product.template/284044/image_128/%5B146959%5D%20RIEGLER%20activated%20carbon%20filter%20w.%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%202?unique=52869bc)
|
Typennummer: FSPA.G2 |
734.13 € | |
![[146956] RIEGLER activated carbon filter w. differential pressure gauge, 0.003 mg/m³, G 3/4](/web/image/product.template/284041/image_128/%5B146956%5D%20RIEGLER%20activated%20carbon%20filter%20w.%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%203-4?unique=7e705eb)
|
Typennummer: FSPA.G34 |
411.20 € | |
![[146954] RIEGLER activated carbon filter w. differential pressure gauge, 0.003 mg/m³, G 3/8](/web/image/product.template/284039/image_128/%5B146954%5D%20RIEGLER%20activated%20carbon%20filter%20w.%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%203-8?unique=4689f67)
|
Typennummer: FSPA.G38 |
309.82 € | |
![[146964] RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 1](/web/image/product.template/284049/image_128/%5B146964%5D%20RIEGLER%20activated%20carbon%20filter%20without%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%201?unique=d1ed1e1)
|
Typennummer: FSPA.G1.OM |
341.84 € | |
![[146965] RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 1 1/2](/web/image/product.template/284050/image_128/%5B146965%5D%20RIEGLER%20activated%20carbon%20filter%20without%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%201%201-2?unique=88404ec)
|
Typennummer: FSPA.G112.OM |
451.62 € | |
![[146962] RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 1/2](/web/image/product.template/284047/image_128/%5B146962%5D%20RIEGLER%20activated%20carbon%20filter%20without%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%201-2?unique=99338d9)
|
Typennummer: FSPA.G12.OM |
199.61 € | |
![[146966] RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 2](/web/image/product.template/284051/image_128/%5B146966%5D%20RIEGLER%20activated%20carbon%20filter%20without%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%202?unique=863da1d)
|
Typennummer: FSPA.G2.OM |
701.26 € | |
![[146963] RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 3/4](/web/image/product.template/284048/image_128/%5B146963%5D%20RIEGLER%20activated%20carbon%20filter%20without%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%203-4?unique=9dacf20)
|
Typennummer: FSPA.G34.OM |
299.46 € | |
![[146961] RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 3/8](/web/image/product.template/284046/image_128/%5B146961%5D%20RIEGLER%20activated%20carbon%20filter%20without%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3%2C%20G%203-8?unique=3964145)
|
Typennummer: FSPA.G38.OM |
199.61 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

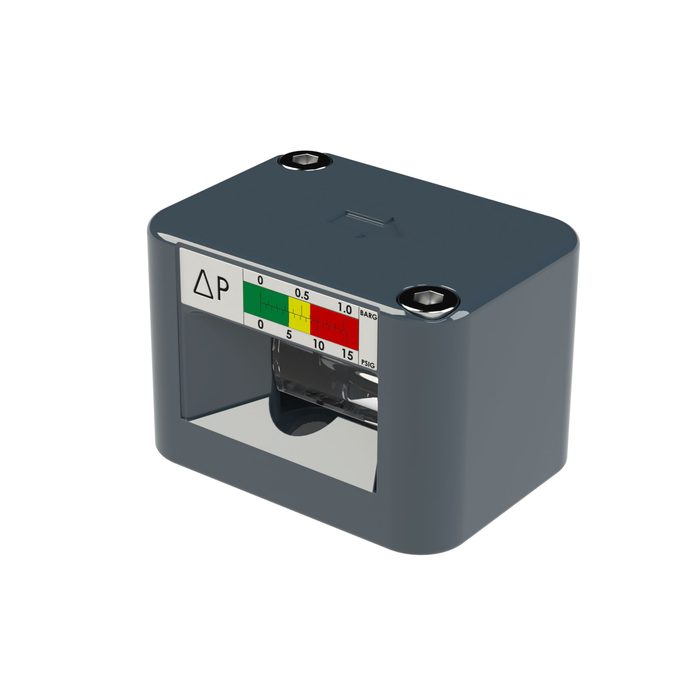

![[146967] RIEGLER differential pressure gauge, 0 - 1 bar](/web/image/product.template/284052/image_128/%5B146967%5D%20RIEGLER%20differential%20pressure%20gauge%2C%200%20-%201%20bar?unique=d167ef3)
|
Typennummer: FSPDM.0-1B |
54.00 € | |
![[147701] RIEGLER connection set for 2 filters, G 1/4 to G 1/2](/web/image/product.template/284399/image_128/%5B147701%5D%20RIEGLER%20connection%20set%20for%202%20filters%2C%20G%201-4%20to%20G%201-2?unique=d324569)
|
Typennummer: VBSFSP.2.G14-G12 |
36.95 € | |

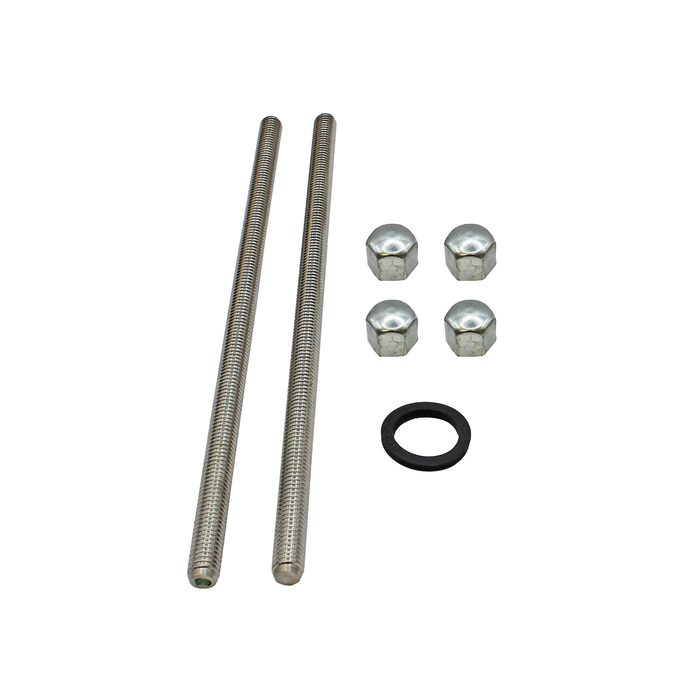

![[147703] RIEGLER connection set for 3 filters, G 1/4 to G 1/2](/web/image/product.template/284401/image_128/%5B147703%5D%20RIEGLER%20connection%20set%20for%203%20filters%2C%20G%201-4%20to%20G%201-2?unique=9acaaeb)
|
Typennummer: VBSFSP.3.G14-G12 |
57.22 € | |
![[147705] RIEGLER wall mounting set for 1 filter, G 1/4 to G 1/2](/web/image/product.template/284403/image_128/%5B147705%5D%20RIEGLER%20wall%20mounting%20set%20for%201%20filter%2C%20G%201-4%20to%20G%201-2?unique=6d4bfc2)
|
Typennummer: WMSFSP.G14-G12 |
38.59 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

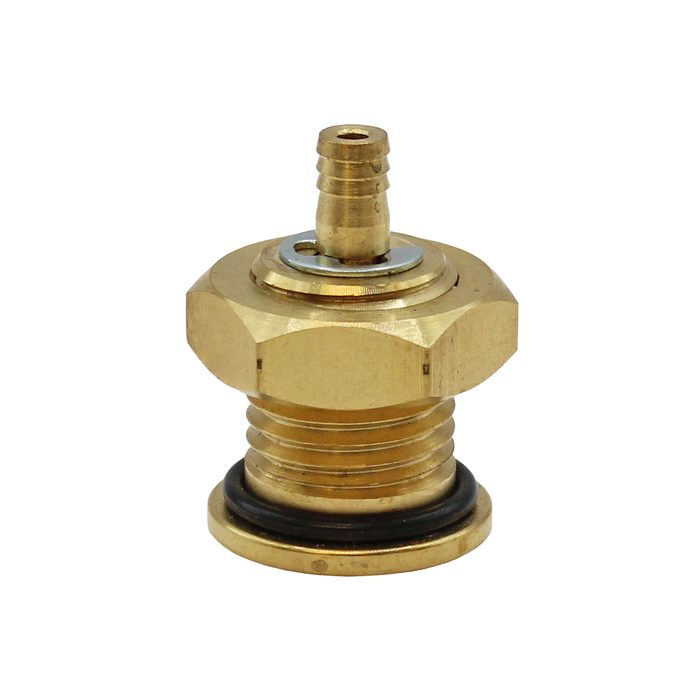

![[147709] RIEGLER semi-automatic drain valve for activated charcoal filter, G 1/4 - G 1 1/2](/web/image/product.template/284407/image_128/%5B147709%5D%20RIEGLER%20semi-automatic%20drain%20valve%20for%20activated%20charcoal%20filter%2C%20G%201-4%20-%20G%201%201-2?unique=a552dda)
|
Typennummer: HAAFSPVM.G14-G112 |
32.39 € | |
