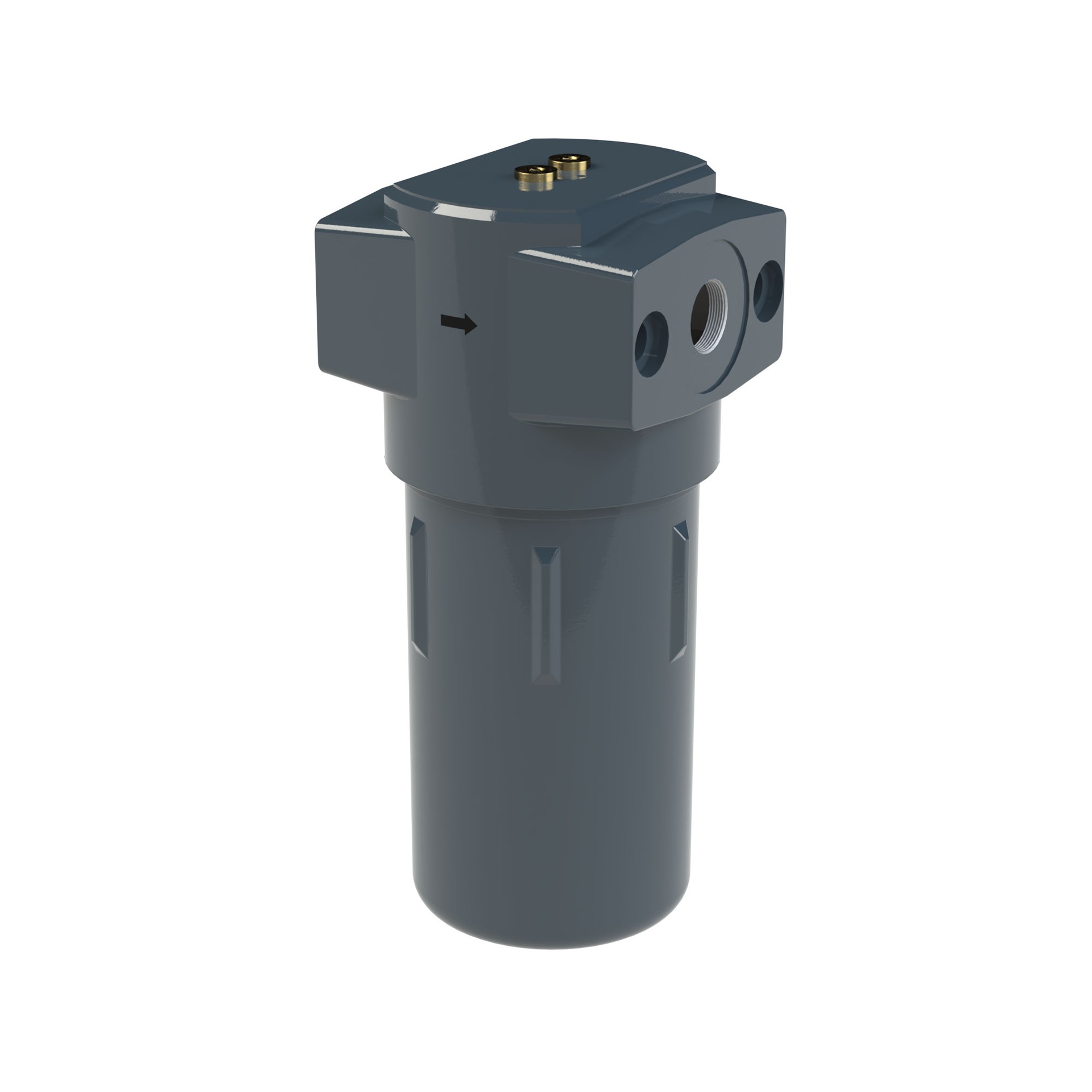

RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 3/8
Typennummer: FSPA.G38.OM
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter without differential pressure gauge made of aluminum, for compressed air treatment - Type FSPA.G38.OM
The RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 3/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 16 bar. The temperature range is between 5 °C and 50 °C. G 3/8 connection thread - suitable for common industry standards. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Display range of the | 1 bar |
| Execution | without differential pressure gauge |
| Flow 1 | 1170 l/min |
| Steam trap | semi-automatic drain valve |
| A | 87 mm |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Display range of the | 0 bar |
| Residual oil content | 0.003 mg/m³ |
| Inlet pressure max. | 16 bar |
| D | 175 mm |
| C | 21 mm |
| Inlet pressure min. | 4 bar |
| Temperature range min. | 5 °C |
| Temperature range max. | 50 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Filter element | Activated carbon |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Thread | G 3/8 |
| Class name | PLUS |
