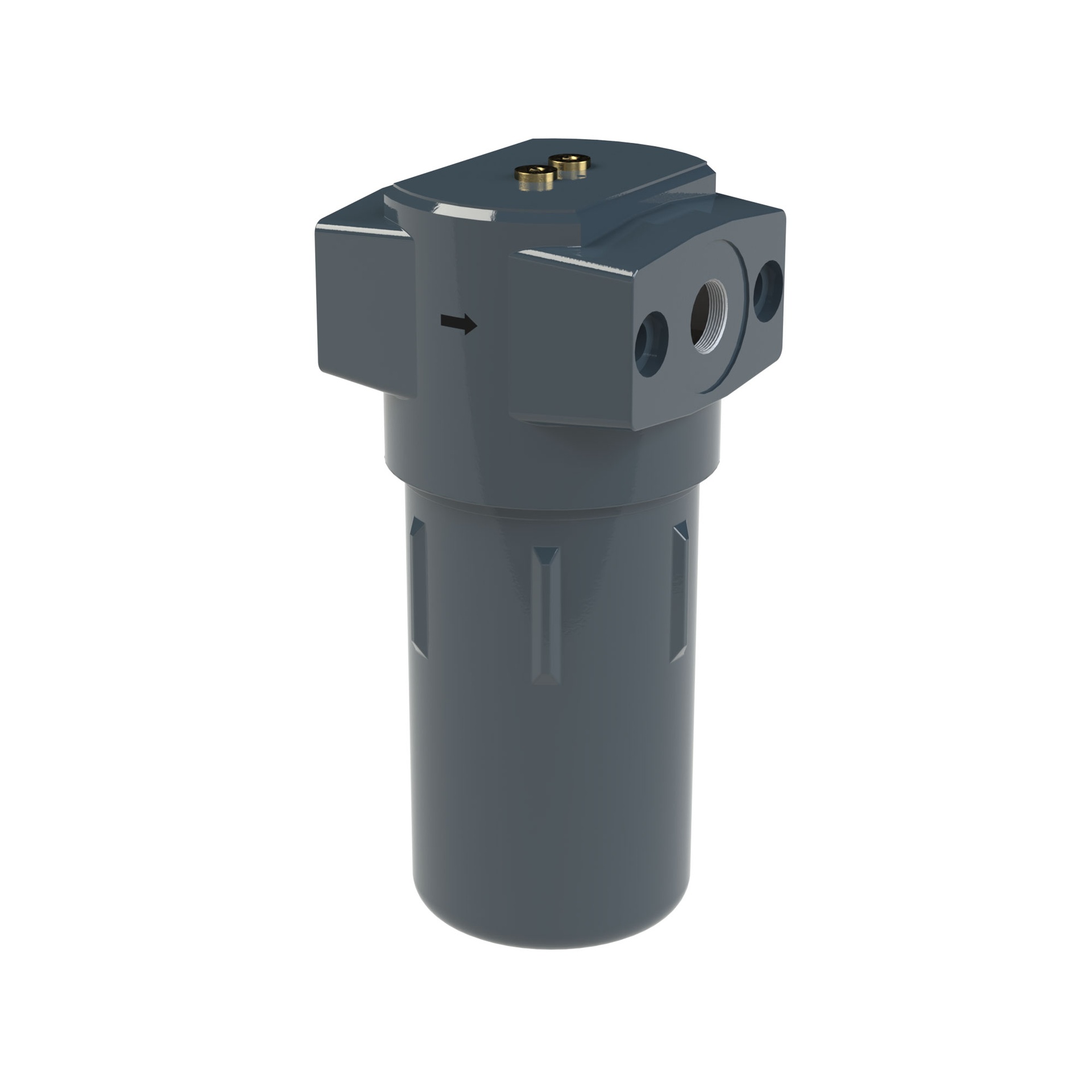

RIEGLER activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 1/2
Type number: FSPA.G12.OM
EAN: 4047322786768
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter with differential pressure gauge, 0.01 µm, G1/4, inlet pressure 4 - 16 bar, temperature range 1.5 °C to 80 °C
| Display range of the | 1 bar |
| Execution | without differential pressure gauge |
| Flow_1 | 1170 l/min |
| Steam trap | semi-automatic drain valve |
| D | 245 mm |
| A | 87 mm |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Display range of the | 0 bar |
| Residual oil content | 0.003 mg/m³ |
| Inlet pressure max. | 16 bar |
| C | 21 mm |
| Inlet pressure min. | 4 bar |
| Temperature range min. | 5 °C |
| Temperature range max. | 50 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Filter element | Activated carbon |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Thread | G 1/2 |
| Class name | PLUS |
