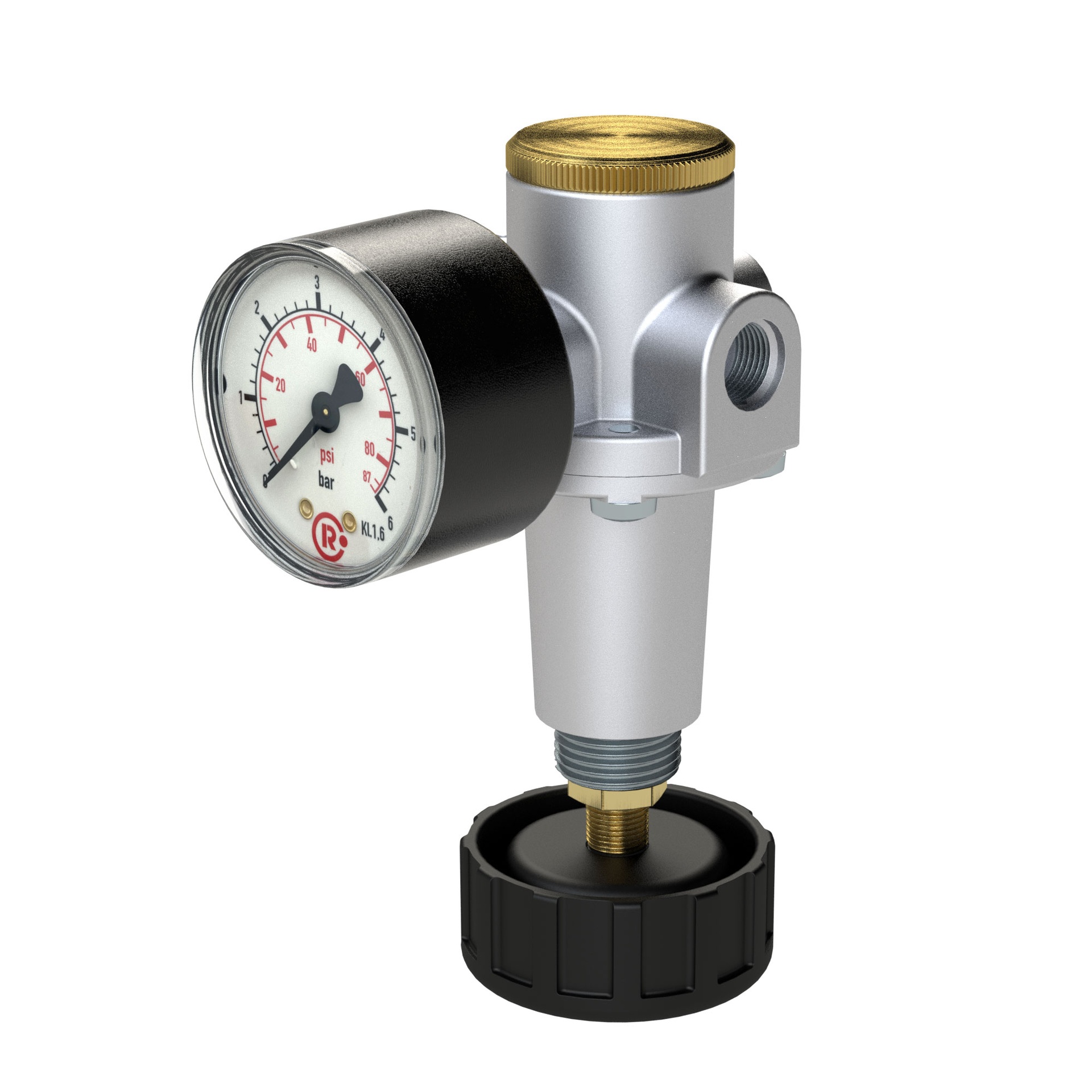

RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.1 - 3 bar
Typennummer: DRK.G14.BG1.0,1-3B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Constant pressure regulator incl. pressure gauge, size 1, G 1/4, input pressure max. 40 bar, medium temp. max. 60 °C, 0.1 - 3 bar
| fat used | Berulub OX 100 EP |
| D | 104 mm |
| Flow_1 | 1750 l/min |
| Control range max. | 3 bar |
| BG | 1 |
| DN | 8 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.1 bar |
| B | 134 mm |
| C | 30 mm |
| Inlet pressure max. | 40 bar |
| A | 54 mm |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 1/4 |
| Sealing material | NBR |
| Series | Standard |
| Housing | Zinc die casting |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[147479] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.2 - 6 bar](/web/image/product.template/284320/image_128/%5B147479%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%201-4%2C%200.2%20-%206%20bar?unique=1cf7ecd)
|
Typennummer: DRK.G14.BG1.0,2-6B |
66.75 € | |
![[147480] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/284321/image_128/%5B147480%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=efee3af)
|
Typennummer: DRK.G14.BG1.0,5-10B |
66.75 € | |
![[147481] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/284322/image_128/%5B147481%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=270a9c9)
|
Typennummer: DRK.G14.BG1.0,5-16B |
66.75 € | |
![[147483] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.1 - 3 bar](/web/image/product.template/284324/image_128/%5B147483%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%203-8%2C%200.1%20-%203%20bar?unique=e2d4386)
|
Typennummer: DRK.G38.BG1.0,1-3B |
66.75 € | |
![[147484] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.2 - 6 bar](/web/image/product.template/284325/image_128/%5B147484%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%203-8%2C%200.2%20-%206%20bar?unique=c2415d8)
|
Typennummer: DRK.G38.BG1.0,2-6B |
66.75 € | |
![[147485] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/284326/image_128/%5B147485%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=0f1e3f1)
|
Typennummer: DRK.G38.BG1.0,5-10B |
66.75 € | |
![[147486] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/284327/image_128/%5B147486%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=aaf1fef)
|
Typennummer: DRK.G38.BG1.0,5-16B |
66.75 € | |
![[147493] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 1/2, 0.1 - 3 bar](/web/image/product.template/284334/image_128/%5B147493%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%201-2%2C%200.1%20-%203%20bar?unique=5f48afa)
|
Typennummer: DRK.G12.BG2.0,1-3B |
73.89 € | |
![[147494] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 1/2, 0.2 - 6 bar](/web/image/product.template/284335/image_128/%5B147494%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%201-2%2C%200.2%20-%206%20bar?unique=74bf0f5)
|
Typennummer: DRK.G12.BG2.0,2-6B |
73.89 € | |
![[147495] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 1/2, 0.5 - 10 bar](/web/image/product.template/284336/image_128/%5B147495%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=14b75b3)
|
Typennummer: DRK.G12.BG2.0,5-10B |
73.89 € | |
![[147496] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 1/2, 0.5 - 16 bar](/web/image/product.template/284337/image_128/%5B147496%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=9e7988c)
|
Typennummer: DRK.G12.BG2.0,5-16B |
73.89 € | |
![[147488] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 3/8, 0.1 - 3 bar](/web/image/product.template/284329/image_128/%5B147488%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%203-8%2C%200.1%20-%203%20bar?unique=64c5aaa)
|
Typennummer: DRK.G38.BG2.0,1-3B |
73.89 € | |
![[147489] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 3/8, 0.2 - 6 bar](/web/image/product.template/284330/image_128/%5B147489%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%203-8%2C%200.2%20-%206%20bar?unique=d9acf4e)
|
Typennummer: DRK.G38.BG2.0,2-6B |
73.89 € | |
![[147490] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 3/8, 0.5 - 10 bar](/web/image/product.template/284331/image_128/%5B147490%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=8a7a092)
|
Typennummer: DRK.G38.BG2.0,5-10B |
73.89 € | |
![[147491] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 3/8, 0.5 - 16 bar](/web/image/product.template/284332/image_128/%5B147491%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=d381cfb)
|
Typennummer: DRK.G38.BG2.0,5-16B |
73.89 € | |
![[147508] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1, 0.1 - 3 bar](/web/image/product.template/284347/image_128/%5B147508%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201%2C%200.1%20-%203%20bar?unique=0b1cb45)
|
Typennummer: DRK.G1.BG3.0,1-3B |
102.53 € | |
![[147509] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1, 0.2 - 6 bar](/web/image/product.template/284348/image_128/%5B147509%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201%2C%200.2%20-%206%20bar?unique=2744c15)
|
Typennummer: DRK.G1.BG3.0,2-6B |
102.53 € | |
![[147510] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1, 0.5 - 10 bar](/web/image/product.template/284349/image_128/%5B147510%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201%2C%200.5%20-%2010%20bar?unique=d9dcfaa)
|
Typennummer: DRK.G1.BG3.0,5-10B |
102.53 € | |
![[147511] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1, 0.5 - 16 bar](/web/image/product.template/284350/image_128/%5B147511%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201%2C%200.5%20-%2016%20bar?unique=af3727f)
|
Typennummer: DRK.G1.BG3.0,5-16B |
102.53 € | |
![[147498] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.1 - 3 bar](/web/image/product.template/284339/image_128/%5B147498%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201-2%2C%200.1%20-%203%20bar?unique=a2db917)
|
Typennummer: DRK.G12.BG3.0,1-3B |
86.35 € | |
![[147499] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.2 - 6 bar](/web/image/product.template/284340/image_128/%5B147499%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201-2%2C%200.2%20-%206%20bar?unique=2a24eb1)
|
Typennummer: DRK.G12.BG3.0,2-6B |
86.35 € | |
![[147500] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.5 - 10 bar](/web/image/product.template/284341/image_128/%5B147500%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=cf156bc)
|
Typennummer: DRK.G12.BG3.0,5-10B |
86.35 € | |
![[147501] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.5 - 16 bar](/web/image/product.template/284342/image_128/%5B147501%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=3f89920)
|
Typennummer: DRK.G12.BG3.0,5-16B |
86.35 € | |
![[147503] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 3/4, 0.1 - 3 bar](/web/image/product.template/284343/image_128/%5B147503%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%203-4%2C%200.1%20-%203%20bar?unique=cb6d5bd)
|
Typennummer: DRK.G34.BG3.0,1-3B |
102.53 € | |
![[147504] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 3/4, 0.2 - 6 bar](/web/image/product.template/284344/image_128/%5B147504%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%203-4%2C%200.2%20-%206%20bar?unique=029565e)
|
Typennummer: DRK.G34.BG3.0,2-6B |
102.53 € | |
![[147505] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 3/4, 0.5 - 10 bar](/web/image/product.template/284345/image_128/%5B147505%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=a1d82c3)
|
Typennummer: DRK.G34.BG3.0,5-10B |
102.53 € | |
![[147506] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 3/4, 0.5 - 16 bar](/web/image/product.template/284346/image_128/%5B147506%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=ad72cc9)
|
Typennummer: DRK.G34.BG3.0,5-16B |
102.53 € | |
![[147518] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 1, 0.1 - 3 bar](/web/image/product.template/284356/image_128/%5B147518%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%201%2C%200.1%20-%203%20bar?unique=7a6f6f4)
|
Typennummer: DRK.G1.BG4.0,1-3B |
203.19 € | |
![[147519] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 1, 0.2 - 6 bar](/web/image/product.template/284357/image_128/%5B147519%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%201%2C%200.2%20-%206%20bar?unique=ec1b996)
|
Typennummer: DRK.G1.BG4.0,2-6B |
203.19 € | |
![[147520] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 1, 0.5 - 10 bar](/web/image/product.template/284358/image_128/%5B147520%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%201%2C%200.5%20-%2010%20bar?unique=064c8d2)
|
Typennummer: DRK.G1.BG4.0,5-10B |
203.19 € | |
![[147513] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 3/4, 0.1 - 3 bar](/web/image/product.template/284351/image_128/%5B147513%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%203-4%2C%200.1%20-%203%20bar?unique=5c38b15)
|
Typennummer: DRK.G34.BG4.0,1-3B |
203.19 € | |
![[147514] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 3/4, 0.2 - 6 bar](/web/image/product.template/284352/image_128/%5B147514%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%203-4%2C%200.2%20-%206%20bar?unique=86b93f4)
|
Typennummer: DRK.G34.BG4.0,2-6B |
203.19 € | |
![[147515] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 3/4, 0.5 - 10 bar](/web/image/product.template/284353/image_128/%5B147515%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=2386d4b)
|
Typennummer: DRK.G34.BG4.0,5-10B |
203.19 € | |
![[147516] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 3/4, 0.5 - 16 bar](/web/image/product.template/284354/image_128/%5B147516%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=677c560)
|
Typennummer: DRK.G34.BG4.0,5-16B |
203.19 € | |
![[147528] RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/2, 0.1 - 3 bar](/web/image/product.template/284365/image_128/%5B147528%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%205%2C%20G%201%201-2%2C%200.1%20-%203%20bar?unique=e11550d)
|
Typennummer: DRK.G112.BG5.0,1-3B |
359.57 € | |
![[147529] RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/2, 0.2 - 6 bar](/web/image/product.template/284366/image_128/%5B147529%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%205%2C%20G%201%201-2%2C%200.2%20-%206%20bar?unique=6e18353)
|
Typennummer: DRK.G112.BG5.0,2-6B |
359.57 € | |
![[147530] RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/2, 0.5 - 10 bar](/web/image/product.template/284367/image_128/%5B147530%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%205%2C%20G%201%201-2%2C%200.5%20-%2010%20bar?unique=dbb4a4a)
|
Typennummer: DRK.G112.BG5.0,5-10B |
359.57 € | |
![[147531] RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/2, 0.5 - 16 bar](/web/image/product.template/284368/image_128/%5B147531%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%205%2C%20G%201%201-2%2C%200.5%20-%2016%20bar?unique=6beee4a)
|
Typennummer: DRK.G112.BG5.0,5-16B |
359.57 € | |
![[147523] RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/4, 0.1 - 3 bar](/web/image/product.template/284360/image_128/%5B147523%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%205%2C%20G%201%201-4%2C%200.1%20-%203%20bar?unique=c140dc8)
|
Typennummer: DRK.G114.BG5.0,1-3B |
359.57 € | |
![[147524] RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/4, 0.2 - 6 bar](/web/image/product.template/284361/image_128/%5B147524%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%205%2C%20G%201%201-4%2C%200.2%20-%206%20bar?unique=71a8139)
|
Typennummer: DRK.G114.BG5.0,2-6B |
359.57 € | |
![[147525] RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/4, 0.5 - 10 bar](/web/image/product.template/284362/image_128/%5B147525%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%205%2C%20G%201%201-4%2C%200.5%20-%2010%20bar?unique=4c96e53)
|
Typennummer: DRK.G114.BG5.0,5-10B |
359.57 € | |
![[147526] RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/4, 0.5 - 16 bar](/web/image/product.template/284363/image_128/%5B147526%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%205%2C%20G%201%201-4%2C%200.5%20-%2016%20bar?unique=2e1c57f)
|
Typennummer: DRK.G114.BG5.0,5-16B |
359.57 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[147534] RIEGLER wear parts kit constant pressure regulator, BG 1, max. control pressure 3-16bar](/web/image/product.template/284371/image_128/%5B147534%5D%20RIEGLER%20wear%20parts%20kit%20constant%20pressure%20regulator%2C%20BG%201%2C%20max.%20control%20pressure%203-16bar?unique=dd531c8)
|
Typennummer: VTSDRK.BG1.3-16B |
9.20 € | |
