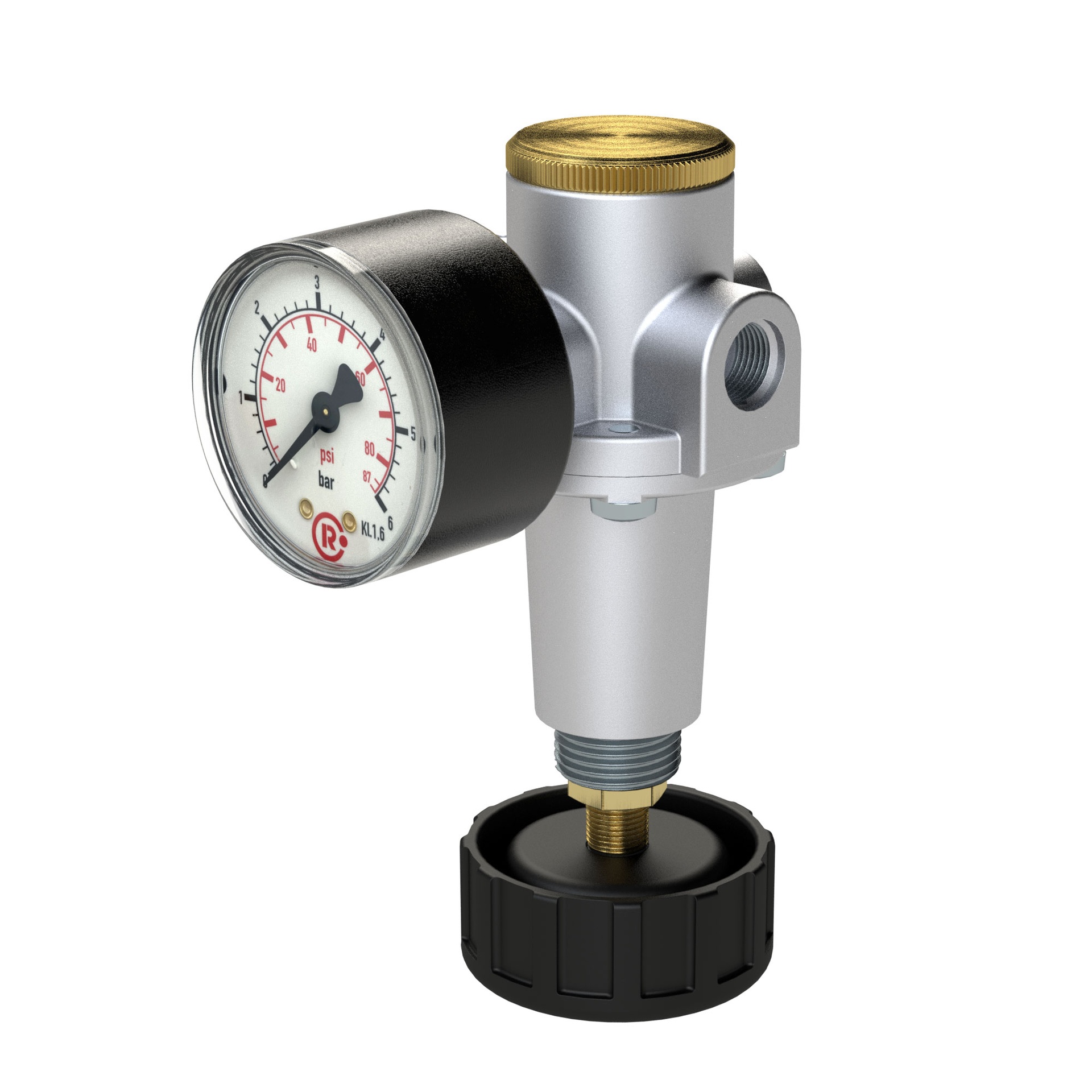

RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.2 - 6 bar
Type number: DRK.G38.BG1.0,2-6B
EAN: 4047322791984
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Unmistakable insertion nozzle NW 7.8, MS blank, nozzle LW 6, green, operating pressure 0-35 bar, medium/ambient temperature -20°C to 100°C
| fat used | Berulub OX 100 EP |
| D | 104 mm |
| Flow_1 | 1750 l/min |
| Control range max. | 6 bar |
| BG | 1 |
| DN | 10 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.2 bar |
| B | 134 mm |
| C | 30 mm |
| Inlet pressure max. | 40 bar |
| A | 54 mm |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 3/8 |
| Sealing material | NBR |
| Series | Standard |
| Housing | Zinc die casting |
