RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.5 - 25 bar

https://www.filcom-technik.de/web/image/product.template/284328/image_1920?unique=d372820

Typennummer: DRK.G38.BG1.0,5-25B

76.83 € 76.83 EUR 76.83 € VAT Included

107.60 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

147487

EAN :

4047322792011

Category :

Pressure Regulators

Weight :

0.01 kg

Constant pressure regulator incl. pressure gauge, BG 1, G 3/8, PE max. 40 bar, medium temperature max. 60 °C, control range 0.5 - 25 bar

fat used Berulub OX 100 EP
Flow 1 1750 l/min
Control range max. 25 bar
BG 1
DN 10
Ambient temperature min. -10 °C
Medium temperature min. -10 °C
Control range min. 0.5 bar

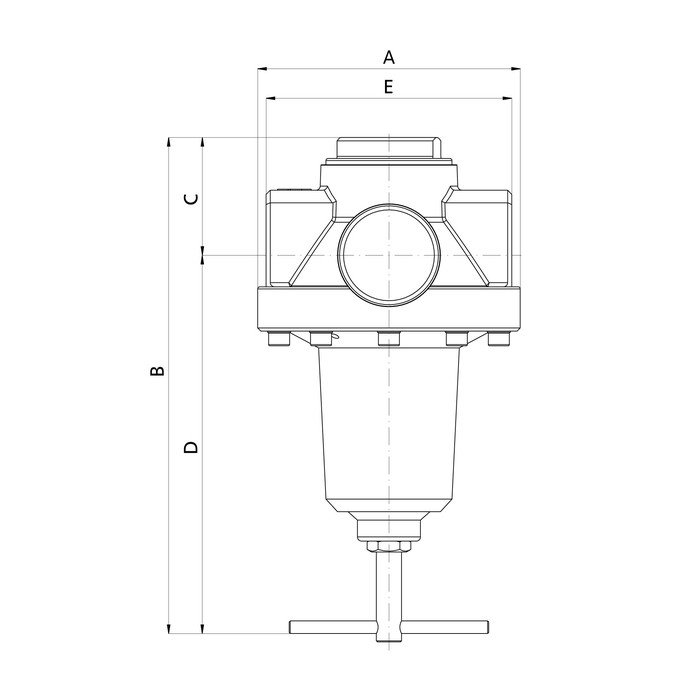

B 123 mm
C 30 mm
Inlet pressure max. 40 bar
A 54 mm
Ambient temperature max. 60 °C
Medium temperature max. 60 °C
D 93 mm
Flow rate measurement with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar
Class name EASY
Thread G 3/8
Sealing material NBR
Series Standard
Housing Zinc die casting
