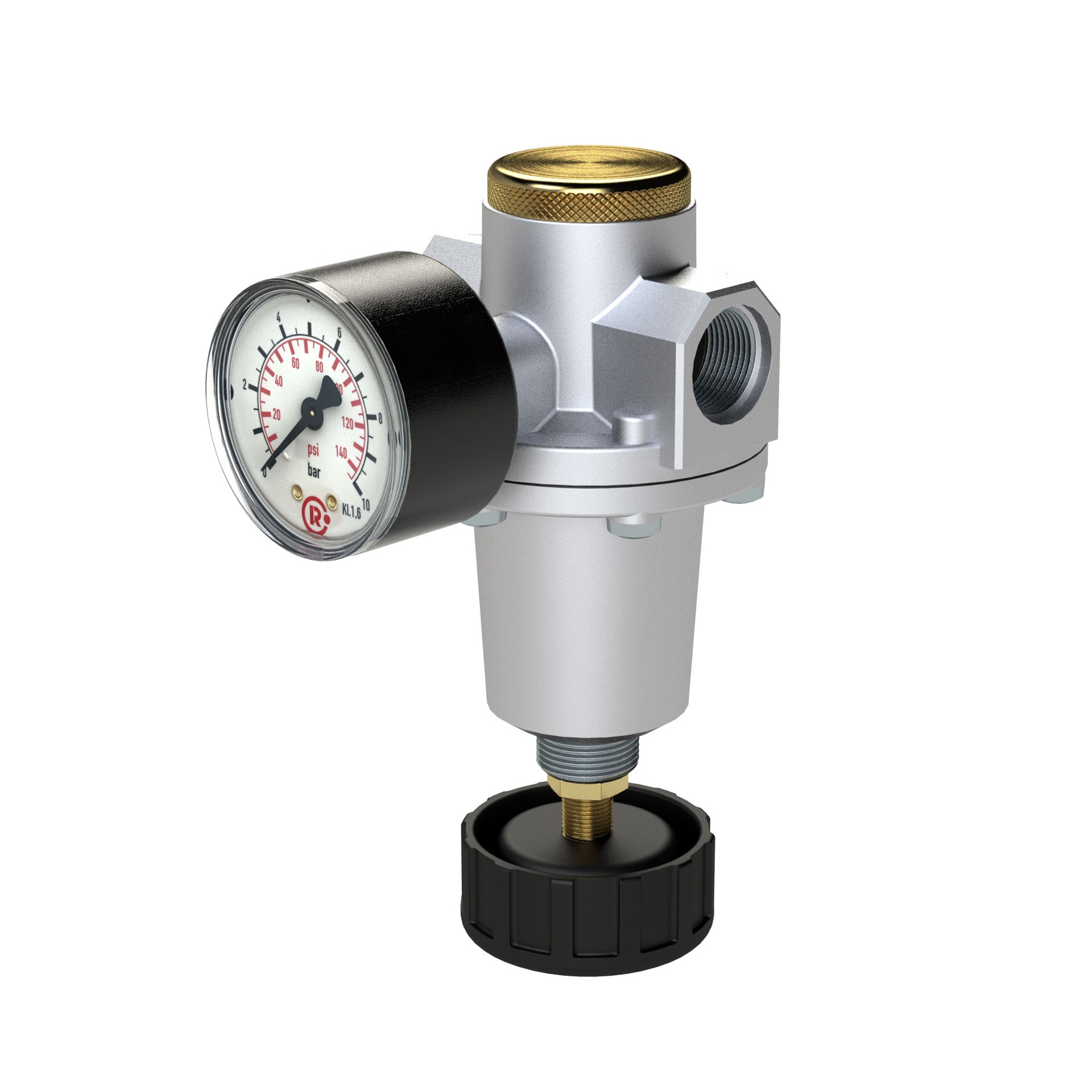

RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 3/8, 0.5 - 10 bar
Typennummer: DRK.G38.BG2.0,5-10B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Constant pressure regulator incl. pressure gauge, size 2, G 3/8, input pressure max. 40 bar, medium temp. max. 60 °C, 0.5 - 10 bar
| D | 119 mm |
| Flow_1 | 2200 l/min |
| fat used | Berulub OX 100 EP |
| Control range max. | 10 bar |
| BG | 2 |
| DN | 10 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.5 bar |
| B | 153 mm |
| C | 34 mm |
| Inlet pressure max. | 40 bar |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| A | 70 mm |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 3/8 |
| Sealing material | NBR |
| Series | Standard |
| Housing | Zinc die casting |
