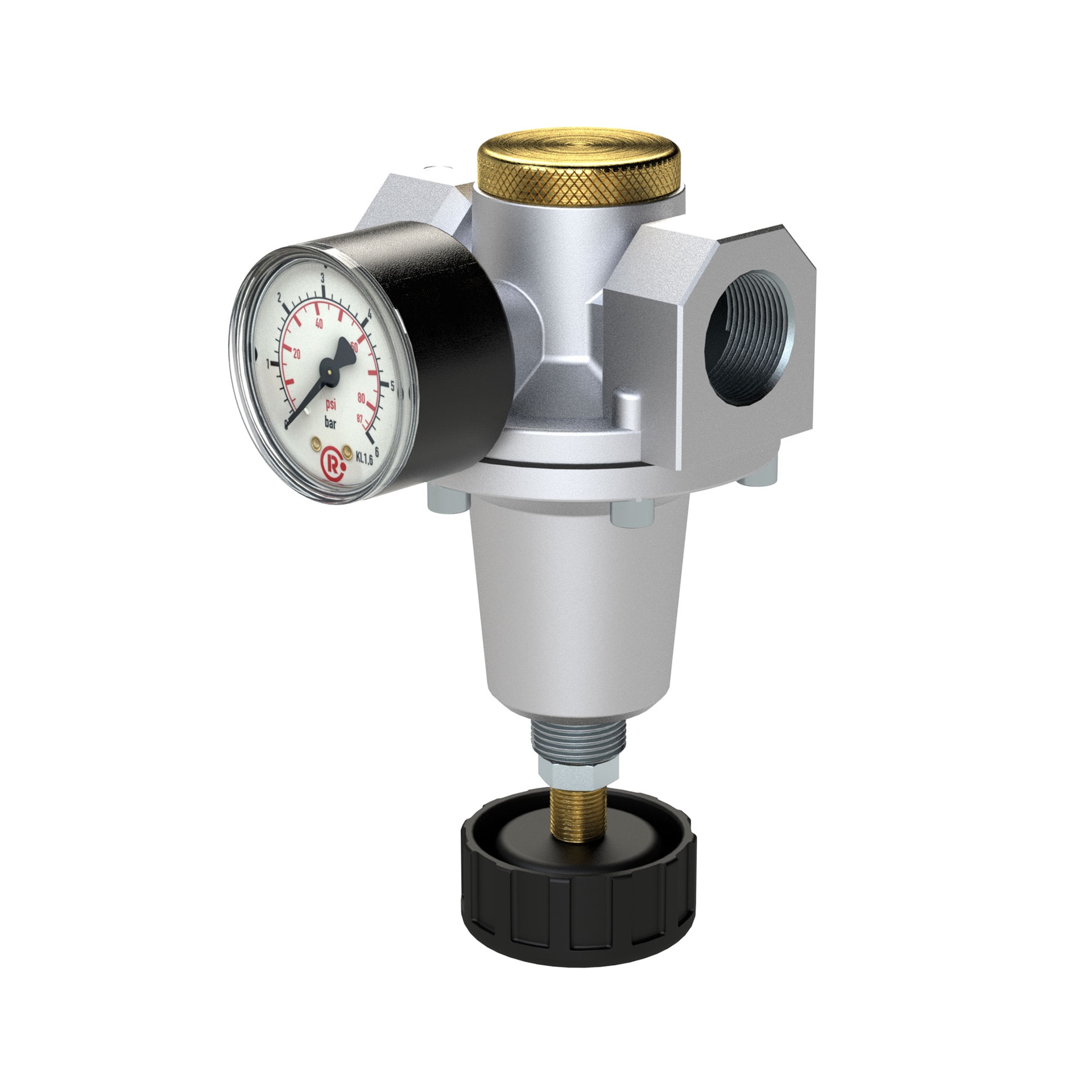

RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 3/4, 0.1 - 3 bar
Type number: DRK.G34.BG3.0,1-3B
EAN: 4047322792172
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Large pressure regulator with 2 pressure gauges for inlet and outlet pressure, G 1 1/2, control range 0.5 - 25 bar, inlet pressure max. 40 bar
| Flow_1 | 5000 l/min |
| fat used | Berulub OX 100 EP |
| Control range max. | 3 bar |
| BG | 3 |
| DN | 20 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.1 bar |
| D | 136 mm |
| B | 167 mm |
| C | 31 mm |
| Inlet pressure max. | 40 bar |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| A | 90 mm |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 3/4 |
| Sealing material | NBR |
| Series | Standard |
| Housing | Zinc die casting |
| Spring cover | Zinc die casting |
