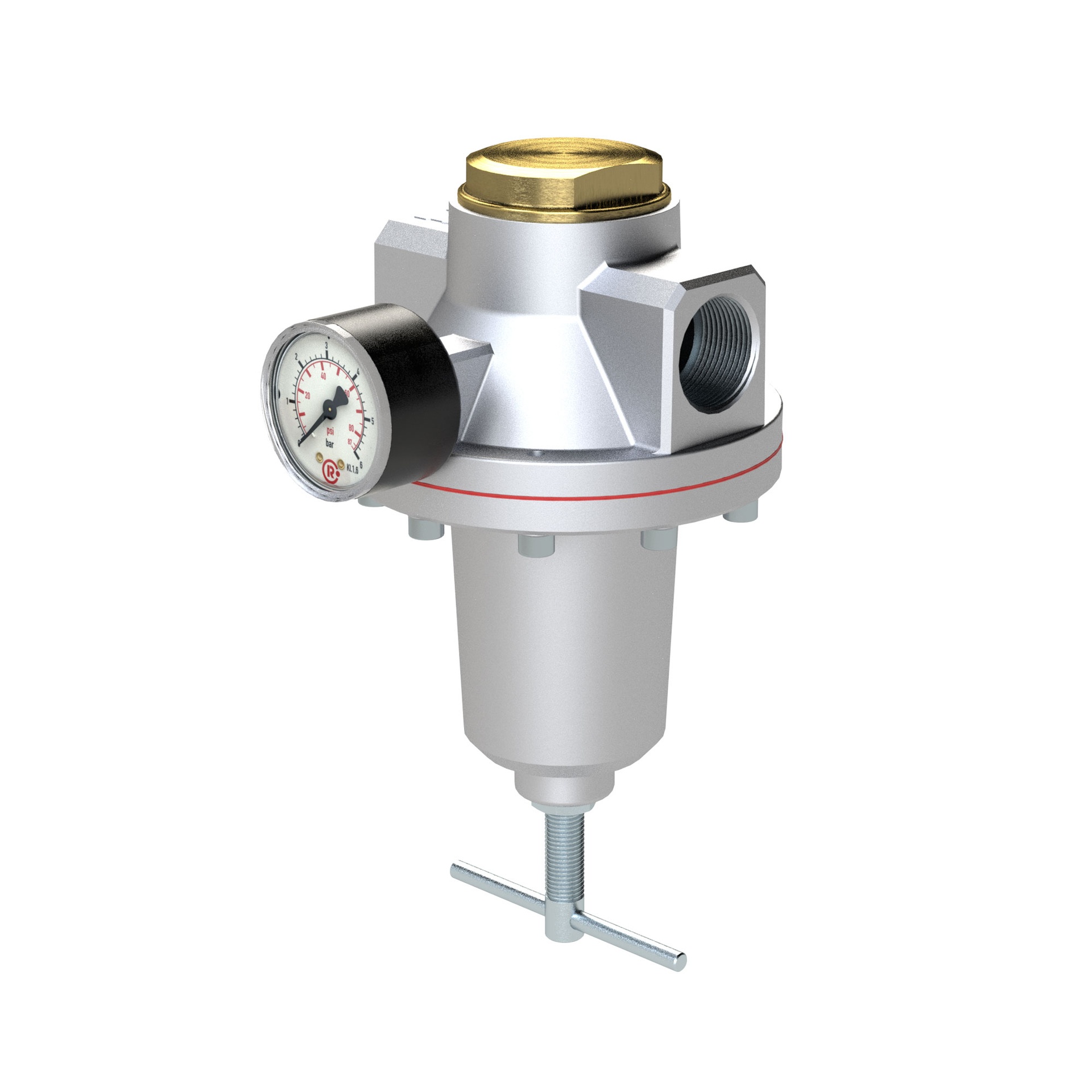

RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 3/4, 0.2 - 6 bar
Typennummer: DRK.G34.BG4.0,2-6B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Constant pressure regulator incl. pressure gauge, BG 4, G 3/4, PE max. 40 bar, medium temperature max. 60 °C, control range 0.2 - 6 bar
| E | 117 mm |
| fat used | Berulub OX 100 EP |
| Spring cover | Die-cast aluminum |
| Flow_1 | 10000 l/min |
| Control range max. | 6 bar |
| BG | 4 |
| DN | 20 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.2 bar |
| A | 125 mm |
| D | 190 mm |
| B | 238 mm |
| Inlet pressure max. | 40 bar |
| C | 48 mm |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| Housing | Die-cast aluminum |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 3/4 |
| Sealing material | NBR |
| Series | Standard |
